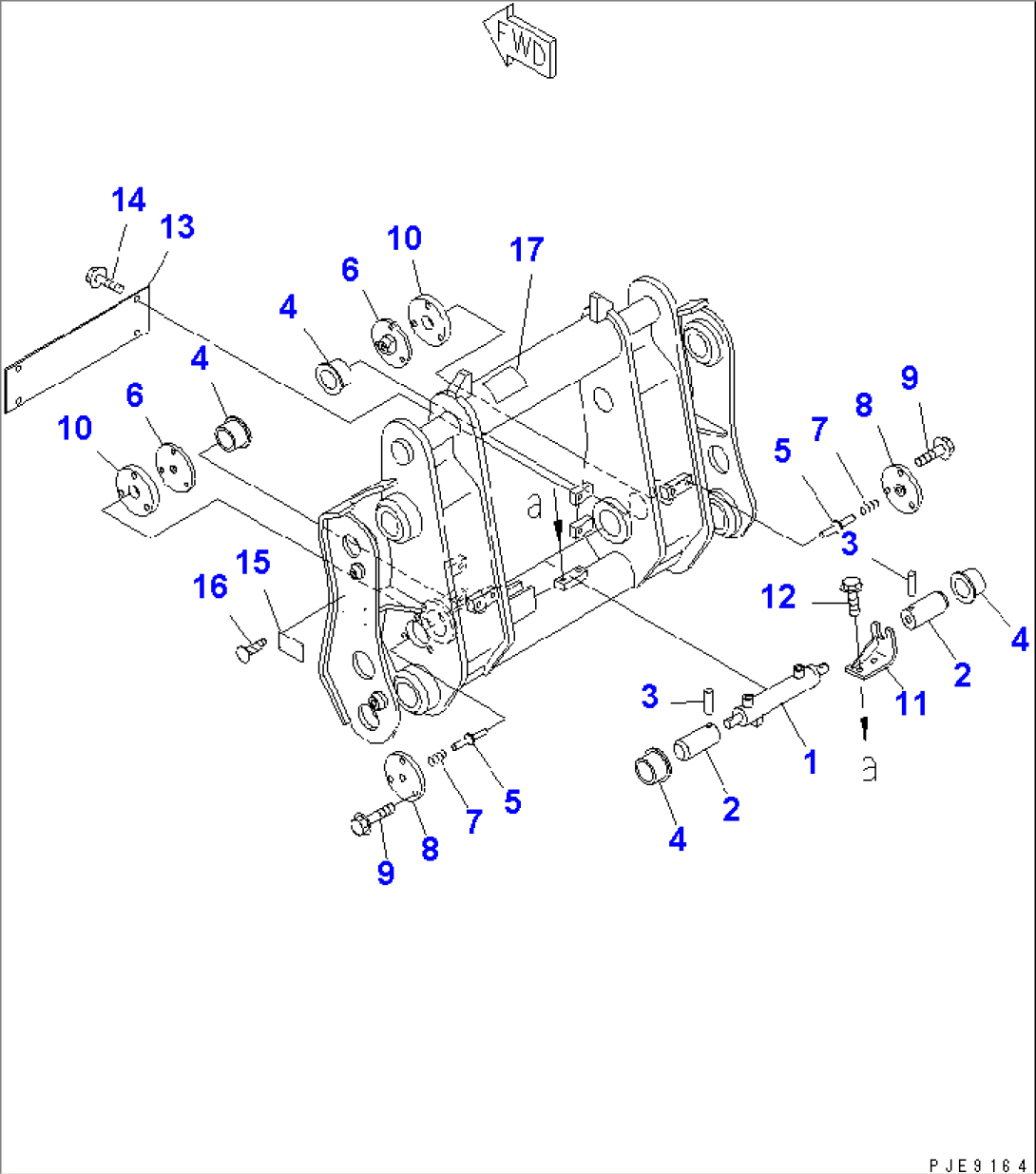

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (707-00-02450) | CYLINDER ASS'Y | 50001- | |
| 2 | 418-879-2620 | PIN | 50001- | |
| 3 | 04022-10045 | PIN,DOWEL | 50001- | |
| 4 | 418-879-2630 | BUSHING | 50001- | |
| 5 | 418-879-2640 | PIN | 50001- | |
| 6 | 418-879-2650 | PIN | 50001- | |
| 7 | 23B-15-16241 | SPRING | 50001- | |
| 8 | 418-879-2660 | COVER | 50001- | |
| 9 | 01435-01260 | BOLT | 50001- | |
| 10 | 418-879-2670 | SPACER | 50001- | |
| 11 | 418-879-2680 | BRACKET | 50001- | |
| 12 | 01435-01225 | BOLT | 50001- | |
| 13 | 418-879-2690 | PLATE | 50001- | |
| 14 | 01435-01230 | BOLT | 50001- | |
| 15 | 09601-00835 | PLATE, NAME | 50001- | |
| 16 | 04418-13060 | SCREW | 50001- | |
| 17 | 418-U77-2210 | PLATE | 50001- |
