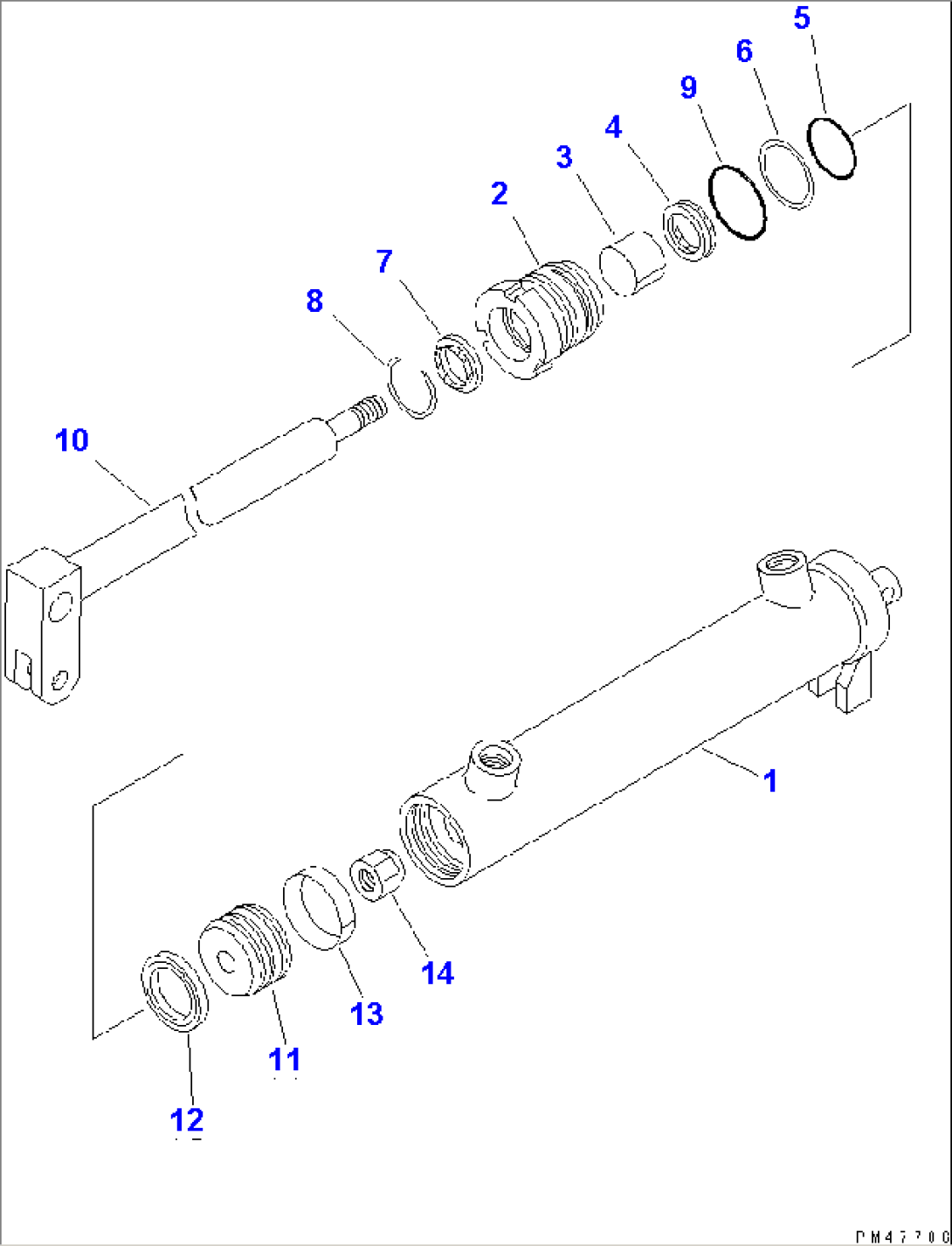

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-04-50190 | CYLINDER ASS'Y,LOCK | 63001-@ | ||
| 1 | 707-11-50190 | CYLINDER | 63001-@ | |
| 2 | 707-29-50801 | HEAD,CYLINDER | 63001-@ | |
| 3 | 07177-02525 | BUSHING | 63001-@ | |
| 4 | 707-51-25030 | PACKING,ROD (KIT) | 63001-@ | |
| 5 | 07000-13045 | O-RING (KIT) | 63001-@ | |
| 6 | 707-35-99500 | RING,BACK-UP (KIT) | 63001-@ | |
| 7 | 707-56-25510 | SEAL,DUST (KIT) | 63001-@ | |
| 8 | 07179-12037 | RING,SNAP | 63001-@ | |
| 9 | 07000-13048 | O-RING (KIT) | 63001-@ | |
| 10 | 707-61-50020 | ROD,PISTON | 63001-@ | |
| 11 | 707-36-50910 | PISTON | 63001-@ | |
| 12 | 707-44-50070 | RING,PISTON (KIT) | 63001-@ | |
| 13 | 10E-63-32390 | RING,WEAR (KIT) | 63001-@ | |
| 14 | 07165-11618 | NUT,NYLON | 63001-@ | |
| SERVICE KIT | ||||
| KIT | 707-99-03420 | SERVICE KIT,LOCK CYLINDER | 63001-@ |
