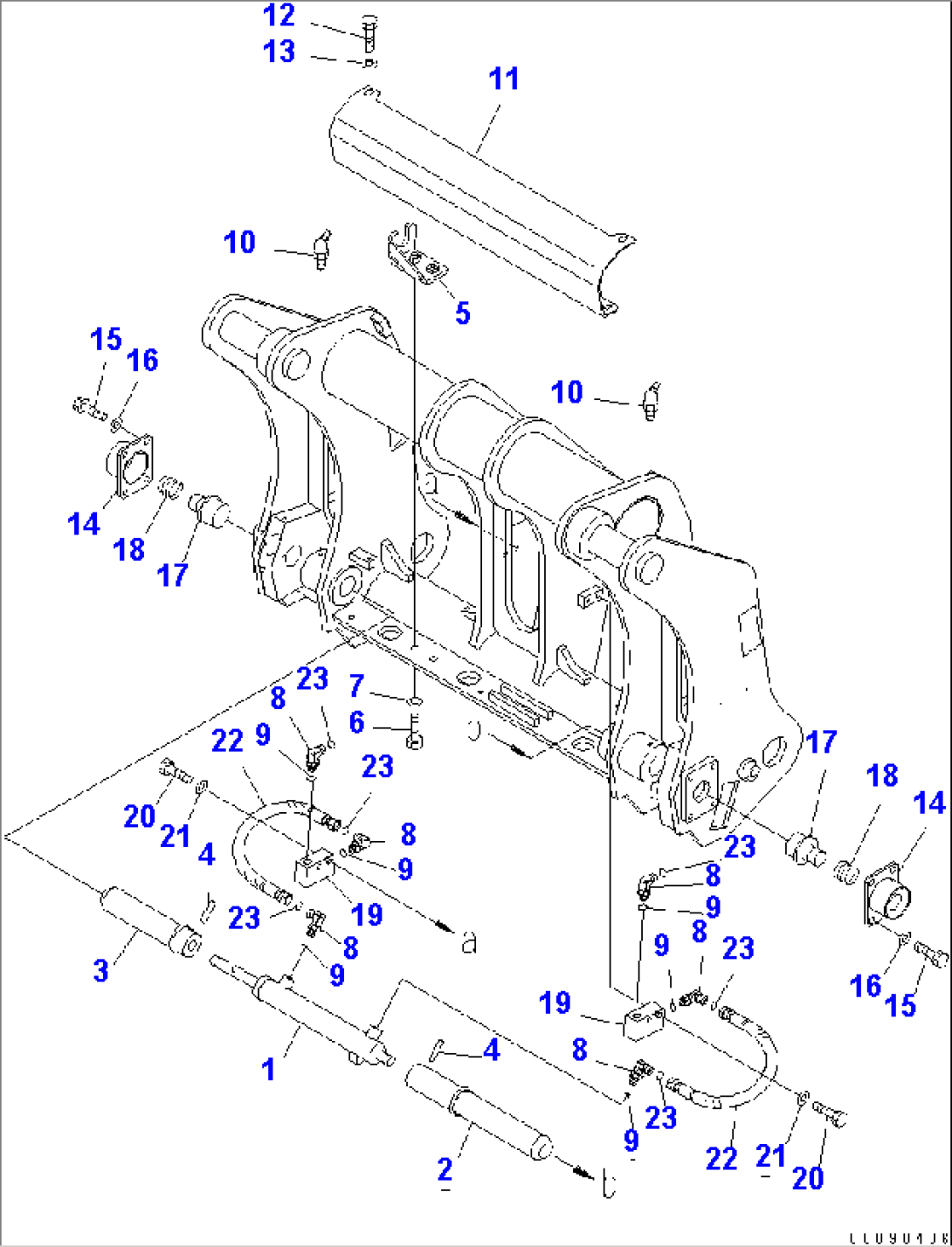

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (707-00-02460) | CYLINDER ASS'Y | 70001- | |
| 2 | 419-T81-4490 | PIN | 70001- | |
| 3 | 419-T81-4510 | PIN | 70001- | |
| 4 | 04022-10045 | PIN | 70001- | |
| 5 | 417-879-2631 | BRACKET | 70001- | |
| 6 | 01010-81235 | BOLT | 70001- | |
| 7 | 01643-31232 | WASHER | 70001- | |
| 8 | 02782-10311 | ELBOW | 70001- | |
| 9 | 07002-11423 | O-RING | 70001- | |
| 10 | 07020-00675 | FITTING | 70001- | |
| 11 | 417-T81-4280 | COVER | 70001- | |
| 12 | 01010-81020 | BOLT | 70001- | |
| 13 | 01643-31032 | WASHER | 70001- | |
| 14 | 419-T81-4551 | BRACKET | 70001- | |
| 15 | 01010-81020 | BOLT | 70001- | |
| 16 | 01643-31032 | WASHER | 70001- | |
| 17 | 418-T91-3370 | PIN | 70001- | |
| 18 | 135-49-23340 | SPRING | 70001- | |
| 19 | 418-T81-4780 | BLOCK | 70001- | |
| 20 | 01010-81050 | BOLT | 70001- | |
| 21 | 01643-31032 | WASHER | 70001- | |
| 22 | 02753-203A4 | HOSE | 70001- | |
| 23 | 02896-11009 | O-RING | 70001- |
