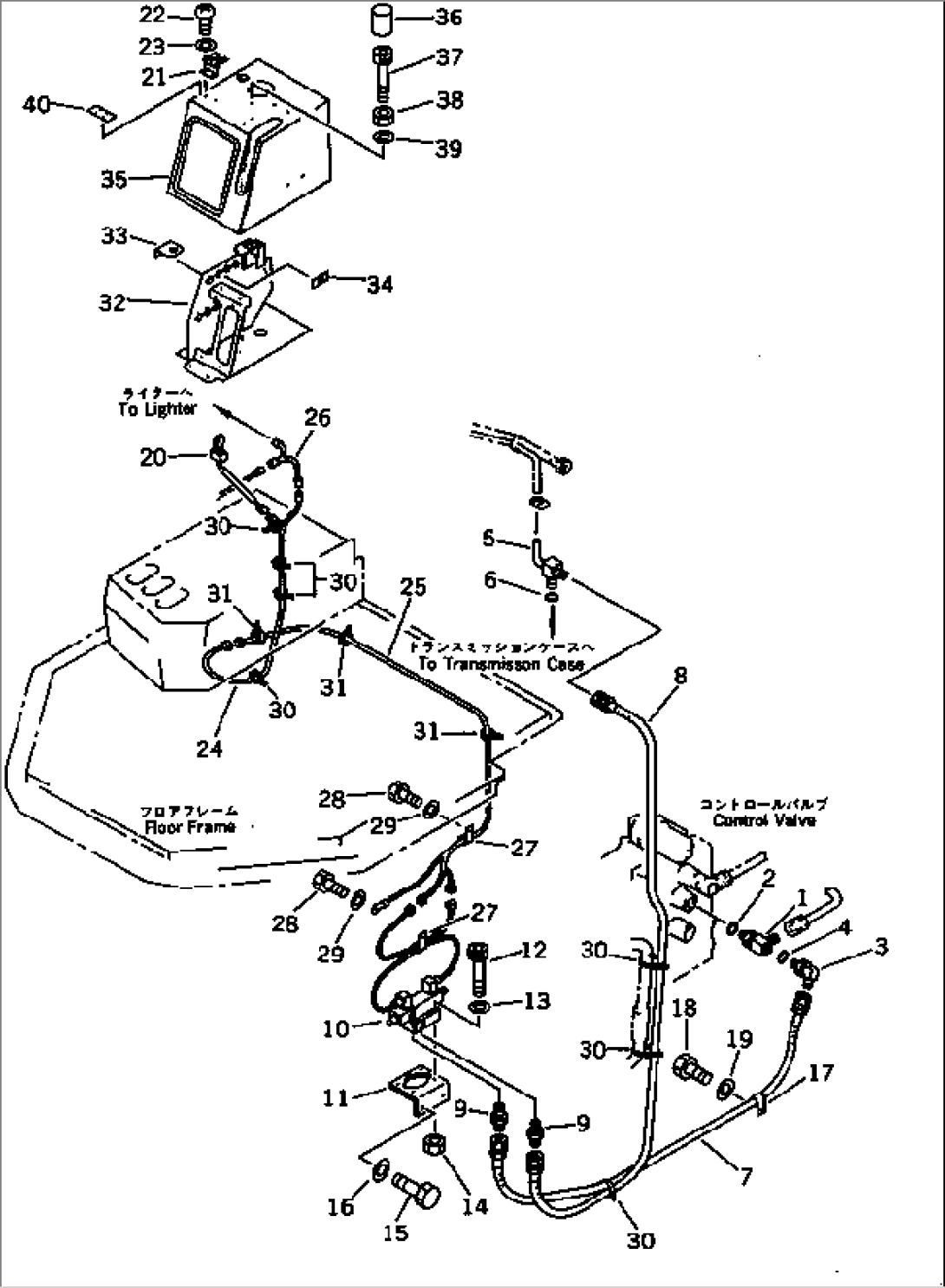

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-879-1510 | ELBOW | 10001- | |
| 2 | 07002-02434 | O-RING | 10001- | |
| 3 | 07235-10315 | ELBOW | 20001- | |
| 4 | 07002-02034 | O-RING | 20001- | |
| 5 | 418-879-1320 | ELBOW | 20001- | |
| 6 | 07002-02434 | O-RING | 20001- | |
| 7 | 07102-20308 | HOSE | 20001- | |
| 8 | 07102-20313 | HOSE | 20001- | |
| 9 | 423-35-12250 | CONNECTOR | 10001- | |
| 10 | (418-879-1680) | VALVE ASS'Y | 10001- | |
| 11 | 418-879-1530 | BRACKET | 10001- | |
| 12 | 01252-30630 | BOLT | 10001- | |
| 13 | 01643-30623 | WASHER | 10001- | |
| 14 | 426-09-11130 | NUT | 10001- | |
| 15 | 01010-51030 | BOLT | 10001- | |
| 16 | 01643-31032 | WASHER | 10001- | |
| 17 | 08036-01814 | CLIP | 10001- | |
| 18 | 01010-51225 | BOLT | 10001- | |
| 19 | 01643-31232 | WASHER | 10001- | |
| 20 | 419-879-1510 | SWITCH | 10001- | |
| 21 | 418-879-1720 | HINGE | 10001- | |
| 22 | 01220-40408 | SCREW | 10001- | |
| 23 | 01641-20405 | WASHER | 10001- | |
| 24 | 418-879-1690 | WIRE ASS'Y | 10001- | |
| 25 | 418-879-1710 | WIRE ASS'Y | 10001- | |
| 26 | 418-V82-1110 | WIRE ASS'Y | 10001- | |
| 27 | 08036-10814 | CLIP | 10001- | |
| 28 | 01010-50816 | BOLT | 10001- | |
| 29 | 01643-30823 | WASHER | 10001- | |
| 30 | 08034-00536 | BAND | 10001- | |
| 31 | 08034-00519 | BAND | 10001- | |
| 32 | 419-06-11133 | BOX | 20001- | |
| 33 | 418-879-1910 | PLATE | 20001- | |
| 34 | 421-54-15520 | CLIP | 20001- | |
| 35 | 418-V82-1131 | BOX,(MODIFIED PARTS) | 20001- | |
| 36 | 417-15-14440 | CAP | 20001- | |
| 37 | 01252-40635 | BOLT | 20001- | |
| 38 | 01580-10605 | NUT | 20001- | |
| 39 | 01643-30623 | WASHER | 20001- | |
| 40 | 416-879-1610 | PLATE, OPERATING | 10001- | |
| 41 | 418-879-1541 | FRAME,REAR(MODIFIED PART)(NOT SHOWN) | 20001- |
