| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-62-42610 | BRACKET | 20001- | |
| 2 | 01010-81220 | BOLT | 20001- | |
| 3 | 01643-31232 | WASHER | 20001- | |
| 4 | 22F-62-12630 | PLATE | 20001- | |
| 5 | 01010-81020 | BOLT | 20001- | |
| 6 | 01643-31032 | WASHER | 20001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc58uu 3 s/n 20001 up (for north america)
- Hydraulic system
- Multi patern (bracket)
Поиск по каталогу

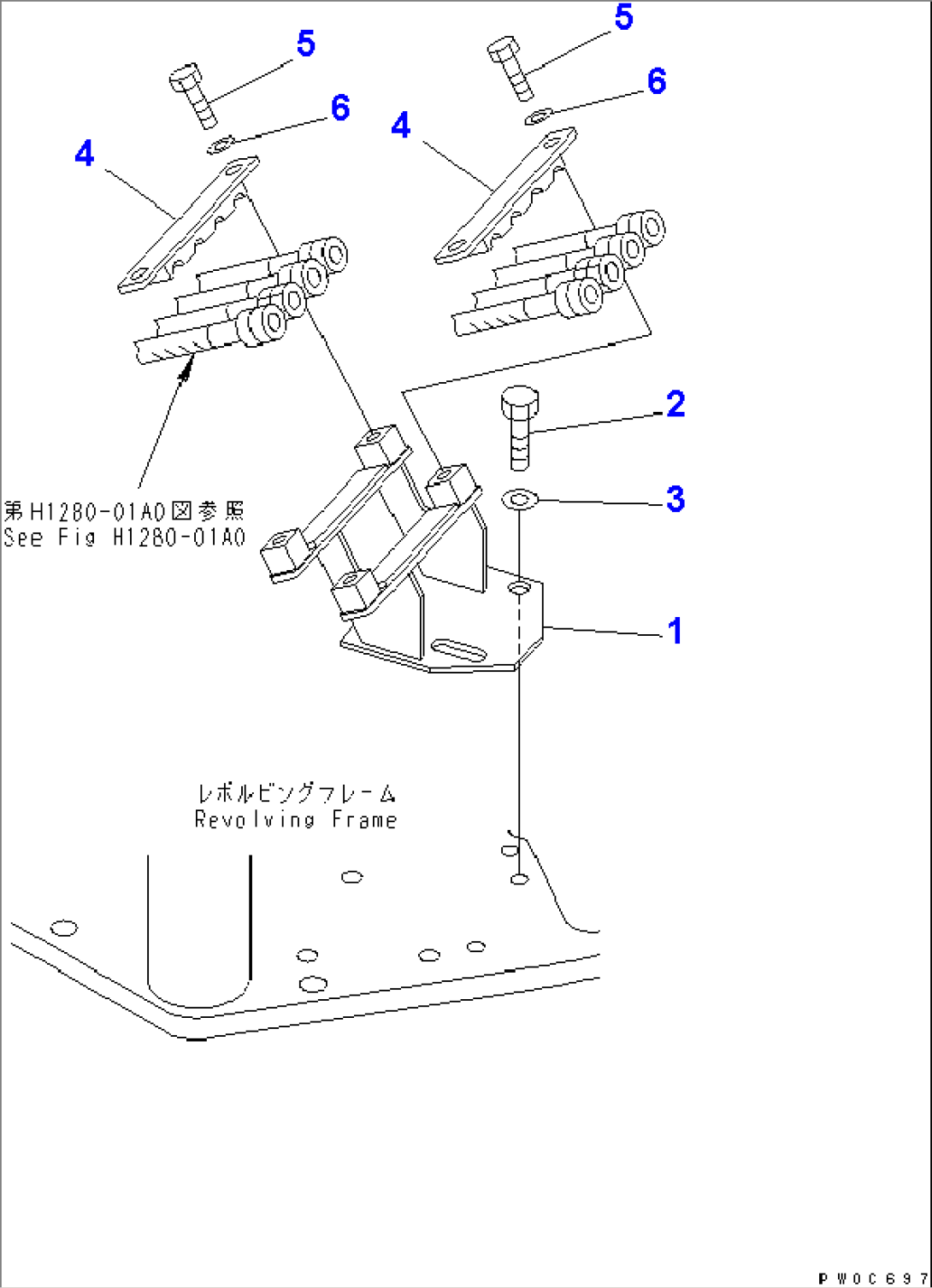

MULTI PATERN (BRACKET)
