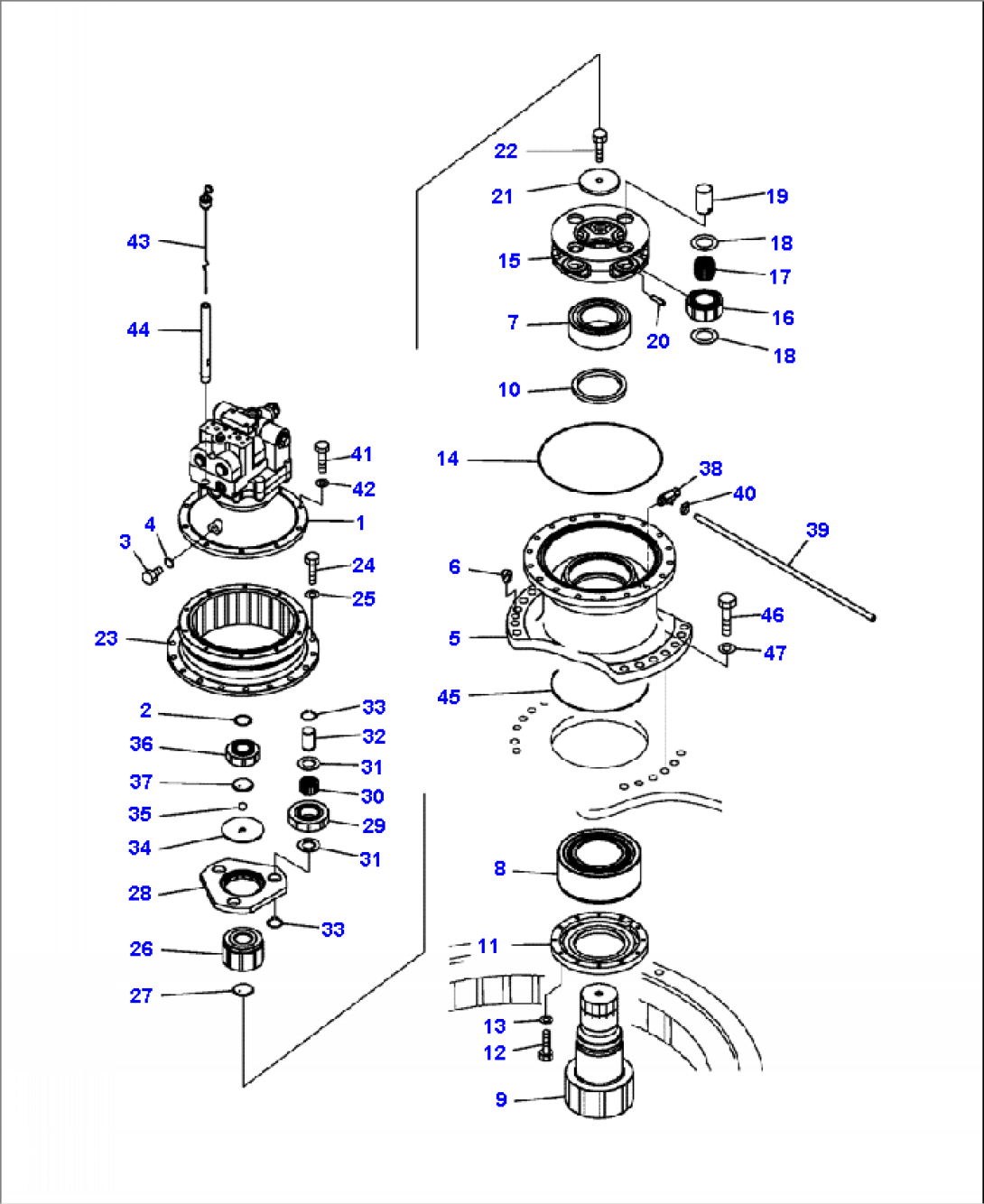

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MOTOR ASSEMBLY (SEE FIG. N1230-01A0) | A87001-- | ||
| 2 | 207-26-71240 | RING | A87001-- | |
| 3 | 07040-11209 | PLUG | A87001-- | |
| 4 | 07002-11223 | O-RING | A87001-- | |
| 5 | 207-26-75110 | CASE | A87001-- | |
| 6 | 07049-02430 | PLUG | A87001-- | |
| 7 | 06000-22222 | BEARING | A87001-- | |
| 8 | 06000-22324 | BEARING | A87001-- | |
| 9 | 207-26-62180 | SHAFT | A87001-- | |
| 10 | 207-26-61210 | SEAL | A87001-- | |
| 11 | 207-26-75120 | COVER | A87001-- | |
| 12 | 01010-81030 | BOLT | A87001-- | |
| 13 | 01643-31032 | WASHER | A87001-- | |
| 14 | 07000-15390 | O-RING | A87001-- | |
| 15 | 207-26-71581 | CARRIER | A87001-- | |
| 16 | 207-26-71540 | GEAR | A87001-- | |
| 17 | 206-26-71270 | BEARING | A87001-- | |
| 18 | 20Y-27-21250 | WASHER | A87001-- | |
| 19 | 20Y-26-21320 | PIN | A87001-- | |
| 20 | 20Y-26-21330 | PIN | A87001-- | |
| 21 | 207-26-54230 | PLATE | A87001-- | |
| 22 | 205-32-51211 | BOLT | A87001-- | |
| 23 | 207-26-71551 | RING GEAR | A87001-- | |
| 24 | 01010-81645 | BOLT | A87001-- | |
| 25 | 01643-31645 | WASHER | A87001-- | |
| 26 | 207-26-71530 | GEAR | A87001-- | |
| 27 | 207-26-71261 | PLATE | A87001-- | |
| 28 | 207-26-71570 | CARRIER | A87001-- | |
| 29 | 207-26-71520 | GEAR | A87001-- | |
| 30 | 22U-26-21320 | BEARING | A87001-- | |
| 31 | 22U-26-21240 | WASHER | A87001-- | |
| 32 | 207-26-71210 | PIN | A87001-- | |
| 33 | 04064-04018 | RING | A87001-- | |
| 34 | 207-26-71250 | HOLDER | A87001-- | |
| 35 | 04260-01270 | BALL | A87001-- | |
| 36 | 207-26-71510 | GEAR | A87001-- | |
| 37 | 207-26-71261 | PLATE | A87001-- | |
| 38 | 144-60-11151 | VALVE | A87001-- | |
| 39 | 07270-21590 | TUBE | A87001-- | |
| 40 | 07281-00197 | CLAMP | A87001-- | |
| 41 | 01010-81240 | BOLT | A87001-- | |
| 42 | 01643-31232 | WASHER | A87001-- | |
| 43 | 207-26-71410 | GAUGE | A87001-- | |
| 44 | 20Y-26-21350 | FILLER | A87001-- | |
| 45 | 07000-15290 | O-RING | A87001-- | |
| 46 | 01010-82475 | BOLT | A87001-- | |
| 47 | 01643-32460 | WASHER | A87001-- |
