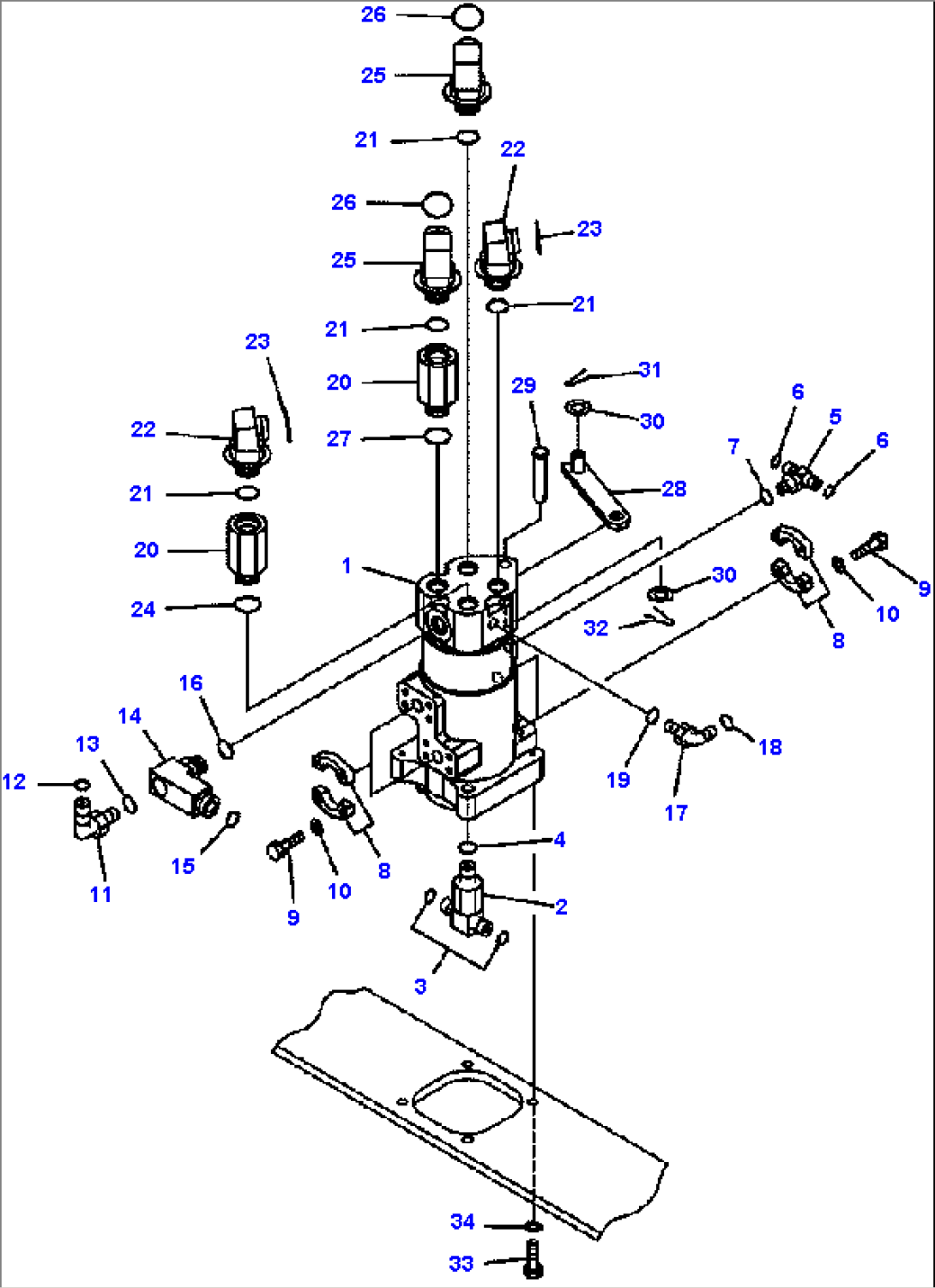

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | SWIVEL JOINT (SEE FIG. N1310-02A0 ) | A85001-- | ||
| OR | ||||
| SWIVEL JOINT (SEE FIG. N1310-02A1 ) | A85001-- | |||
| 2 | 208-62-53110 | TEE | A85001-- | |
| 3 | NOT USED | |||
| 4 | 07002-12434 | O-RING | A85001-- | |
| 5 | 20Y-62-11780 | TEE | A85001-- | |
| 6 | NOT USED | |||
| 7 | 07002-11423 | O-RING | A85001-- | |
| 8 | 07371-31049 | FLANGE, SPLIT | A85001-- | |
| 9 | 07372-21035 | BOLT | A85001-- | |
| 10 | 01643-51032 | WASHER | A85001-- | |
| 11 | 02782-10522 | ELBOW | A85001-- | |
| 12 | 02896-11015 | O-RING | A85001-- | |
| 13 | 07002-12434 | O-RING | A85001-- | |
| 14 | 207-62-72171 | ELBOW | A85001-- | |
| 15 | 02896-11018 | O-RING | A85001-- | |
| 16 | 07002-12434 | O-RING | A85001-- | |
| 17 | 21W-62-42490 | ELBOW | A85001-- | |
| 18 | 02896-11009 | O-RING | A85001-- | |
| 19 | 07002-11423 | O-RING | A85001-- | |
| 20 | 203-62-63740 | JOINT | A85001-- | |
| 21 | 07002-63334 | O-RING | A85001-- | |
| 22 | 207-62-71410 | ELBOW | A85001-- | |
| 23 | 11Y-62-11980 | O-RING | A85001-- | |
| 24 | 07002-63334 | O-RING | A85001-- | |
| 25 | 21W-62-42640 | ELBOW | A85001-- | |
| 26 | 11Y-62-11980 | O-RING | A85001-- | |
| 27 | 07002-63334 | O-RING | A85001-- | |
| 28 | 207-62-71420 | PLATE | A85001-- | |
| 29 | 22U-62-21870 | PIN | A85001-- | |
| 30 | 01641-21626 | WASHER | A85001-- | |
| 31 | 04050-14025 | PIN | A85001-- | |
| 32 | 22U-62-24420 | PIN | A85001-- | |
| 33 | 01010-81240 | BOLT | A85001-- | |
| 34 | 01643-31232 | WASHER | A85001-- |
