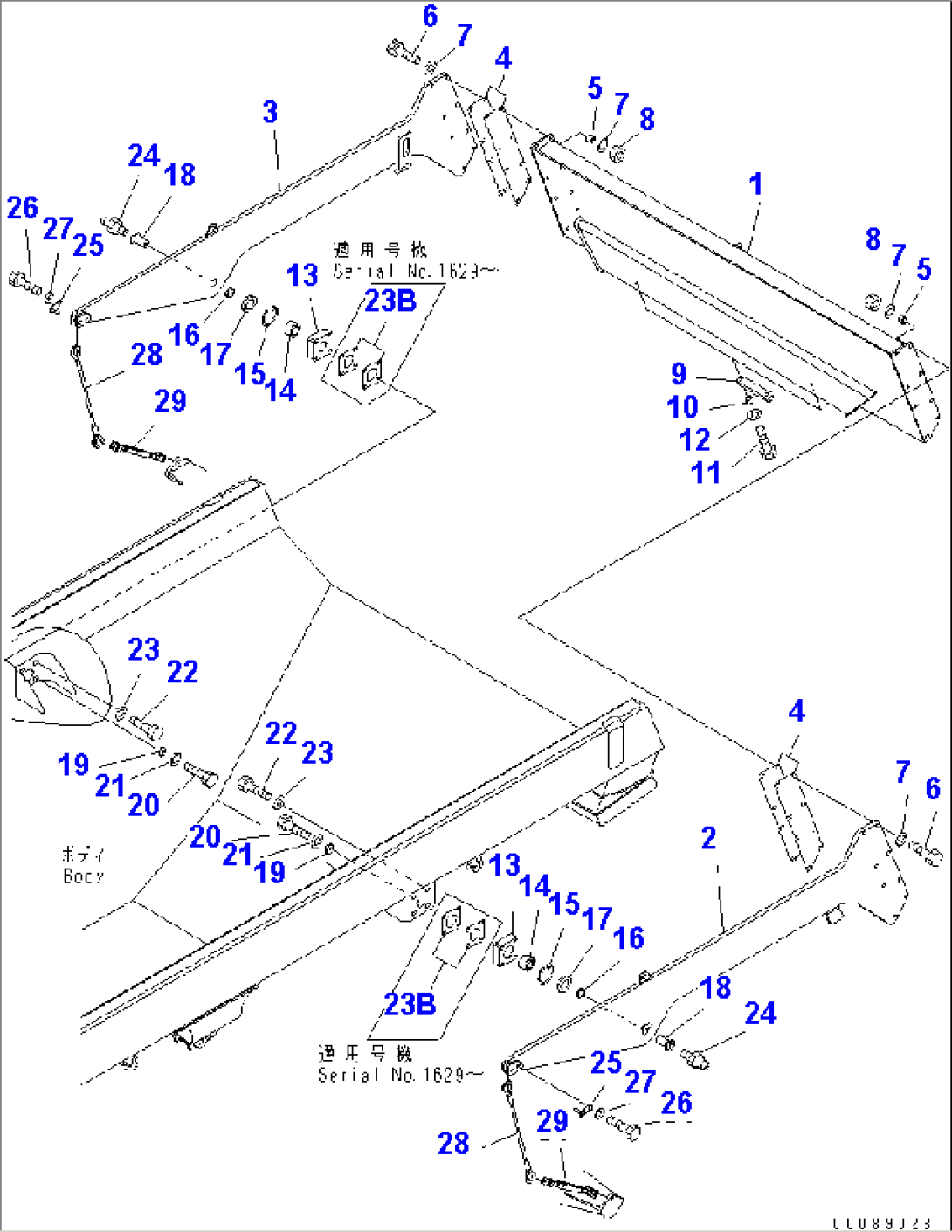

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-83-16111 | GUARD | 1629- | |
| 1 | \0\56D-83-16110 | GUARD | .-1628 | |
| 2 | 56D-83-16120 | ARM,L.H. | .- | |
| 3 | 56D-83-16130 | ARM,R.H. | .- | |
| 4 | 56D-83-16240 | PLATE | .- | |
| 5 | 56D-83-16250 | COLLAR | .- | |
| 6 | 01011-61610 | BOLT | .- | |
| 7 | 01643-31645 | WASHER | .- | |
| 8 | 01580-01613 | NUT | .- | |
| 9 | 56D-83-16260 | CUSHION | .- | |
| 10 | 424-54-14230 | SPACER | .- | |
| 11 | 01010-81230 | BOLT | .- | |
| 12 | 01643-31232 | WASHER | .- | |
| 13 | 56D-83-16150 | HOUSING | .- | |
| 14 | 567-50-11450 | BEARING | .- | |
| 15 | 04065-08025 | RING,SNAP | .- | |
| 16 | 56D-83-16140 | COLLAR | .- | |
| 17 | 56D-83-16160 | SEAL | .- | |
| 18 | 56D-83-16280 | PIN | .- | |
| 19 | 56D-83-16290 | PLATE | .- | |
| 20 | 01010-81640 | BOLT | .- | |
| 21 | 01643-31645 | WASHER | .- | |
| 22 | 01010-81670 | BOLT | 1629- | |
| 22 | 01010-81665 | BOLT | .-1628 | |
| 23 | 01643-31645 | WASHER | .- | |
| 23B | 56B-83-16260 | PLATE | 1629- | |
| 24 | 07020-00000 | FITTING,GREASE | .- | |
| 25 | 56D-83-16210 | PIN | .- | |
| 26 | 01010-81220 | BOLT | .- | |
| 27 | 130-43-64260 | COLLAR | .- | |
| 28 | 56B-83-16191 | WIRE | .- | |
| 29 | 56D-83-16430 | JOINT ASS'Y | ..- | |
| 29 | 56D-83-16180 | JOINT ASS'Y | .-.. |
