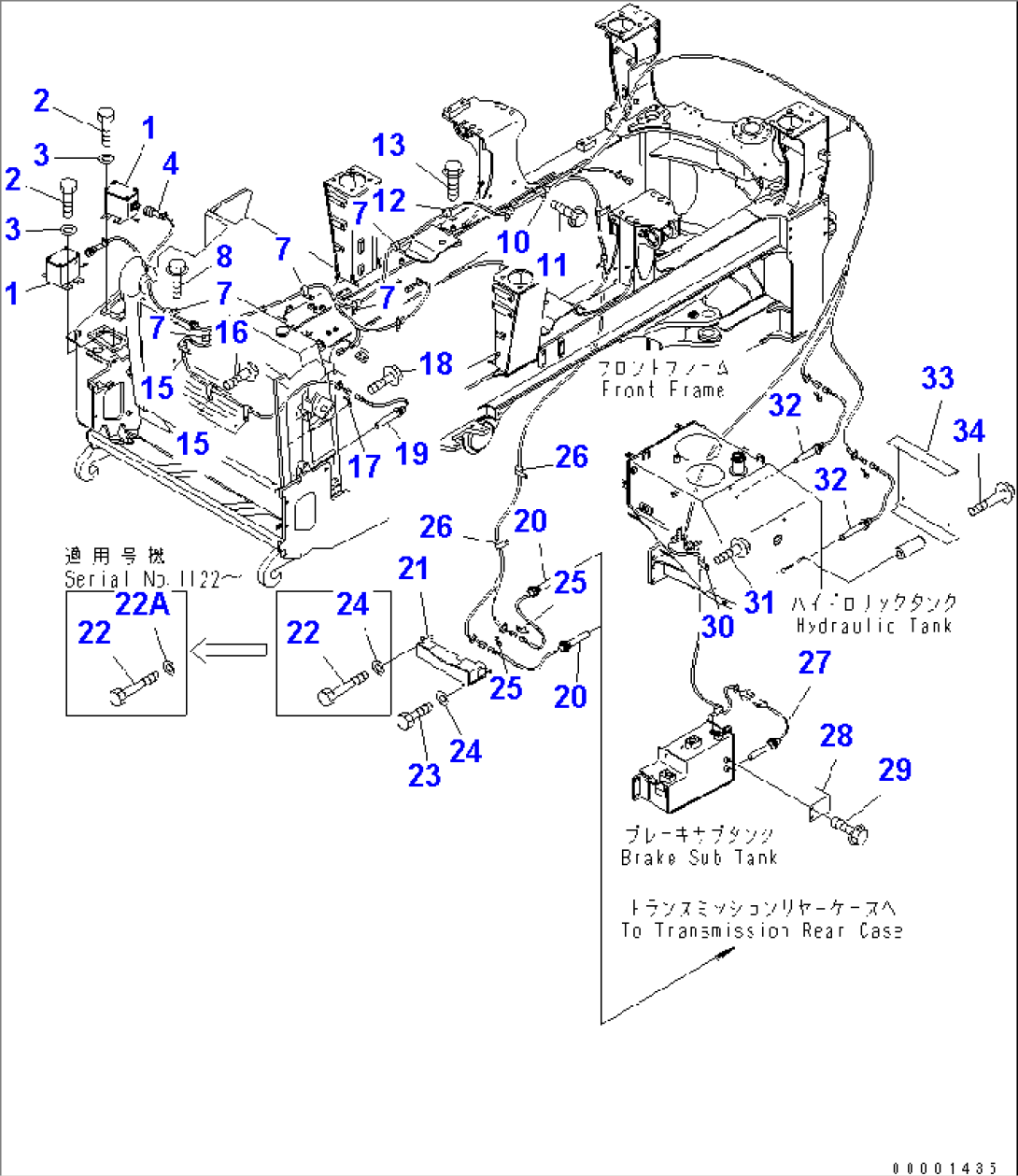

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-06-13600 | BOX ASS'Y | 1001-1121 | |
| 2 | 01010-81025 | BOLT | 1001- | |
| 3 | 01643-31032 | WASHER | 1001- | |
| 4 | 56C-84-17110 | WIRING HARNESS | 1001- | |
| 7 | 08036-91214 | CLIP | 1001- | |
| 8 | 01435-01016 | BOLT | 1122- | |
| 8 | 01435-01016 | BOLT | 1001-1121 | |
| 10 | 08036-91014 | CLIP | 1001- | |
| 11 | 01435-01016 | BOLT | 1001- | |
| 12 | 08036-91014 | CLIP | 1001- | |
| 13 | 01435-01070 | BOLT | 1001- | |
| 15 | 08036-90614 | CLIP | 1001- | |
| 16 | 01435-01016 | BOLT | 1001- | |
| 17 | 08193-20010 | CLIP | 1001- | |
| 18 | 01435-01016 | BOLT | 1001- | |
| 19 | 600-815-9340 | HEATER | 1001- | |
| 20 | 600-815-9340 | HEATER | 1001- | |
| 21 | 56C-84-17170 | COVER | 1001- | |
| 22 | 01010-81255 | BOLT | 1001- | |
| 22A | 01643-31232 | WASHER | 1122- | |
| 23 | 01010-81225 | BOLT | 1001- | |
| 24 | 01643-31232 | WASHER | 1122- | |
| 24 | 01643-31232 | WASHER | 1001-1121 | |
| 25 | 08193-20012 | CLIP | 1001- | |
| 26 | 08036-90614 | CLIP | 1001- | |
| 27 | 600-815-6240 | HEATER,OIL | 1001- | |
| 28 | 56C-84-17160 | COVER | 1001- | |
| 29 | 01435-01016 | BOLT | 1001- | |
| 30 | 08036-90614 | CLIP | 1001- | |
| 31 | 01435-01016 | BOLT | 1001- | |
| 32 | 600-815-9340 | HEATER | 1001- | |
| 33 | 56C-84-17130 | COVER | 1001- | |
| 34 | 01435-01016 | BOLT | 1001- |
