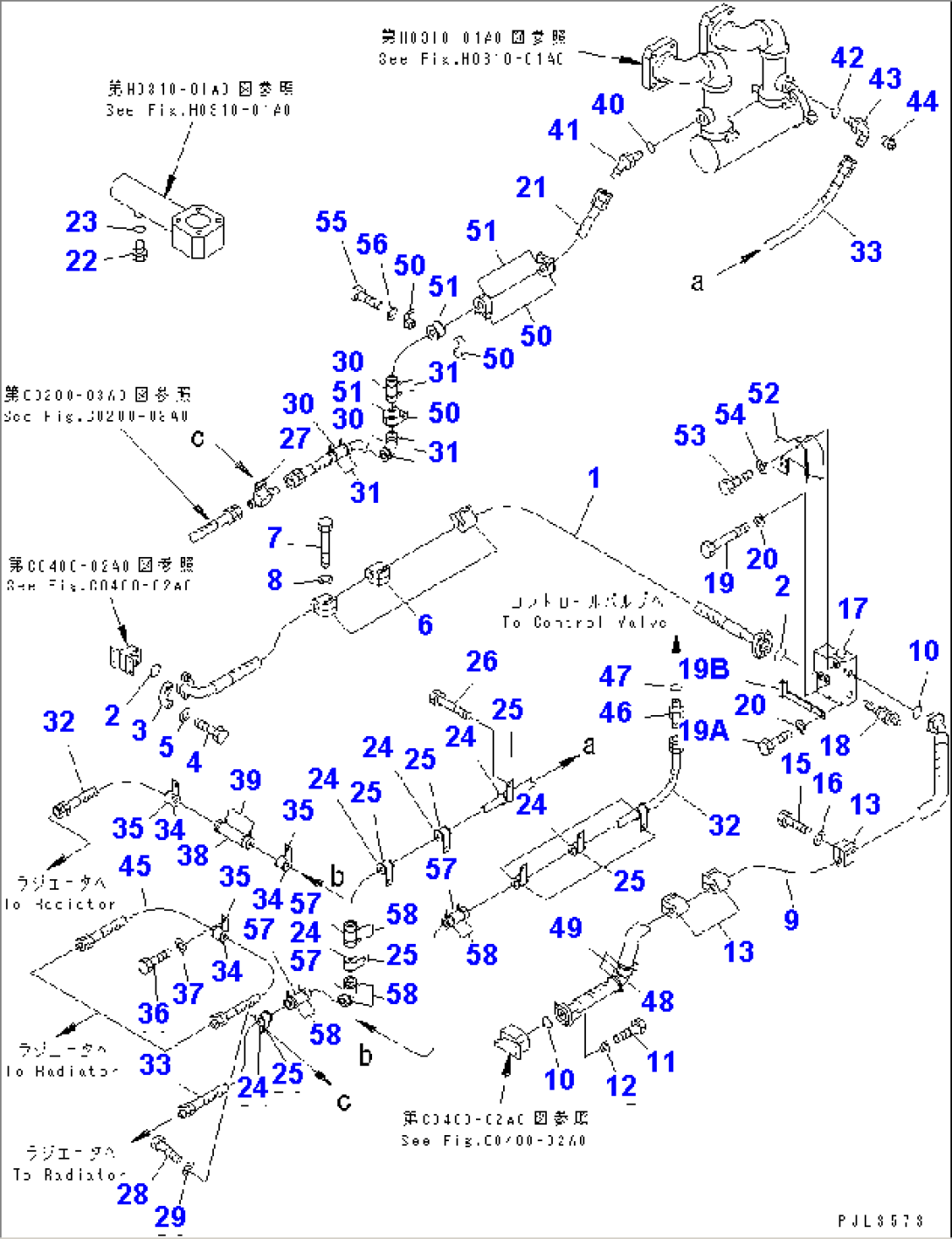

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07088-01227 | HOSE | 10001-10042 | |
| 2 | 07000-F3038 | O-RING | 10026-10042 | |
| 3 | 07371-31255 | FLANGE | 10001-10042 | |
| 4 | 07372-21035 | BOLT | 10001-10042 | |
| 5 | 01643-51032 | WASHER | 10001-10042 | |
| 6 | 19M-03-12310 | CLAMP | 10003-10042 | |
| 7 | 01010-81290 | BOLT | 10003-10042 | |
| 8 | 20Y-54-12670 | WASHER | 10003-10042 | |
| 9 | 19M-03-22260 | HOSE | 10033-10042 | |
| 10 | 07000-13048 | O-RING | 10001-10042 | |
| 11 | 01010-81235 | BOLT | 10001-10042 | |
| 12 | 01643-31232 | WASHER | 10001-10042 | |
| 13 | 19M-03-12310 | CLAMP | 10038-10042 | |
| 15 | 01010-81285 | BOLT | 10038-10042 | |
| 16 | 01643-31232 | WASHER | 10017-10042 | |
| 19M-03-11803 | VALVE ASS'Y | 10038-10042 | ||
| 17 | 19M-49-21730 | BLOCK | 10038-10042 | |
| 18 | 700-95-57001 | VALVE ASS'Y | 10017-10042 | |
| 19 | 01010-81295 | BOLT | 10038-10042 | |
| 19A | 01011-81200 | BOLT | 10038-10042 | |
| 19B | 19M-61-21851 | BRACKET | 10038-10042 | |
| 20 | 01643-31232 | WASHER | 10001-10042 | |
| 21 | 07102-20430 | HOSE | 10017-10042 | |
| 22 | 07040-12012 | PLUG | 10017-10042 | |
| 23 | 07002-12034 | O-RING | 10001-10042 | |
| 24 | 07095-20627 | CUSHION | 10017-10042 | |
| 25 | 04434-53412 | CLIP | 10017-10042 | |
| 26 | 01010-81295 | BOLT | 10017-10042 | |
| 27 | 19M-49-11710 | JOINT | 10001-10042 | |
| 28 | 01010-81225 | BOLT | 10001-10042 | |
| 29 | 01643-31232 | WASHER | 10001-10042 | |
| 30 | 205-62-72140 | COVER | 10038-10042 | |
| 31 | 08034-00519 | BAND | 10038-10042 | |
| 32 | 07102-20645 | HOSE | 10038-10042 | |
| 33 | 07102-20639 | HOSE | 10017-10042 | |
| 34 | 07095-20627 | CUSHION | 10017-10042 | |
| 35 | 04434-53412 | CLIP | 10017-10042 | |
| 36 | 01010-81225 | BOLT | 10017-10042 | |
| 37 | 01643-31232 | WASHER | 10017-10042 | |
| 38 | 205-62-72240 | COVER | 10017-10042 | |
| 39 | 08034-00519 | BAND | 10017-10042 | |
| 40 | 07002-12034 | O-RING | 10017-10042 | |
| 41 | 07236-10422 | ELBOW | 10017-10042 | |
| 42 | 07002-12434 | O-RING | 10017-10042 | |
| 43 | 07235-50628 | ELBOW | 10017-10042 | |
| 44 | 07042-30108 | PLUG | 10017-10042 | |
| 45 | 07102-20607 | HOSE | 10017-10042 | |
| 46 | 07230-20628 | UNION | 10017-10042 | |
| 47 | 07002-12434 | O-RING | 10017-10042 | |
| 48 | 07260-24725 | HOSE | 10017-10042 | |
| 49 | 08034-00834 | BAND | 10017-10042 | |
| 50 | 07094-00417 | CLAMP | 10017-10042 | |
| 51 | 07095-00420 | CUSHION | 10017-10042 | |
| 52 | 19M-01-12672 | BRACKET | 10038-10042 | |
| 53 | 01010-81220 | BOLT | 10038-10042 | |
| 54 | 01643-31232 | WASHER | 10038-10042 | |
| 55 | 01010-81220 | BOLT | 10038-10042 | |
| 56 | 01643-31232 | WASHER | 10038-10042 | |
| 57 | 205-62-72240 | COVER | 10038-10042 | |
| 58 | 08034-00519 | BAND | 10038-10042 |
