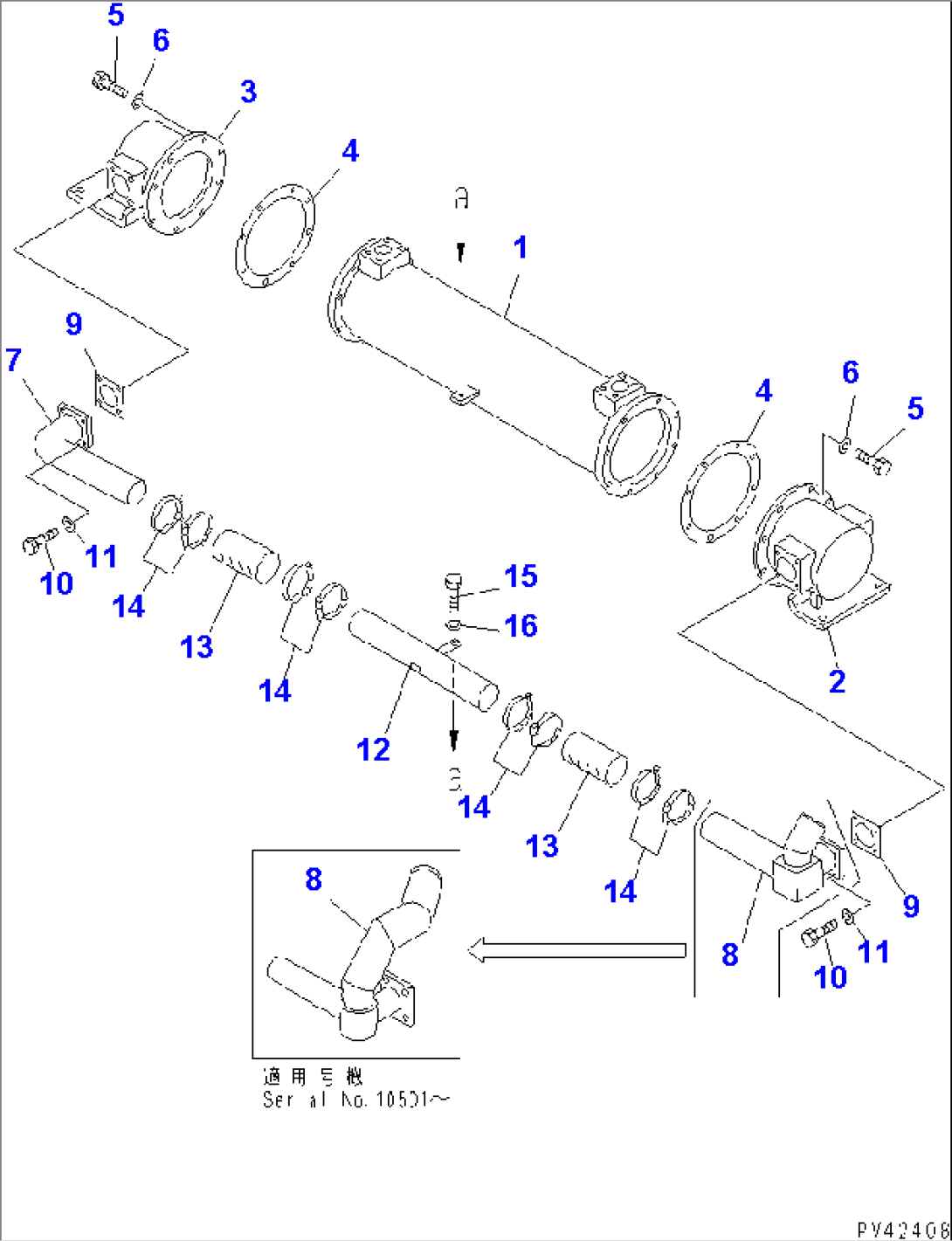

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-03-14300 | OIL COOLER ASS'Y | 10501- | ||
| 427-03-14100 | OIL COOLER ASS'Y | 10001-10499 | ||
| 1 | 427-03-14310 | ELEMENT | 10501- | |
| 427-03-14120 | ELEMENT | 10001-10499 | ||
| 2 | 427-03-14110 | COVER | 10001- | |
| 3 | 427-03-14340 | COVER | 10501- | |
| 427-03-14130 | COVER | 10001-10499 | ||
| 4 | 427-03-14141 | GASKET | 10001- | |
| (\2\427-03-14140) | GASKET | (10001-10654) | ||
| 5 | 01010-81035 | BOLT | 10001- | |
| 6 | 01602-21030 | WASHER,SPRING | 10001- | |
| 7 | 427-03-14150 | PIPE | 10001- | |
| 8 | 427-03-14330 | PIPE | 10501- | |
| 427-03-14170 | PIPE | 10001-10499 | ||
| 9 | 427-03-14181 | GASKET | 10001- | |
| (\2\427-03-14180) | GASKET | (10001-10654) | ||
| 10 | 01010-81030 | BOLT | 10001- | |
| 11 | 01602-21030 | WASHER,SPRING | 10001- | |
| 12 | 427-03-14320 | PIPE | 10501- | |
| 427-03-14160 | PIPE | 10001-10499 | ||
| 13 | 07260-25816 | HOSE | 10001- | |
| 14 | 07281-00809 | CLAMP | 10001- | |
| 15 | 01010-81220 | BOLT | 10001- | |
| 16 | 01643-31232 | WASHER | 10001- |
