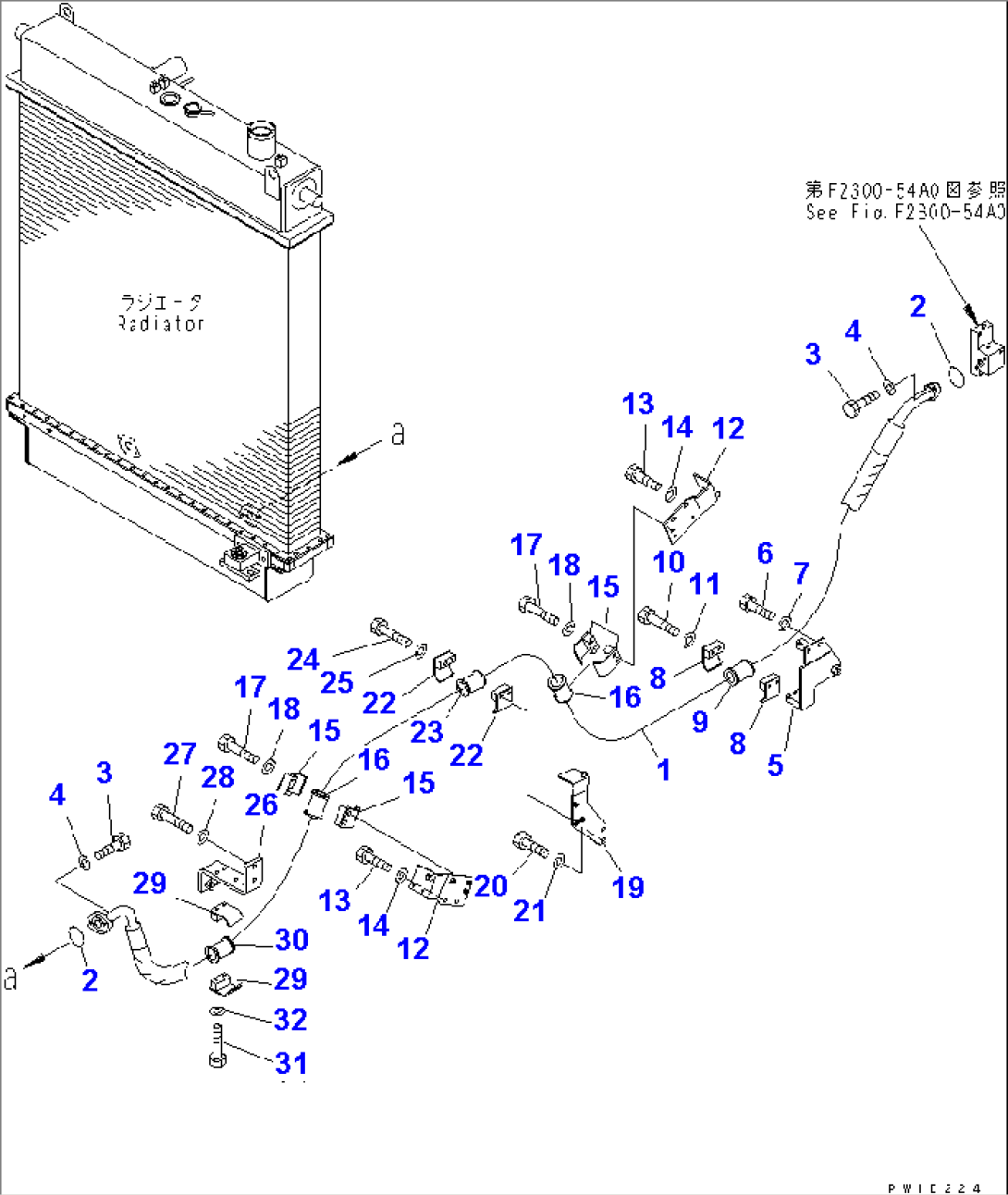

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17M-49-41271 | HOSE | 20001- | |
| 2 | 07000-13032 | O-RING | 20001- | |
| 3 | 07372-21035 | BOLT | 20001- | |
| 4 | 01643-51032 | WASHER | 20001- | |
| 5 | 17M-03-46381 | BRACKET | 20001- | |
| 6 | 01010-81225 | BOLT | 20001- | |
| 7 | 01643-31232 | WASHER | 20001- | |
| 8 | 07094-11024 | CLAMP | 20001- | |
| 9 | 07095-01035 | CUSHION | 20001- | |
| 10 | 01010-81285 | BOLT | 20001- | |
| 11 | 01643-31232 | WASHER | 20001- | |
| 12 | 17M-03-46321 | BRACKET | 20001- | |
| 13 | 01010-81225 | BOLT | 20001- | |
| 14 | 01643-31232 | WASHER | 20001- | |
| 15 | 07094-11024 | CLAMP | 20001- | |
| 16 | 07095-01035 | CUSHION | 20001- | |
| 17 | 01010-81295 | BOLT | 20001- | |
| 18 | 01643-31232 | WASHER | 20001- | |
| 19 | 17M-03-46371 | BRACKET | 20001- | |
| 20 | 01010-81225 | BOLT | 20001- | |
| 21 | 01643-31232 | WASHER | 20001- | |
| 22 | 07094-11024 | CLAMP | 20001- | |
| 23 | 07095-01035 | CUSHION | 20001- | |
| 24 | 01010-81295 | BOLT | 20001- | |
| 25 | 01643-31232 | WASHER | 20001- | |
| 26 | 17M-03-46310 | BRACKET | 20001- | |
| 27 | 01010-81235 | BOLT | 20001- | |
| 28 | 01643-31232 | WASHER | 20001- | |
| 29 | 07094-11024 | CLAMP | 20001- | |
| 30 | 07095-01035 | CUSHION | 20001- | |
| 31 | 01010-81285 | BOLT | 20001- | |
| 32 | 01643-31232 | WASHER | 20001- |
