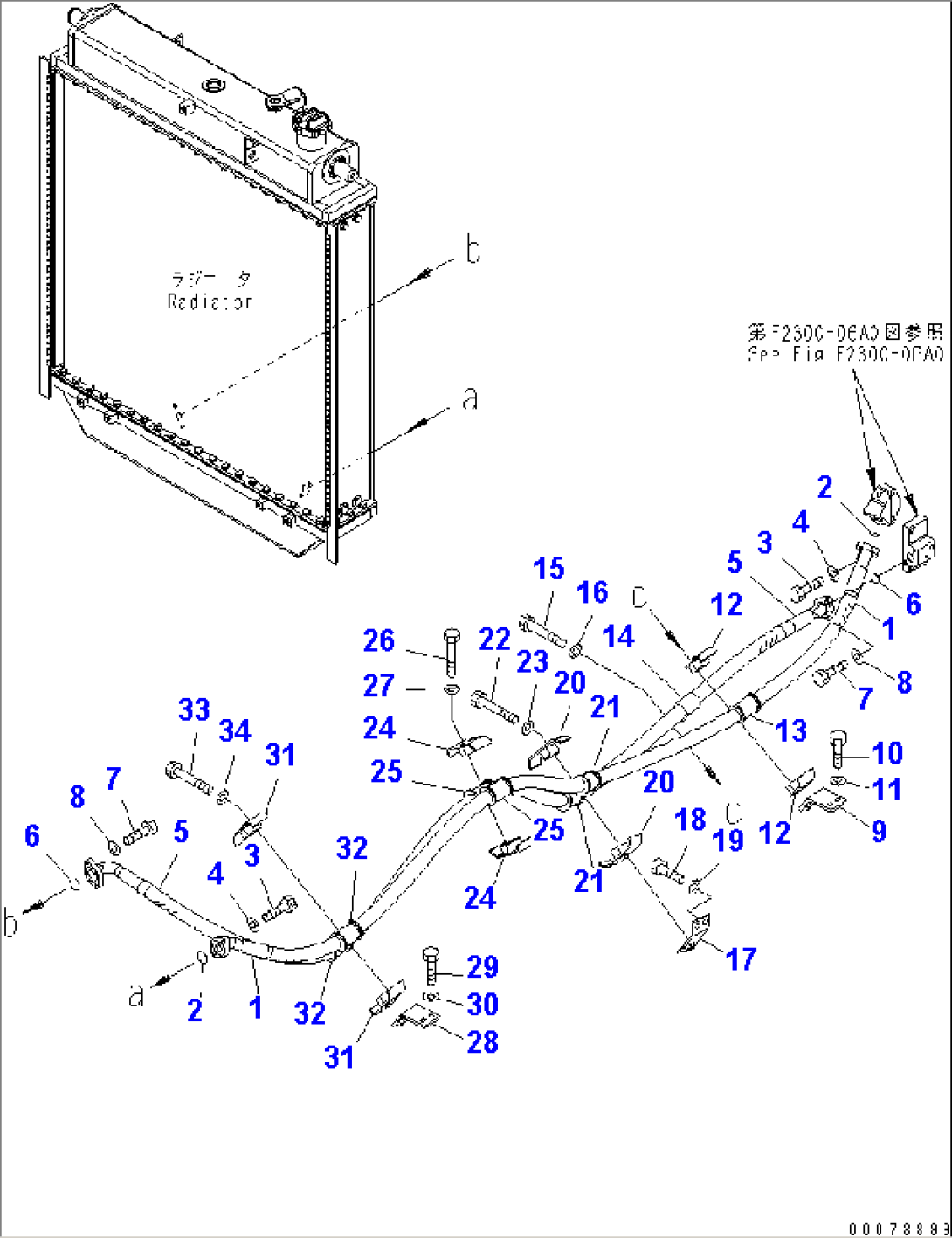

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-49-71610 | HOSE | 1001- | |
| 2 | 07000-13032 | O-RING | 1001- | |
| 3 | 01010-81035 | BOLT | 1001- | |
| 4 | 01643-31032 | WASHER | 1001- | |
| 5 | 154-49-71620 | HOSE | 1001- | |
| 6 | 07000-13032 | O-RING | 1001- | |
| 7 | 01010-81035 | BOLT | 1001- | |
| 8 | 01643-31032 | WASHER | 1001- | |
| 9 | 154-61-71720 | BRACKET | 1001- | |
| 10 | 01010-81230 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 07094-11024 | CLAMP | 1001- | |
| 13 | 07095-01034 | CUSHION | 1001- | |
| 14 | 113-899-7950 | CLIP | 1001- | |
| 15 | 01010-81285 | BOLT | 1001- | |
| 16 | 01643-31232 | WASHER | 1001- | |
| 17 | 154-49-71661 | BRACKET | 1001- | |
| 18 | 01010-81230 | BOLT | 1001- | |
| 19 | 01643-31232 | WASHER | 1001- | |
| 20 | 07094-31024 | CLAMP | 1001- | |
| 21 | 07095-01034 | CUSHION | 1001- | |
| 22 | 01010-81285 | BOLT | 1001- | |
| 23 | 01643-31232 | WASHER | 1001- | |
| 24 | 07094-31024 | CLAMP | 1001- | |
| 25 | 07095-01034 | CUSHION | 1001- | |
| 26 | 01010-81285 | BOLT | 1001- | |
| 27 | 01643-31232 | WASHER | 1001- | |
| 28 | 154-61-71720 | BRACKET | 1001- | |
| 29 | 01010-81230 | BOLT | 1001- | |
| 30 | 01643-31232 | WASHER | 1001- | |
| 31 | 07094-31024 | CLAMP | 1001- | |
| 32 | 07095-01034 | CUSHION | 1001- | |
| 33 | 01010-81285 | BOLT | 1001- | |
| 34 | 01643-31232 | WASHER | 1001- |
