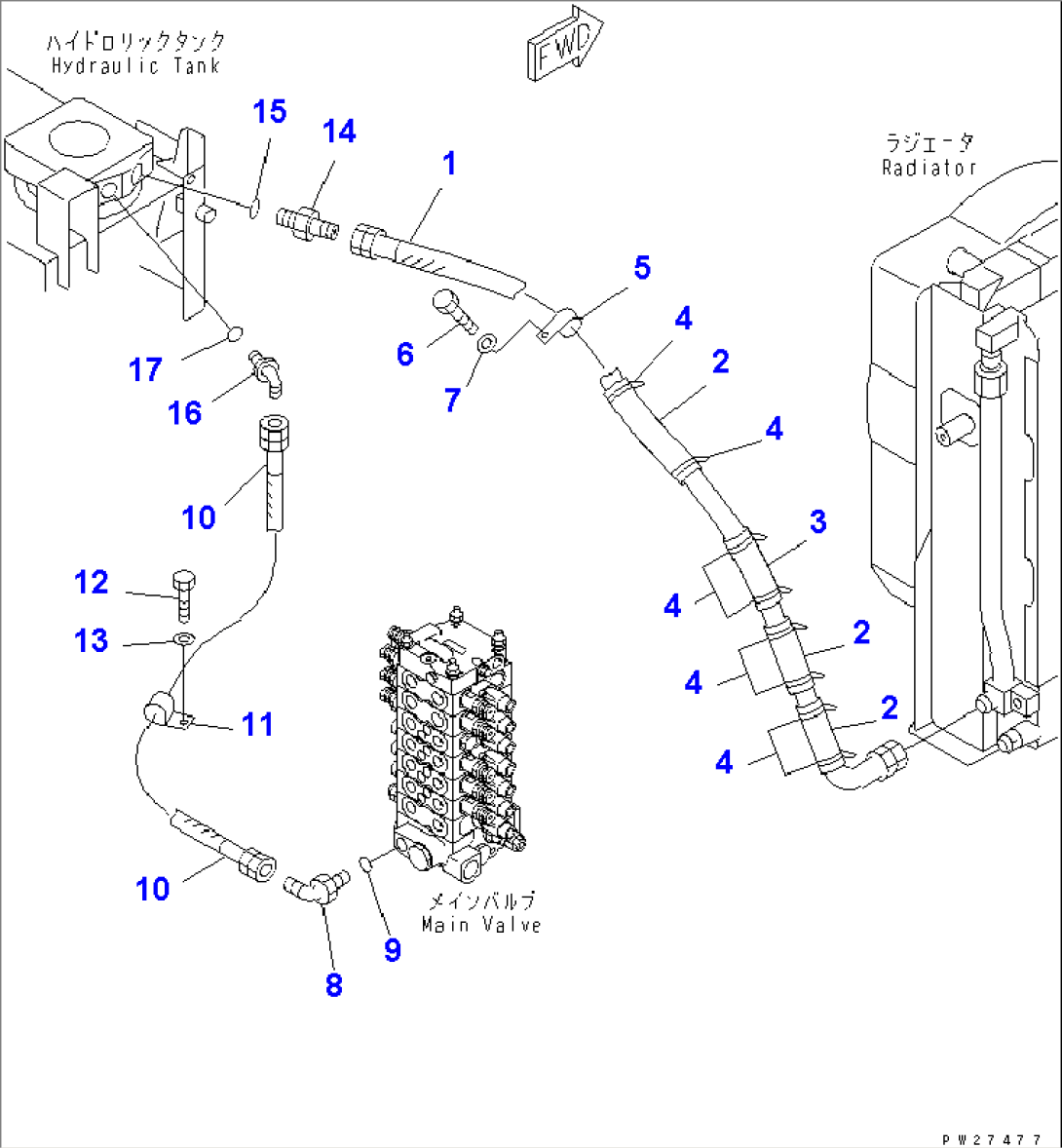

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 203-62-61432 | HOSE¤ 1270MM | 1001- | |
| 2 | 205-62-53780 | COVER | 1001- | |
| 3 | 203-62-52210 | RUBBER | 1001- | |
| 4 | 08034-00536 | BAND | 1001- | |
| 5 | 281-01-13180 | CLIP | 1001- | |
| 6 | 01010-81230 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 07235-10628 | ELBOW | 1001- | |
| 9 | 07002-12434 | O-RING | 1001- | |
| 10 | 07102-20611 | HOSE | 1001- | |
| 11 | 04434-53212 | CLIP | 1001- | |
| 12 | 01010-81220 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 14 | 07230-21034 | UNION | 1001- | |
| 15 | 07002-03334 | O-RING | 1001- | |
| 16 | 203-62-61230 | ELBOW | 1001- | |
| 17 | 07002-02434 | O-RING | 1001- |
