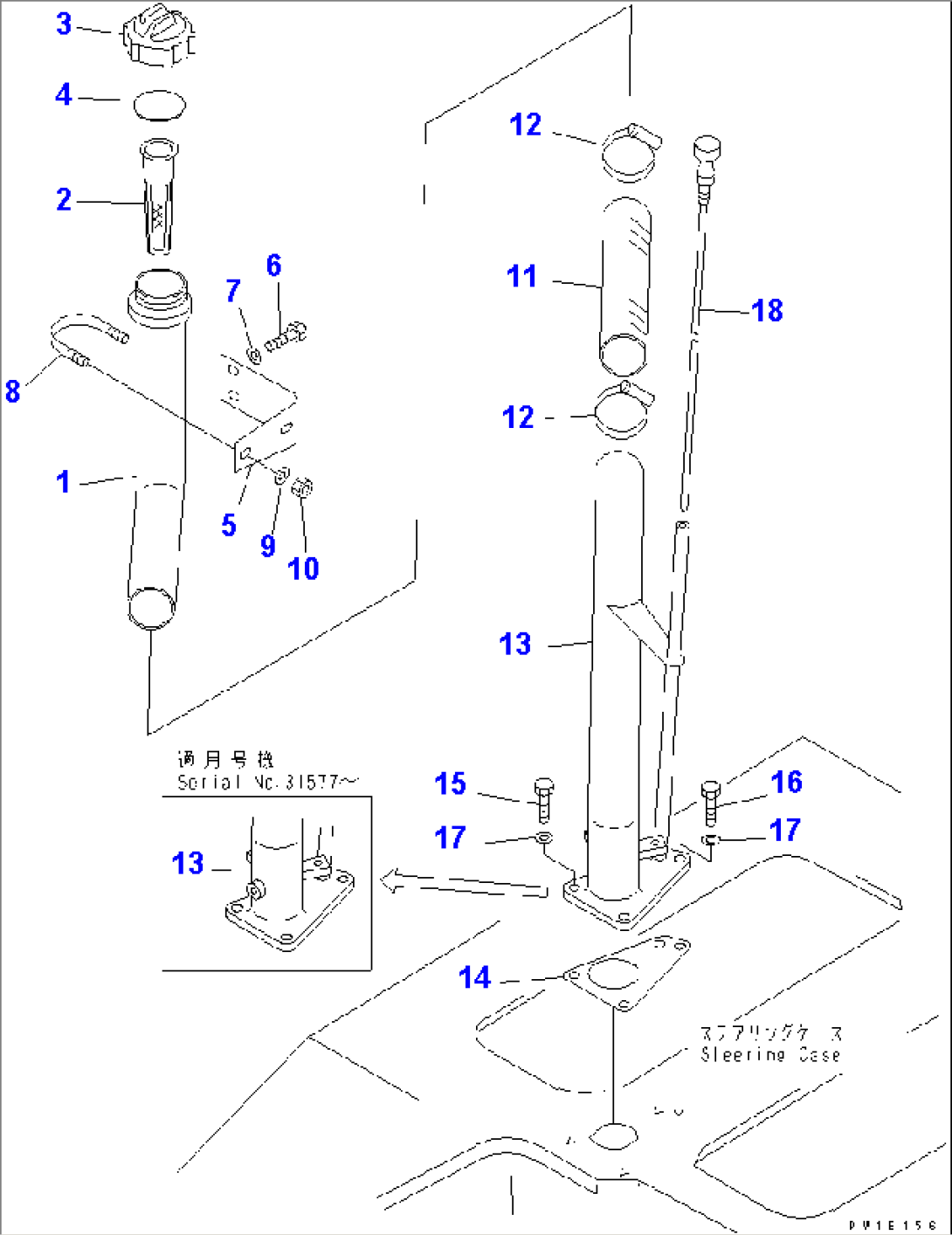

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 176-49-43150 | TUBE | 15686- | |
| 2 | 07056-10045 | STRAINER | 15686- | |
| 3 | 07051-01000 | CAP | 31271- | |
| 3 | \0\07051-20000 | CAP | 15686-31270 | |
| 4 | 07051-00005 | GASKET | 15686- | |
| 5 | 176-49-43170 | BRACKET | 15686- | |
| 6 | 01010-81030 | BOLT | 15686- | |
| 7 | 01643-31032 | WASHER | 15686- | |
| 8 | 07283-26155 | CLIP | 15686- | |
| 9 | 01643-31032 | WASHER | 15686- | |
| 10 | 01599-01011 | NUT | 15686- | |
| 11 | 07260-25820 | HOSE | 15686- | |
| 12 | 07281-00809 | CLAMP | 15686- | |
| 13 | 176-49-44150 | TUBE | 31578- | |
| 13 | 176-49-43112 | TUBE | 31416-31577 | |
| 14 | 176-49-43161 | GASKET | 31271- | |
| 14 | \0\176-49-43160 | GASKET | 15686-31270 | |
| 15 | 01010-81235 | BOLT | 15686- | |
| 16 | 01010-81240 | BOLT | 15686- | |
| 17 | 01643-31232 | WASHER | 15686- | |
| 18 | 176-49-43121 | GAUGE,OIL LEVEL | 15686- |
