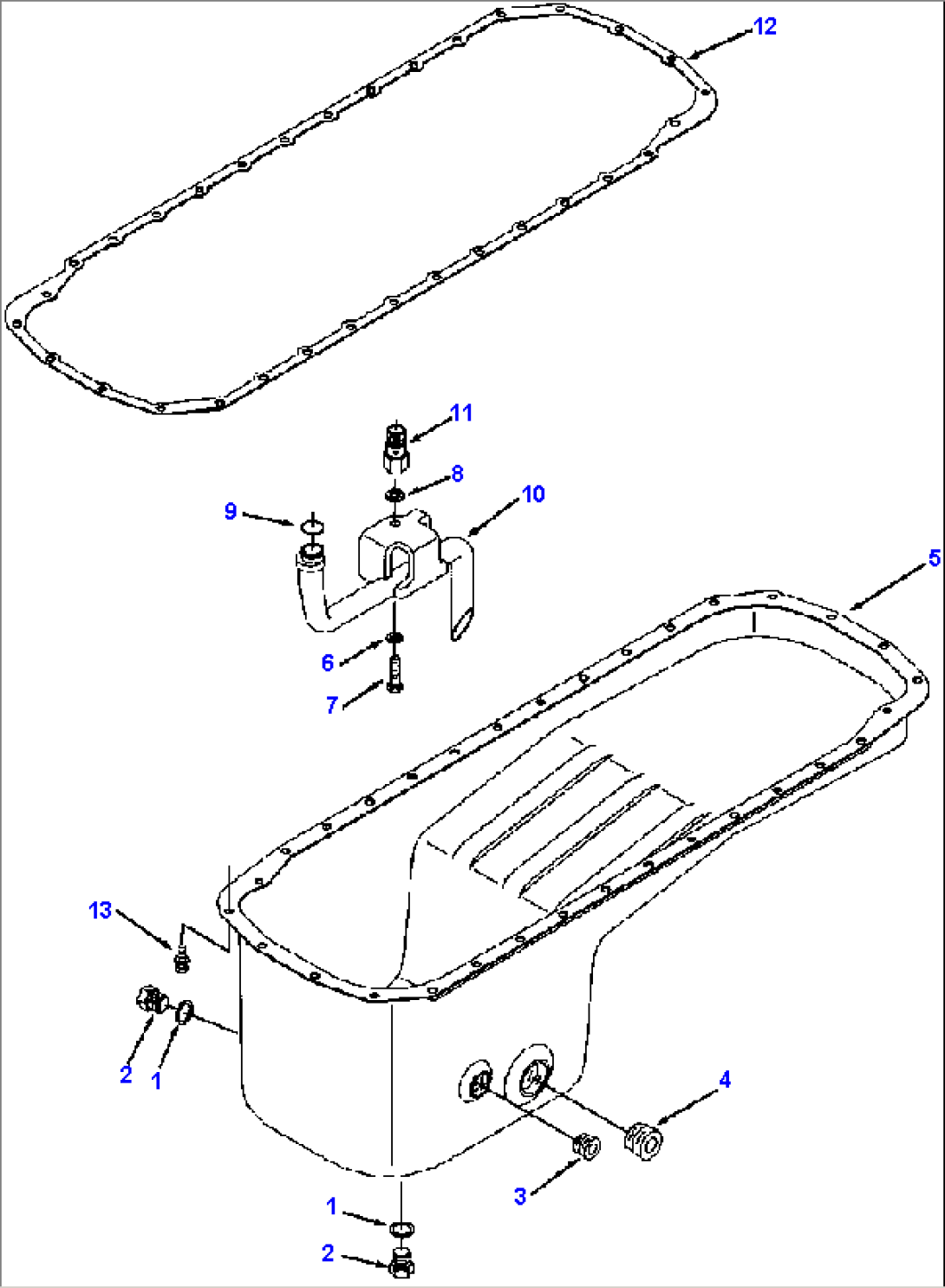

| Item | Part No. | Part Name | Qty | Serial No. |
| 1294 167 H93 | KIT, OIL PAN | |||
| 1296 808 H1 | PAN, OIL TLA | |||
| 1 | 1240 006 H1 | WASHER, PLAIN | ||
| 2 | 1246 402 H1 | PLUG, THREADED | ||
| 3 | 6732-11-1910 | PLUG, PIPE (1/2 NPT) | ||
| 4 | 1239 161 H1 | PLUG, PIPE (1 NPT) | ||
| 5 | (NSS) | PAN, OIL | ||
| 6 | 30 282 R1 | WASHER, PLAIN | ||
| 7 | 1296 804 H1 | BOLT | ||
| 8 | 1296 807 H1 | RETAINER, CAP SCREW | ||
| 9 | 1246 404 H1 | O-RING | ||
| 10 | 1296 805 H1 | TUBE, LUBE OIL SUCTION | ||
| 11 | 1296 806 H1 | PLUG, RETAINER | ||
| 12 | 1294 238 H1 | GASKET, OIL PAN | ||
| 13 | 1304 808 H1 | BOLT (M10x1.50x26) |
