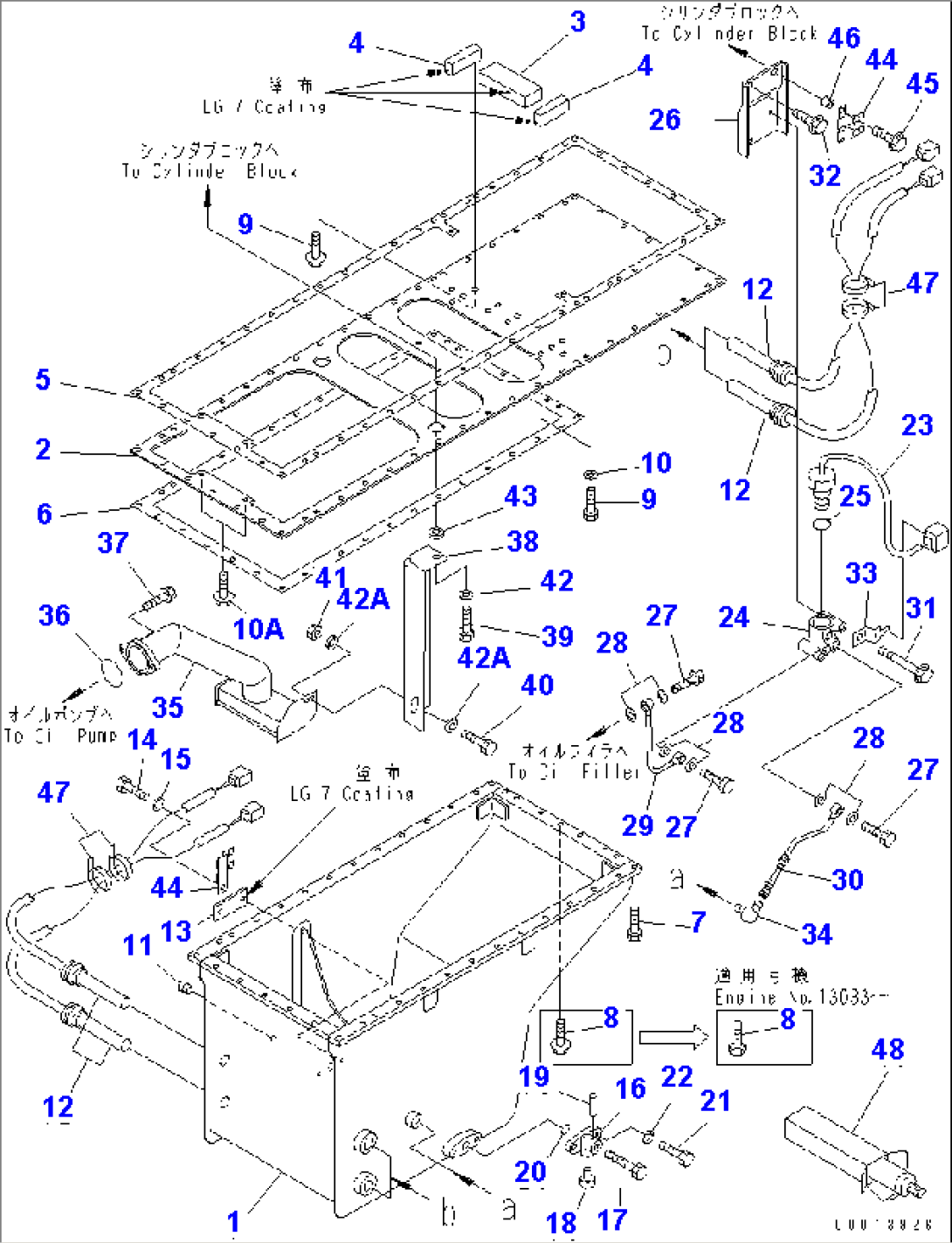

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6215-21-5210 | PAN,OIL | 12472- | |
| 2 | 6215-21-5121 | PLATE | 12472- | |
| 3 | 6215-21-5130 | PLATE | 12472- | |
| 4 | 6215-21-5140 | PLATE | 12472- | |
| 5 | 6215-21-5811 | GASKET (K2) | 12472- | |
| 6 | 6215-21-5820 | GASKET (K2) | 12472- | |
| 7 | 01010-81040 | BOLT | 12472- | |
| 8 | 01010-81035 | BOLT | 13033- | |
| 01435-01035 | BOLT | 12472-13032 | ||
| 9 | 01010-81025 | BOLT | 12472- | |
| 10 | 01643-31032 | WASHER | 12472- | |
| 10A | 01435-01020 | BOLT | 12472- | |
| 11 | 07043-70211 | PLUG | 12472- | |
| 12 | 600-815-8460 | HEATER,OIL PAN | 12472- | |
| 13 | 6215-21-5160 | COVER | 12472- | |
| 14 | 01010-81020 | BOLT | 12472- | |
| 15 | 01643-31032 | WASHER | 12472- | |
| 6693-22-5600 | VALVE ASS'Y | 12472- | ||
| 16 | \6\ | BODY | 12472- | |
| 17 | \6\ | VALVE | 12472- | |
| 18 | 07040-02412 | PLUG | 12472- | |
| 19 | 04020-00514 | PIN,DOWEL | 12472- | |
| 20 | 07000-73028 | O-RING (K2) | 12472- | |
| 21 | 01010-81030 | BOLT | 12472- | |
| 22 | 01643-31032 | WASHER | 12472- | |
| 23 | 7861-92-4550 | SENSOR | 12472- | |
| 24 | 6162-83-8612 | CASE | 12472- | |
| 25 | 07002-23634 | O-RING (K2) | 12472- | |
| 26 | 6215-81-5950 | BRACKET | 12472- | |
| 27 | 07206-31014 | BOLT,JOINT | 12472- | |
| 28 | 07005-01412 | GASKET | 12472- | |
| 29 | 6215-81-5960 | TUBE | 12472- | |
| 30 | 6215-81-5940 | TUBE | 12472- | |
| 31 | 01435-01080 | BOLT | 12472- | |
| 32 | 01435-01020 | BOLT | 12472- | |
| 33 | 08053-01510 | CLIP | 12472- | |
| 34 | 07217-60813 | ELBOW | 12472- | |
| 35 | 6215-51-6362 | TUBE | 12472- | |
| 36 | 07000-E2080 | O-RING | 12472- | |
| 37 | 01010-81235 | BOLT | 12472- | |
| 38 | 6215-51-6241 | BRACKET | 12472- | |
| 39 | 01010-81030 | BOLT | 12472- | |
| 40 | 01010-81025 | BOLT | 12472- | |
| 41 | 01580-01008 | NUT | 12472- | |
| 42 | 01643-31032 | WASHER | 13342- | |
| 01643-31032 | WASHER | 12472-13341 | ||
| 42A | 6110-23-6490 | SPACER | 13342- | |
| 43 | 6141-25-3770 | WASHER | 12472- | |
| 44 | 427-Z91-2190 | PLATE | 12472- | |
| 45 | 01435-01045 | BOLT | 12472- | |
| 46 | 6631-11-5630 | SPACER | 12472- | |
| 47 | 08034-00519 | BAND | 12472- | |
| 48 | (09920-00150) | LIQUID GASKET,LG-7 150G | 12472- |
