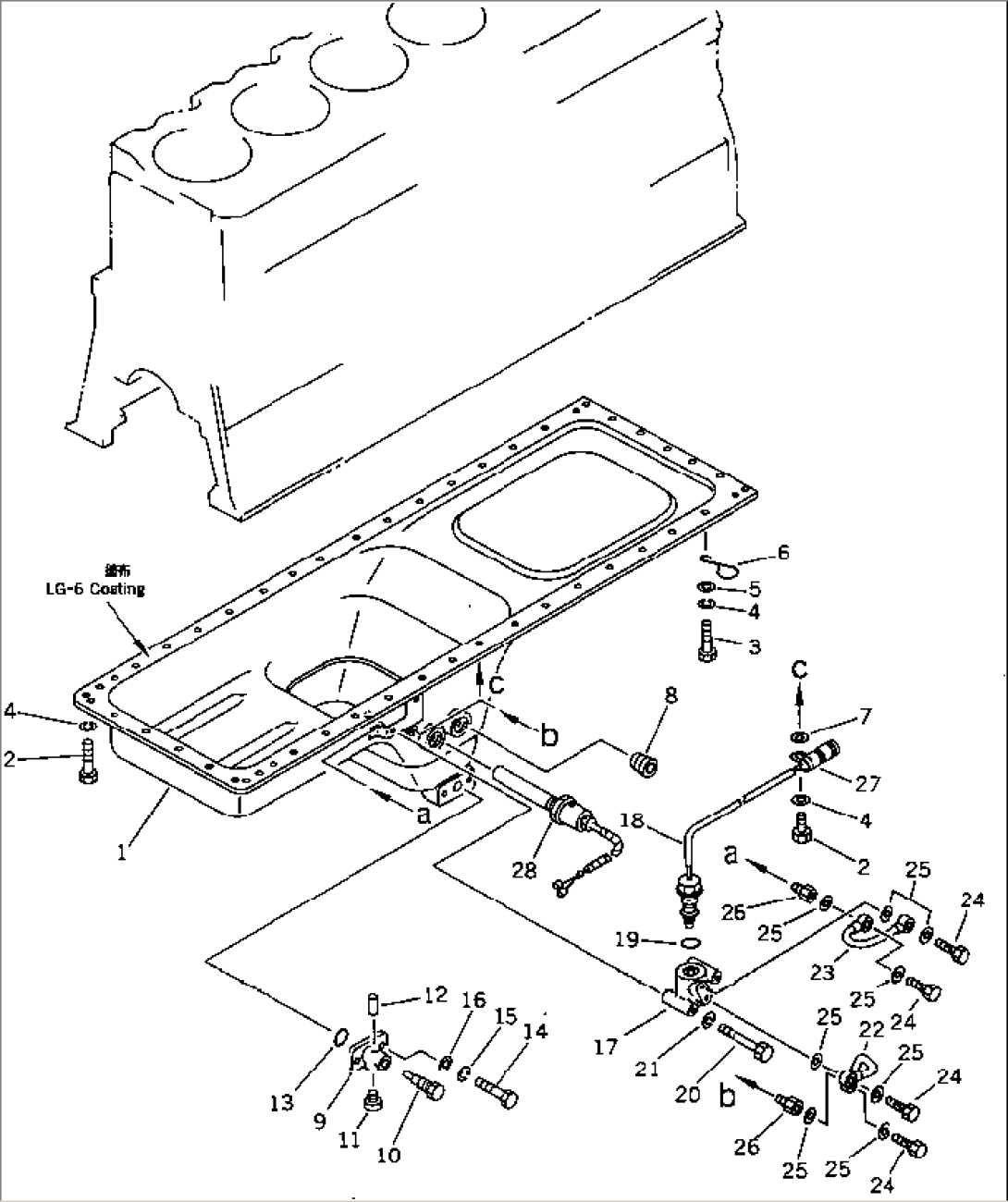

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6162-23-5110 | PAN,OIL | 10277- | |
| 2 | 01010-31030 | BOLT | 10277- | |
| 3 | 01010-31035 | BOLT | 10277- | |
| 4 | 01602-01030 | WASHER,SPRING | 10277- | |
| 5 | 01640-01016 | WASHER | 10277- | |
| 6 | 6710-21-7640 | CLIP | 10277- | |
| 7 | 01643-31032 | WASHER | 10277- | |
| 8 | 02720-21616 | PLUG | 10277- | |
| 6693-22-5600 | VALVE ASS'Y | 10277- | ||
| 9 | \6\ | BODY | 10277- | |
| 10 | \6\ | VALVE | 10277- | |
| 11 | 07040-02412 | PLUG | 10277- | |
| 12 | 04020-00514 | PIN,DOWEL | 10277- | |
| 13 | 07000-63028 | O-RING (K2) | 10277- | |
| 14 | 01010-31030 | BOLT | 10277- | |
| 15 | 01602-01030 | WASHER,SPRING | 10277- | |
| 16 | 01640-01016 | WASHER | 10277- | |
| 6162-83-8602 | LEVEL SENSOR ASS'Y | 10277- | ||
| 17 | 6162-83-8612 | CASE | 10277- | |
| 18 | 7861-99-4500 | SENSOR | 10277- | |
| 19 | 07002-23634 | O-RING (K2) | 10277- | |
| 20 | 01010-31090 | BOLT | 10277- | |
| 21 | 01602-01030 | WASHER,SPRING | 10277- | |
| 22 | 6162-53-6540 | PIPE | 11683- | |
| 23 | 6162-53-6530 | PIPE | 11683- | |
| 24 | 07206-31014 | BOLT,JOINT | 11683- | |
| 25 | 07005-01412 | GASKET (K2) | 11683- | |
| 26 | 6162-53-6550 | CONNECTOR | 11683- | |
| 27 | 600-050-2620 | CLIP | 10277- | |
| 28 | 6631-84-2913 | HEATER,OIL PAN | 11683- |
