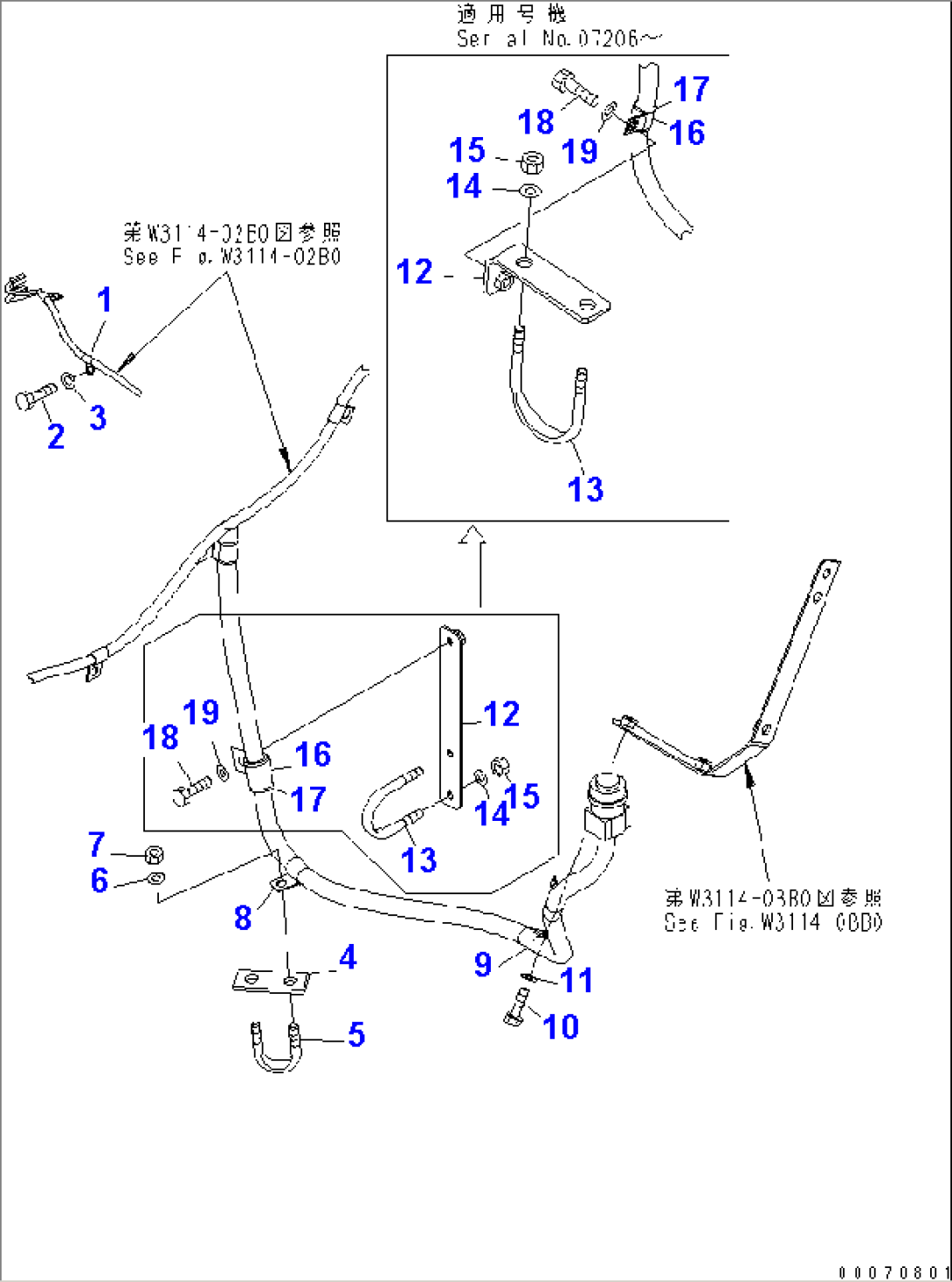

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-50812 | CLIP | 7169- | |
| 2 | 01010-81220 | BOLT | 7169- | |
| 3 | 01643-31232 | WASHER | 7169- | |
| 4 | 56D-61-11710 | PLATE | 7169- | |
| 5 | 07283-33442 | CLIP | 7169- | |
| 6 | 01643-31032 | WASHER | 7169- | |
| 7 | 01597-01009 | NUT | 7169- | |
| 8 | 04434-51410 | CLIP | 7169- | |
| 9 | 04434-51410 | CLIP | 7169- | |
| 10 | 01010-81020 | BOLT | 7169- | |
| 11 | 01643-31032 | WASHER | 7169- | |
| 12 | 561-43-83850 | BRACKET | 7206- | |
| 12 | 561-84-81750 | BRACKET | 7169-7205 | |
| 13 | 07283-38973 | CLIP | 7206- | |
| 13 | 07283-34949 | CLIP | 7169-7205 | |
| 14 | 01643-31232 | WASHER | 7206- | |
| 14 | 01643-31032 | WASHER | 7169-7205 | |
| 15 | 01597-01211 | NUT | 7206- | |
| 15 | 01597-01009 | NUT | 7169-7205 | |
| 16 | 04434-51912 | CLIP | 7206- | |
| 16 | 04434-51910 | CLIP | 7169-7205 | |
| 17 | 07095-20213 | CUSHION | 7169- | |
| 18 | 01010-81225 | BOLT | 7206- | |
| 18 | 01010-81020 | BOLT | 7169-7205 | |
| 19 | 01643-31232 | WASHER | 7206- | |
| 19 | 01643-31032 | WASHER | 7169-7205 |
