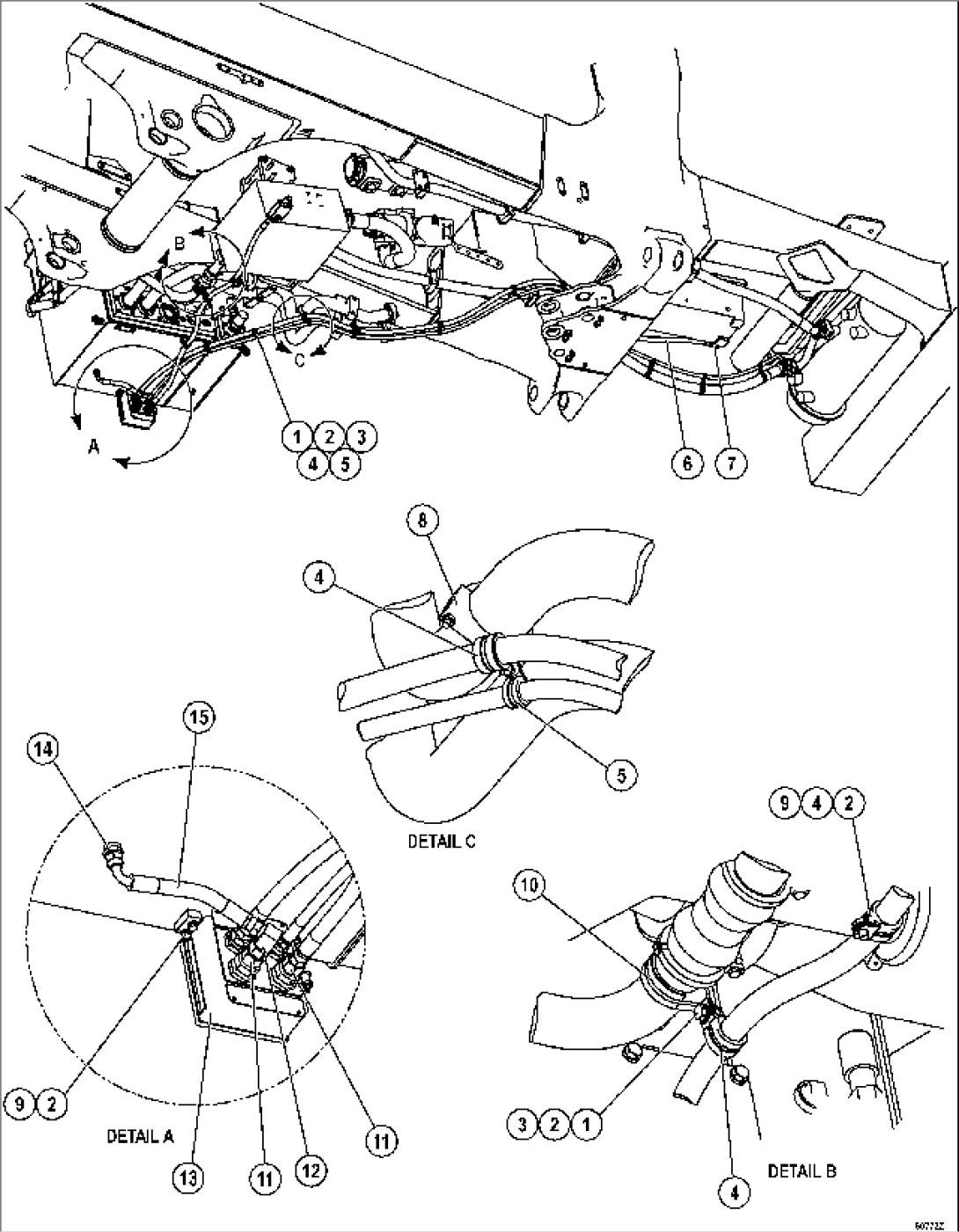

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81025 | Bolt | 80138- | |
| 2 | 01643-31032 | Washer | 80138- | |
| 3 | 01580-11008 | Nut | 80138- | |
| 4 | AHWB3096 | Clamp | 80138- | |
| 5 | AHWB3092 | Clamp | 80138- | |
| 6 | AHHA6621 | Hose | 80138- | |
| 7 | AHPC0919 | Adapter | 80138- | |
| 8 | 07283-37671 | Clip | 80138- | |
| 9 | 01010-81016 | Bolt | 80138- | |
| 10 | AHWB3100 | Clamp | 80138- | |
| 11 | AHWB0364 | Fitting | 80138- | |
| 12 | AHWB0377 | Fitting | 80138- | |
| 13 | (AHEG8913) | Box Assembly, Service Center | 80138- | |
| 14 | AHWB0470 | Fitting | 80138- | |
| 15 | AHHA5434 | Hose | 80138- |
