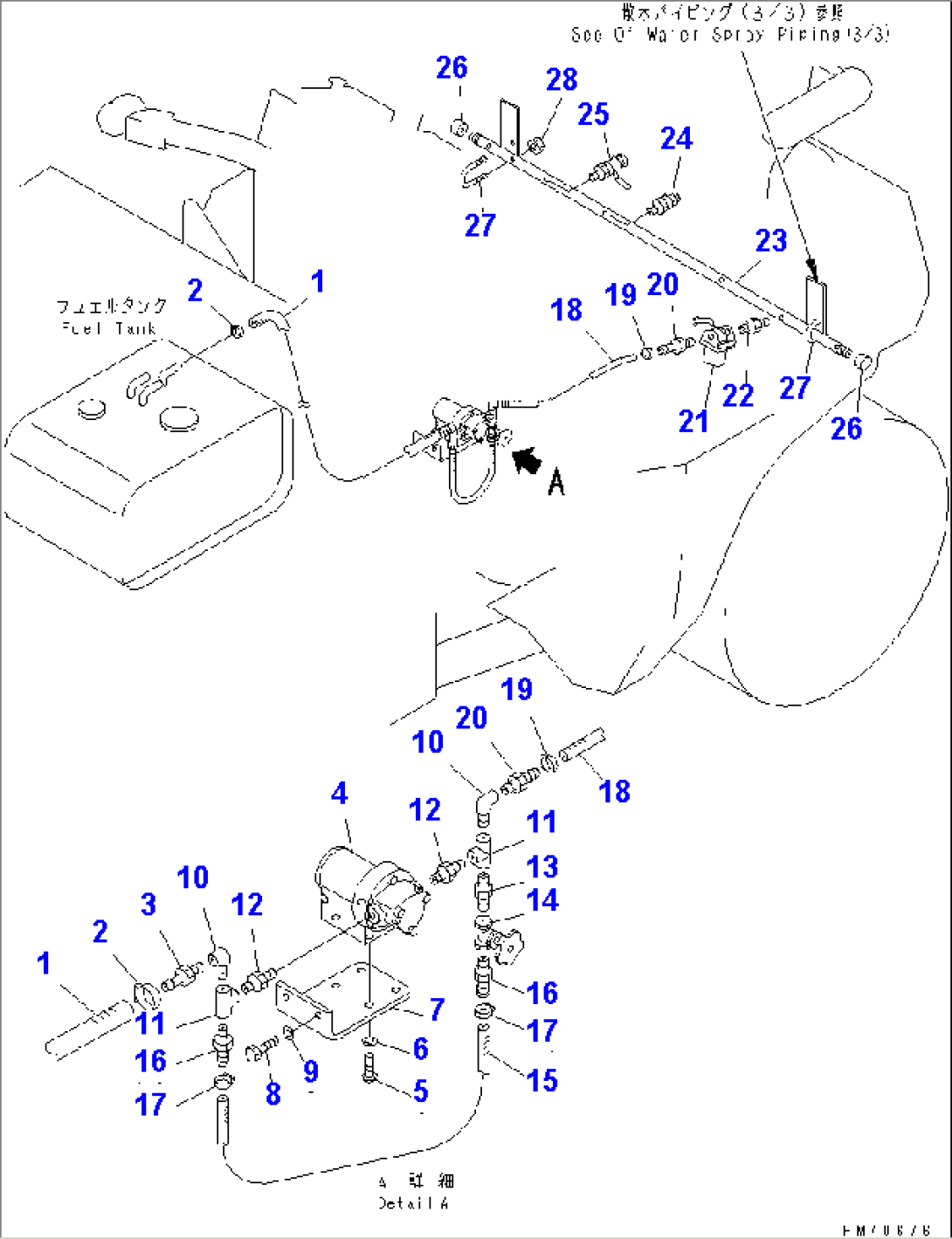

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 258-20-27524 | HOSE | 5497- | |
| 2 | 07281-10137 | CLAMP | 5301- | |
| 3 | 257-80-15610 | NIPPLE | 5301- | |
| 4 | 258-80-36101 | PUMP ASS'Y | 5001- | |
| (\2\258-80-36100) | PUMP ASS'Y | (5001-.) | ||
| 5 | 01220-40616 | SCREW | 5001- | |
| 6 | 01602-20619 | WASHER,SPRING | 5001- | |
| 7 | 258-80-36610 | BRACKET | 5001- | |
| 8 | 01010-80825 | BOLT | 5001- | |
| 9 | 01602-20825 | WASHER,SPRING | 5001- | |
| 10 | 265-98-12001 | ELBOW | 5301- | |
| 11 | 07324-00100 | TEE | 5001- | |
| 12 | 07325-00100 | NIPPLE | 5001- | |
| 13 | 07325-00100 | NIPPLE | 5001- | |
| 14 | 257-20-17550 | VALVE | 5001- | |
| 15 | 266-80-76420 | HOSE | 5001- | |
| 16 | 257-80-15610 | NIPPLE | 5001- | |
| 17 | 07281-10137 | CLAMP | 5001- | |
| 18 | 258-20-27530 | HOSE | 5001- | |
| 19 | 07281-10137 | CLAMP | 5001- | |
| 20 | 257-80-15610 | NIPPLE | 5001- | |
| 21 | 258-80-26410 | VALVE | 5001- | |
| 22 | 07325-00100 | NIPPLE | 5001- | |
| 23 | 258-80-46310 | PIPE | 5301- | |
| 24 | 258-80-26420 | NOZZLE | 5001- | |
| 25 | 258-85-14710 | VALVE | 5001- | |
| 26 | 266-15-11004 | PLUG | 5001- | |
| 27 | 07283-22236 | CLIP | 5001- | |
| 28 | 01599-01011 | NUT | 5001- |
