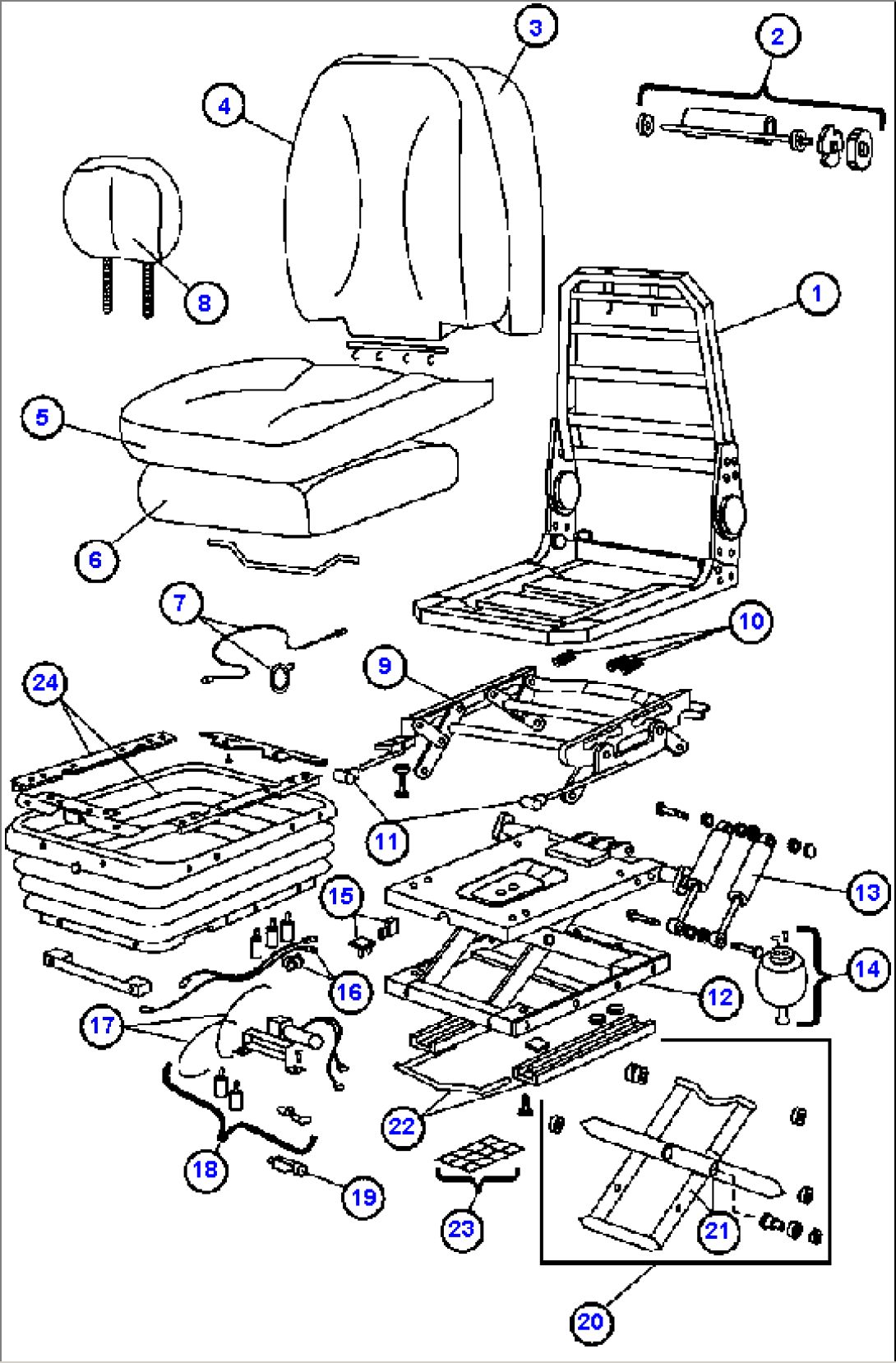

| Item | Part No. | Part Name | Qty | Serial No. |
| 0 | 416-57-A1140 | UPPER ASSEMBLY KIT | ||
| 1 | BF4839 | FRAME ASSEMBLY KIT | ||
| 2 | BF4840 | LUMBAR SUPPORT KIT | ||
| 3 | 195-57-A0300 | BACK FOAM KIT | ||
| 4 | BF4841 | BACK COVER KIT | ||
| 5 | BF4842 | SEAT COVER KIT | ||
| 6 | 195-57-A0500 | SEAT FOAM KIT | ||
| 7 | 206-57-A1470 | RECLINER CABLE KIT | ||
| 8 | BF4851 | HEADREST KIT | ||
| 9 | 195-57-A0800 | HEIGHT RISER ASSEMBLY KIT | ||
| 10 | 195-57-A0010 | HEIGHT RISER SPRING KIT | ||
| 11 | 206-57-A1560 | HANDLE KIT | ||
| 12 | BF4844 | SUSPENSION ASSEMBLY KIT | ||
| 13 | BF4843 | DAMPER KIT | ||
| 14 | 421-960-A460 | AIR SPRING KIT | ||
| 15 | 195-57-A0310 | BUMP STOP KIT | ||
| 16 | BF4849 | HARNESS KIT | ||
| 17 | BF4847 | AIR PIPE KIT | ||
| 18 | BF4846 | COMPRESSOR KIT - 24V | ||
| 19 | BF4848 | KNOB KIT | ||
| 20 | 421-960-A490 | BEARING KIT | ||
| 21 | 421-960-A510 | LEVER/CENTER PIVOT KIT | ||
| 22 | BF4845 | FORE AND AFT ADJUSTMENT KIT | ||
| 23 | BF4850 | SPACER KIT | ||
| 24 | 421-960-A470 | SUSPENSION COVER KIT | ||
| NS|26 | NOTE: NS = NOT SHOWN | |||
| NS|27 | PB7034 | SEAL, CABLE | ||
| NS|28 | PB7040 | SLEEVE, TERMINAL | ||
| NS|29 | PB7743 | CONNECTOR, FEMALE |
