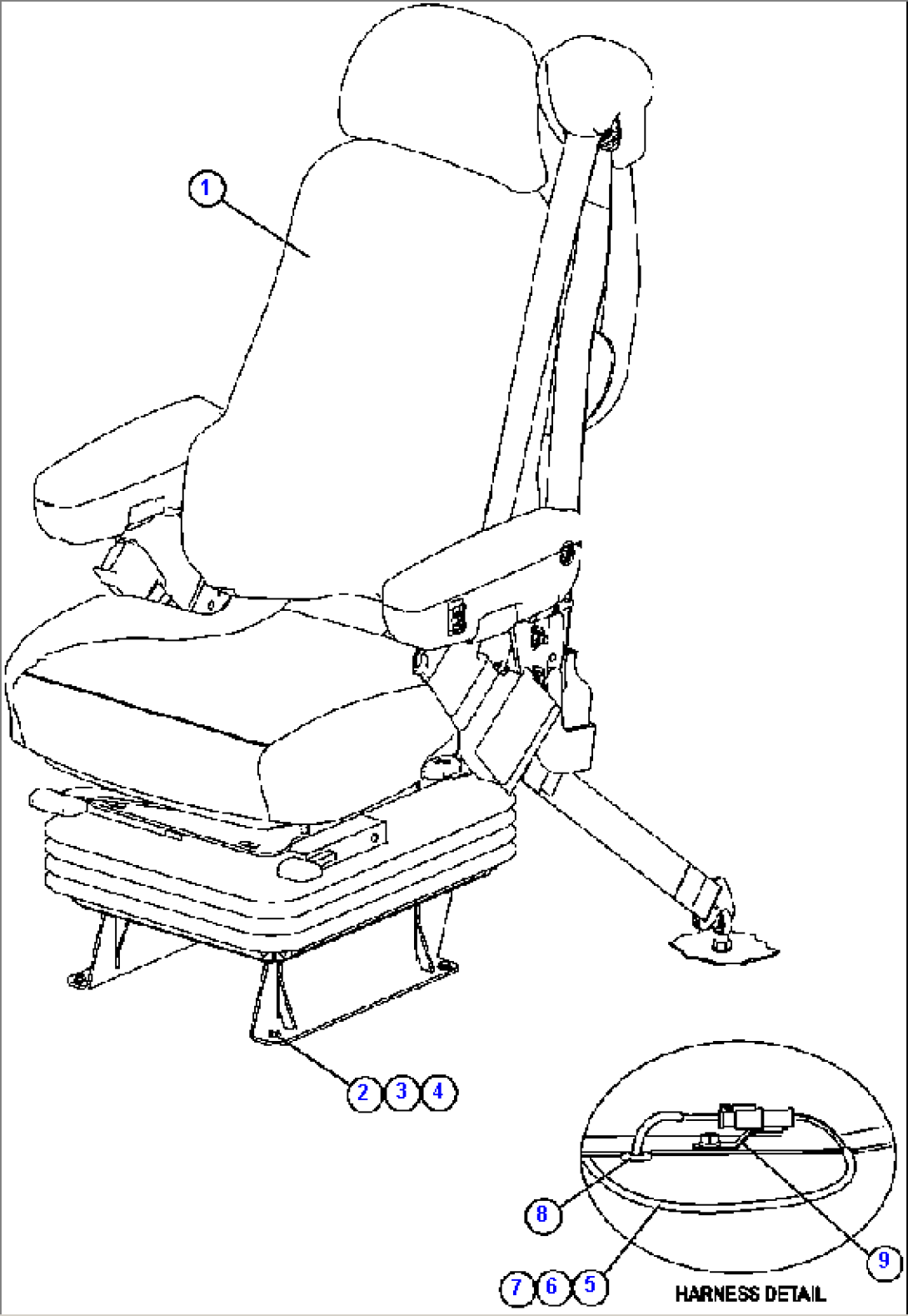

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC2730 | SEAT ASSEMBLY (SEE INDEX) | ||
| 2 | TD0794 | CAPSCREW - 5/16" - 18NC X 3/4" | ||
| 3 | TV0177 | FLAT WASHER - 5/16" | ||
| 4 | SC4174 | LOCKWASHER - 5/16" | ||
| 5 | EM2889 | HARNESS, SEAT | ||
| 6 | EM8613 | HARNESS, SEAT JUMPER | ||
| 7 | VH5017 | TYRAP | ||
| 8 | VP4693 | GROMMET, RUBBER | ||
| 9 | 08193-21012 | CLIP |
