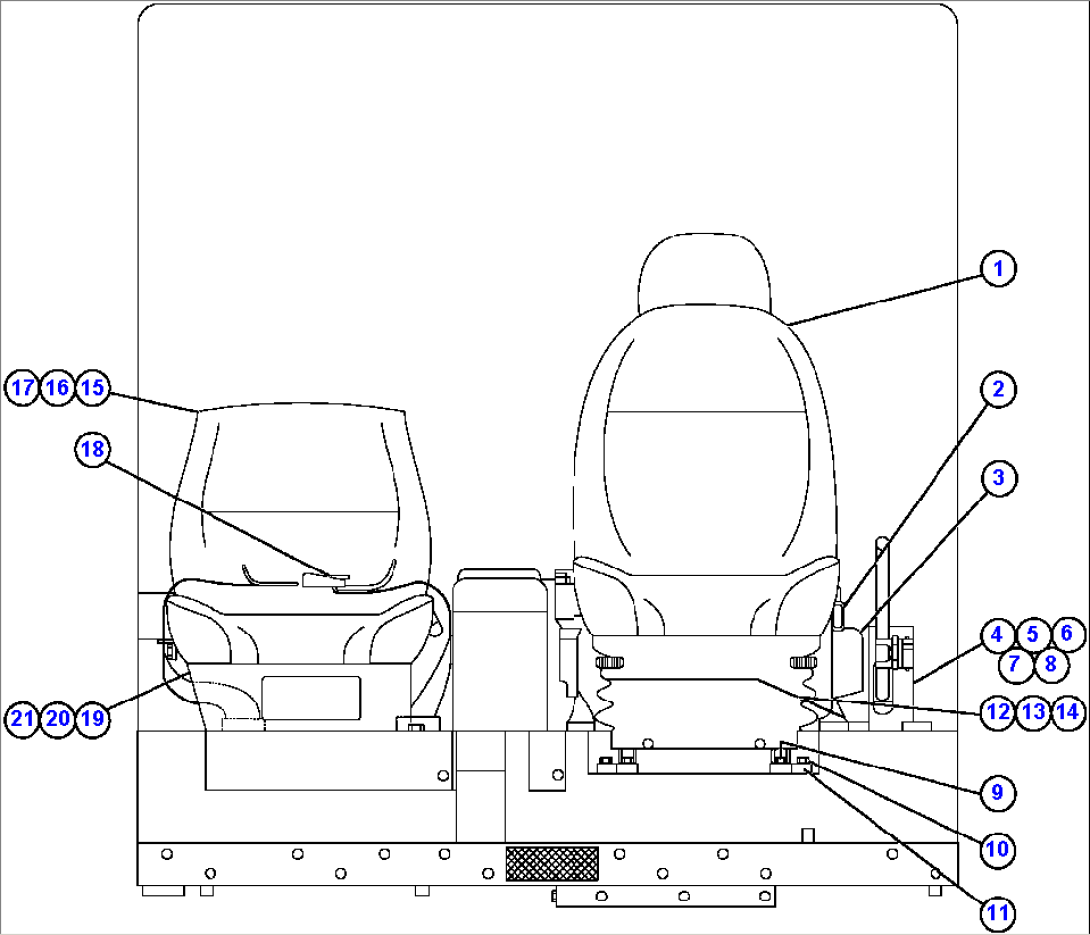

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EJ1527 | SEAT, OPERATOR (SEE INDEX) | ||
| 2 | PC0564 | BELT, SEAT - RETRACTABLE | ||
| 3 | PC0541 | BELT SET, TETHER | ||
| 4 | EH3220 | COVER | ||
| 5 | EH3221 | LEVER | ||
| 6 | EH3222 | BRACKET | ||
| 7 | EH4903 | PLATE | ||
| 8 | 01023-20612 | SCREW | ||
| 9 | 01252-60816 | CAPSCREW | ||
| 10 | 01435-01235 | CAPSCREW | ||
| 11 | EH3219 | PLATE | ||
| 12 | EH7881 | CABLE | ||
| 13 | 08034-00519 | BAND | ||
| 14 | 08036-01014 | CLIP | ||
| 15 | PC0620 | SEAT, PASSENGER (SEE INDEX) | ||
| 16 | MM0582 | CAPSCREW | ||
| 17 | MM0459 | WASHER | ||
| 18 | 488057 | BELT, SEAT | ||
| 19 | 561-57-A1111 | RISER, SEAT | ||
| 20 | 01010-81225 | CAPSCREW | ||
| 21 | 01643-31232 | WASHER |
