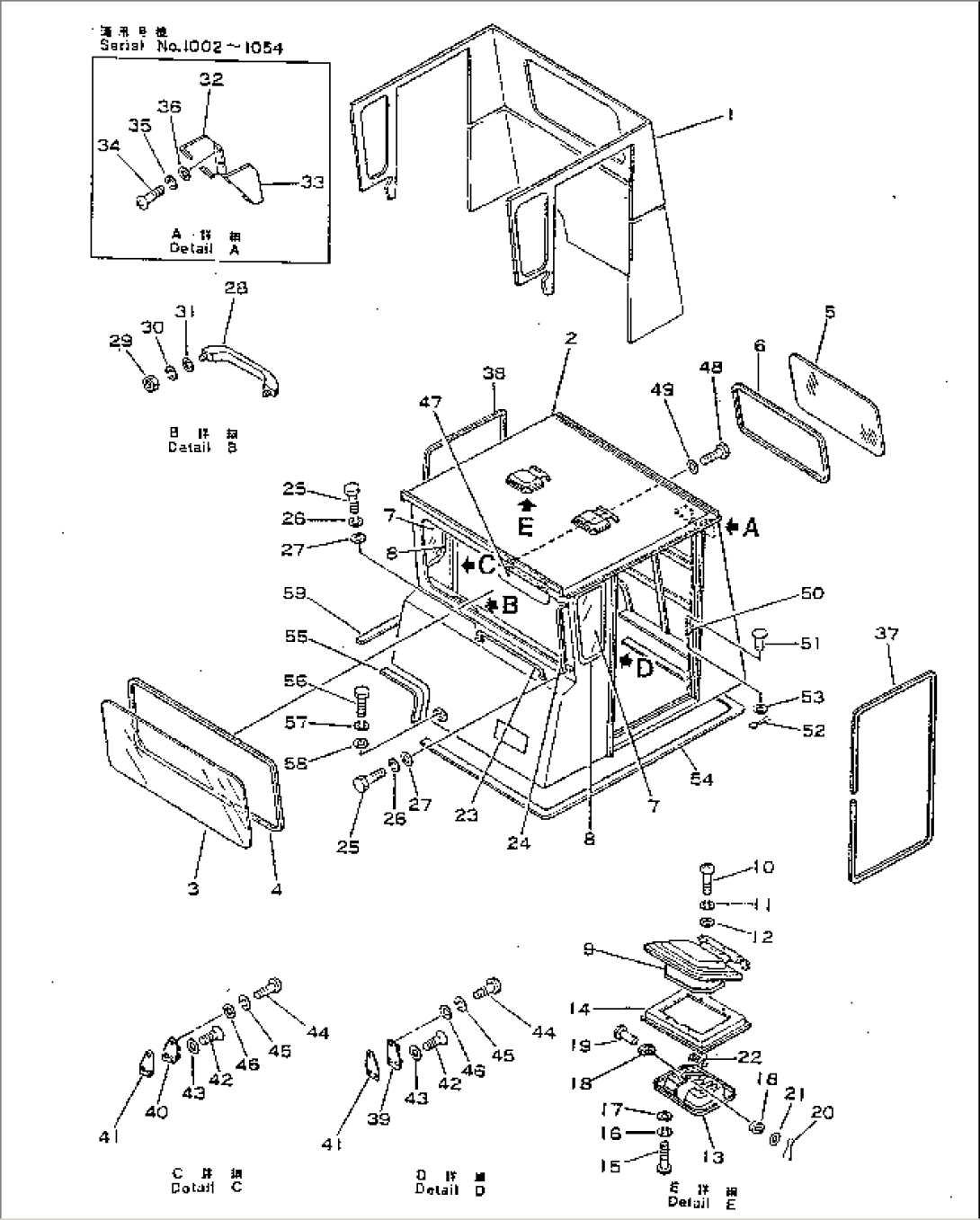

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-54-23010 | CAB ASS'Y | 1002- | ||
| 566-54-23101 | CAB ASS'Y | 1044- | ||
| 566-54-23100 | CAB ASS'Y | 1002-1043 | ||
| 566-54-23201 | CAB ASS'Y | 1044- | ||
| 565-54-23200 | CAB ASS'Y | 1002-1043 | ||
| 1 | 566-54-23980 | LEATHER | 1002- | |
| 2 | 566-54-23111 | CAB | 1044- | |
| 2 | 566-54-23110 | CAB | 1002-1043 | |
| 3 | 566-54-13121 | GLASS | 1002- | |
| 4 | 566-54-23750 | RUBBER | 1002- | |
| 5 | 566-54-13131 | GLASS | 1002- | |
| 6 | 566-54-23760 | RUBBER | 1002- | |
| 7 | 566-54-23910 | GLASS | 1002- | |
| 8 | 566-54-23770 | RUBBER | 1002- | |
| 9 | 566-54-23600 | COVER | 1002- | |
| 10 | 01220-30612 | SCREW | 1002- | |
| 11 | 01602-20619 | WASHER | 1002- | |
| 12 | 01642-20608 | WASHER | 1002- | |
| 13 | 566-54-23640 | FRAME ASS'Y | 1002- | |
| 14 | 566-54-23630 | RETAINER | 1002- | |
| 15 | 01220-30512 | SCREW | 1002- | |
| 16 | 01601-20513 | WASHER | 1002- | |
| 17 | 01642-20508 | WASHER | 1002- | |
| 18 | 566-54-23660 | BUSHING | 1002- | |
| 19 | 04205-10518 | PIN | 1002- | |
| 20 | 04050-11210 | PIN | 1002- | |
| 21 | 01641-20508 | WASHER | 1002- | |
| 22 | 566-54-23670 | SPRING | 1002- | |
| 23 | 566-54-23710 | RAIL | 1002- | |
| 24 | 566-54-23720 | RAIL | 1002- | |
| 25 | 01010-50820 | BOLT | 1002- | |
| 26 | 01602-20825 | WASHER | 1002- | |
| 27 | 01642-20810 | WASHER | 1002- | |
| 28 | 566-54-13650 | GRIP | 1002- | |
| 29 | 01580-10806 | NUT | 1002- | |
| 30 | 01602-20825 | WASHER | 1002- | |
| 31 | 01642-20810 | WASHER | 1002- | |
| 32 | 566-54-23840 | BRACKET,R.H. | 1002-1054 | |
| 33 | 566-54-23850 | BRACKET,L.H. | 1002-1054 | |
| 34 | 01220-30616 | SCREW | 1002-1054 | |
| 35 | 01602-20619 | WASHER | 1002-1054 | |
| 36 | 01642-20608 | WASHER | 1002-1054 | |
| 37 | 566-54-24150 | SEAL | 1002- | |
| 38 | 566-54-25150 | SEAL | 1002- | |
| 39 | 566-54-24511 | STRIKER | 1044- | |
| 39 | 566-54-24510 | STRIKER | 1002-1043 | |
| 40 | 566-54-25511 | STRIKER | 1044- | |
| 40 | 566-54-25510 | STRIKER | 1002-1043 | |
| 41 | 566-54-24521 | SHIM, 0.8MM | 1044- | |
| 41 | 566-54-24520 | SHIM | 1002-1043 | |
| 42 | 01225-30816 | SCREW | 1044- | |
| 42 | 01225-30630 | SCREW | 1002-1043 | |
| 43 | 566-54-13570 | WASHER | 1044- | |
| 43 | 566-54-13580 | WASHER | 1002-1043 | |
| 44 | 01220-30616 | SCREW | 1002-1043 | |
| 45 | 01602-20619 | WASHER | 1002-1043 | |
| 46 | 01642-20608 | WASHER | 1002-1043 | |
| 47 | 566-54-13660 | SUNVISOR | 1002- | |
| 48 | 01225-30410 | SCREW | 1002- | |
| 49 | 566-54-13590 | WASHER | 1002- | |
| 50 | 566-54-24310 | CHECK ARM ASS'Y | 1002- | |
| 51 | 04205-10618 | PIN | 1002- | |
| 52 | 04050-11610 | PIN | 1002- | |
| 53 | 01641-20608 | WASHER | 1002- | |
| 54 | 566-54-16341 | SEAL | 1055- | |
| 54 | 566-54-16340 | SEAL | 1002-1054 | |
| 55 | 566-54-16381 | SEAL | 1055- | |
| 55 | 566-54-16380 | SEAL | 1002-1054 | |
| 56 | 01010-51225 | BOLT | 1002- | |
| 57 | 01602-21236 | WASHER | 1002- | |
| 58 | 01643-21232 | WASHER | 1002- | |
| 59 | 566-54-16510 | SEAL | 1002- |
