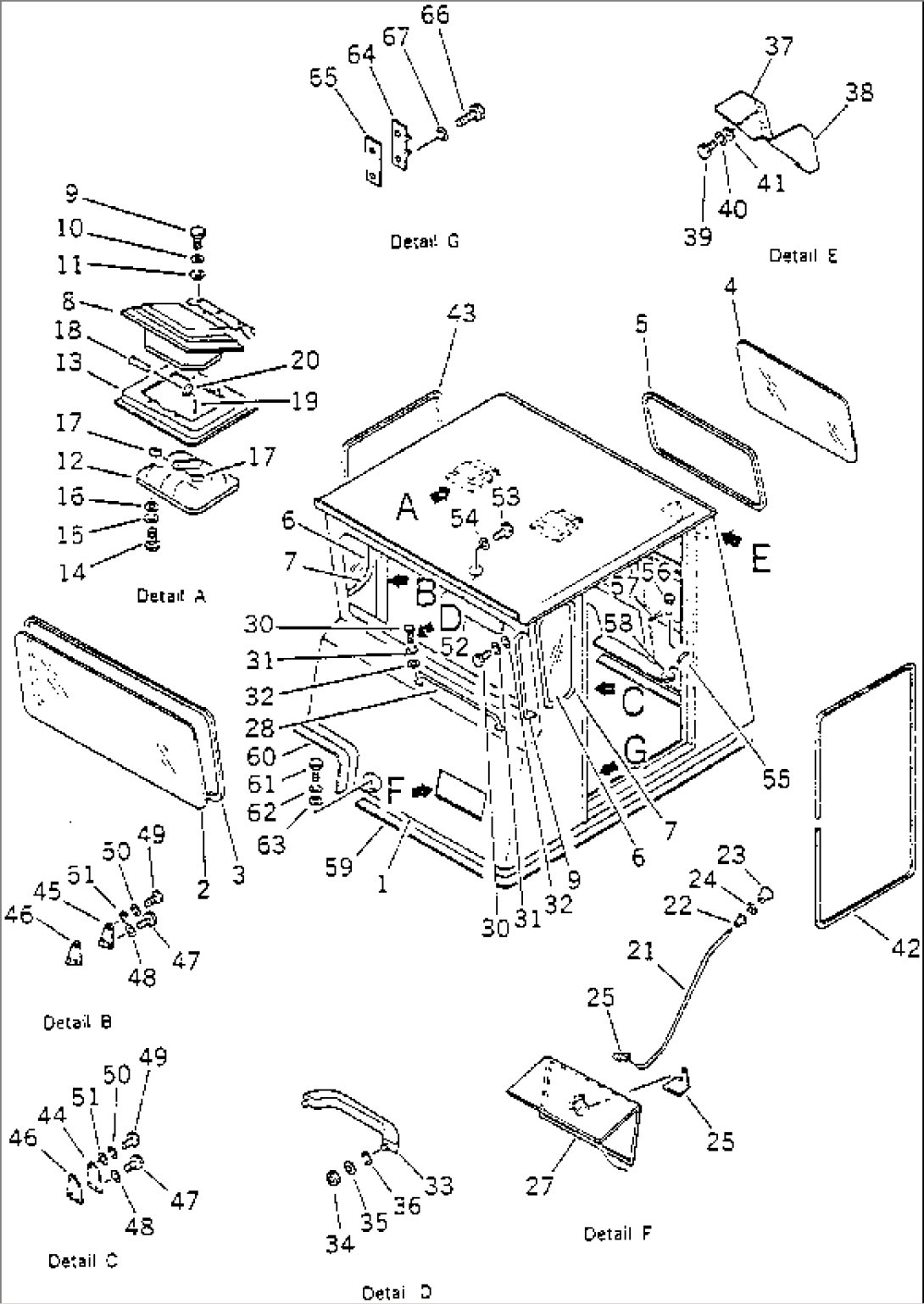

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-54-23001 | CAB ASS'Y | 1002- | ||
| 566-54-23101 | CAB ASS'Y | 1002- | ||
| 1 | 566-54-23111 | CAB | 1002- | |
| 2 | 566-54-13121 | GLASS | 1002- | |
| 3 | 566-54-23750 | RUBBER | 1002- | |
| 4 | 566-54-13131 | GLASS | 1002- | |
| 5 | 566-54-23760 | RUBBER | 1002- | |
| 6 | 566-54-23910 | GLASS | 1002- | |
| 7 | 566-54-23770 | RUBBER | 1002- | |
| 8 | 566-54-23601 | COVER | 1002- | |
| 9 | 01220-30612 | SCREW | 1002- | |
| 10 | 01602-20619 | WASHER | 1002- | |
| 11 | 01642-20608 | WASHER | 1002- | |
| 12 | 566-54-23641 | FRAME ASS'Y | 1002- | |
| 13 | 566-54-23630 | RETAINER | 1002- | |
| 14 | 01220-30512 | SCREW | 1002- | |
| 15 | 01601-20508 | WASHER | 1002- | |
| 16 | 01642-20513 | WASHER | 1002- | |
| 17 | 566-54-23661 | BUSHING | 1002- | |
| 18 | 566-54-23680 | PIN | 1002- | |
| 19 | 04050-11210 | PIN | 1002- | |
| 20 | 01641-20508 | WASHER | 1002- | |
| 21 | 566-54-23520 | ROD | 1002- | |
| 22 | 566-54-23560 | BUSHING | 1002- | |
| 23 | 566-54-23550 | KNOB | 1002- | |
| 24 | 01580-10605 | NUT | 1002- | |
| 25 | 566-54-23540 | CONNECTOR | 1002- | |
| 26 | 566-54-23510 | SPRING | 1002- | |
| 27 | 566-54-23530 | SEAL | 1002- | |
| 28 | 566-54-23710 | RAIL | 1002- | |
| 29 | 566-54-23720 | RAIL | 1002- | |
| 30 | 01010-50820 | BOLT | 1002- | |
| 31 | 01602-20825 | WASHER | 1002- | |
| 32 | 01642-20810 | WASHER | 1002- | |
| 33 | 566-54-13650 | GRIP | 1002- | |
| 34 | 01580-10806 | NUT | 1002- | |
| 35 | 01602-20825 | WASHER | 1002- | |
| 36 | 01642-20810 | WASHER | 1002- | |
| 37 | 566-54-23841 | BRACKET,R.H. | .- | |
| 566-54-23840 | BRACKET,R.H. | 1002-. | ||
| 38 | 566-54-23851 | BRACKET,L.H. | .- | |
| 566-54-23850 | BRACKET,L.H. | 1002-. | ||
| 39 | 01220-30616 | SCREW | 1002- | |
| 40 | 01602-20619 | WASHER | 1002- | |
| 41 | 01642-20608 | WASHER | 1002- | |
| 42 | 566-54-24150 | SEAL,DOOR¤ L.H. | 1002- | |
| 43 | 566-54-25150 | SEAL,DOOR¤ R.H. | 1002- | |
| 44 | 566-54-24511 | STRIKER | 1002- | |
| 45 | 566-54-25511 | STRIKER | 1002- | |
| 46 | 566-54-24521 | SHIM¤ 0.8MM | 1002- | |
| 47 | 01225-30625 | SCREW | 1002- | |
| 48 | 566-54-13580 | WASHER | 1002- | |
| 49 | 01220-30616 | SCREW | 1002- | |
| 50 | 01602-20619 | WASHER | 1002- | |
| 51 | 01642-20608 | WASHER | 1002- | |
| 52 | 566-54-13660 | SUNVISOR | 1002- | |
| 53 | 01225-30410 | SCREW | 1002- | |
| 54 | 566-54-13590 | WASHER | 1002- | |
| 55 | 566-54-24310 | CHECK ARM ASS'Y | 1002- | |
| 56 | 04205-10618 | PIN | 1002- | |
| 57 | 04050-11610 | PIN | 1002- | |
| 58 | 01641-20608 | WASHER | 1002- | |
| 59 | 566-54-16510 | SEAL | .- | |
| 566-54-16341 | SEAL | 1002-. | ||
| 60 | 566-54-16381 | SEAL | 1002- | |
| 61 | 01010-51225 | BOLT | 1002- | |
| 62 | 01602-21236 | WASHER | 1002- | |
| 63 | 01643-21232 | WASHER | 1002- | |
| 64 | 566-54-23460 | DOVE TAIL | 1002- | |
| 65 | 566-54-23480 | PLATE | 1002- | |
| 66 | 01220-30625 | SCREW | 1002- | |
| 67 | 01602-20619 | WASHER | 1002- |
