| Item | Part No. | Part Name | Qty | Serial No. |

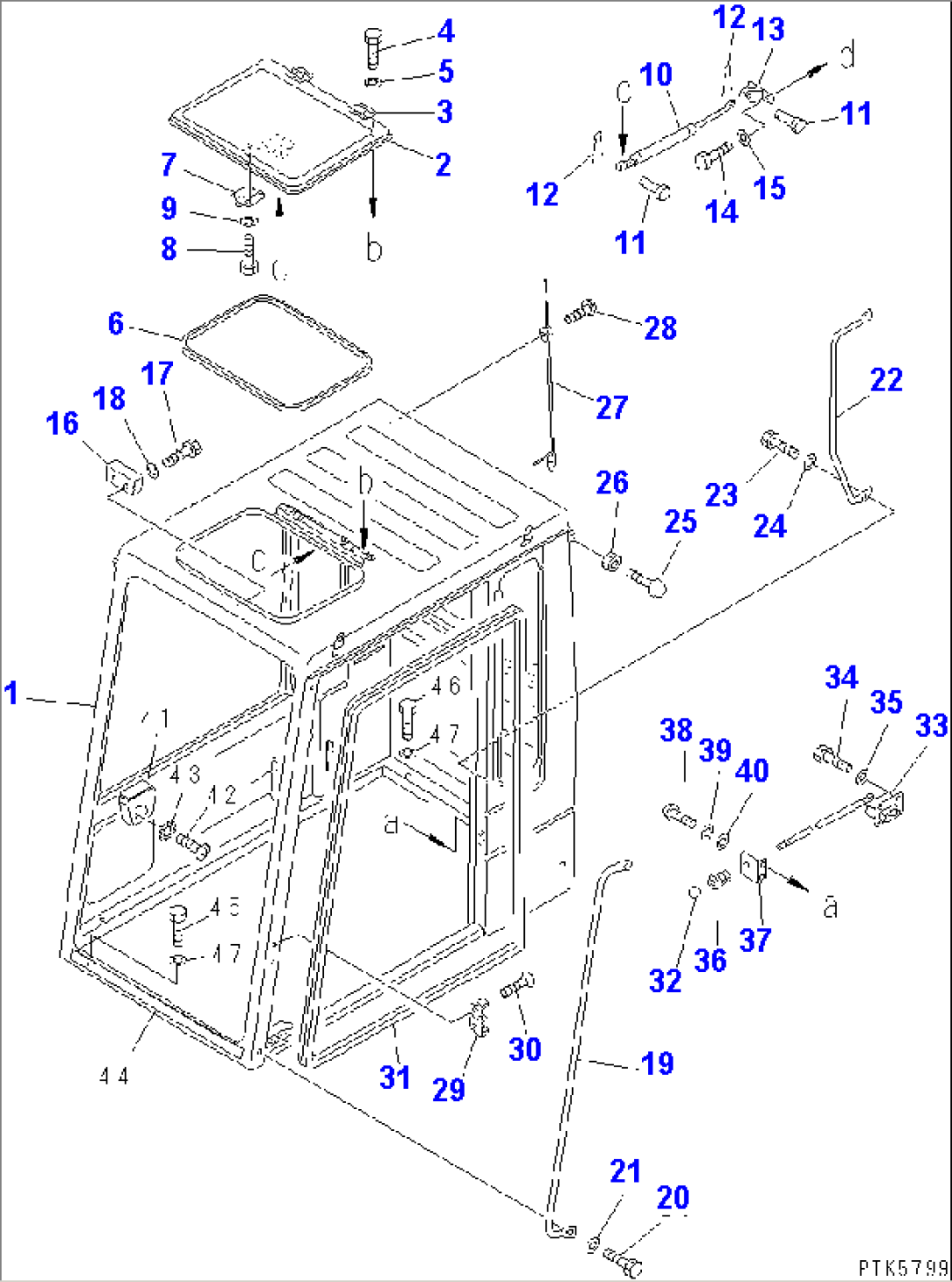

| 205-54-00254 | OPERATOR'S CAB ASS'Y | 4501- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5301 TO 5311. | ||||
| 1 | 205-54-71114 | CAB | 4501- | |
| 2 | 205-54-71142 | COVER | 4501- | |
| 3 | 205-54-72680 | HINGE (WELDED) | 4501- | |
| 4 | 01010-50612 | BOLT | 4501- | |
| 5 | 01643-30623 | WASHER | 4501- | |
| 6 | 205-54-71551 | SEAL | 4501- | |
| 7 | 205-54-72470 | LOCK ASS'Y | 4501- | |
| 8 | 01010-50616 | BOLT | 4501- | |
| 9 | 01643-30623 | WASHER | 4501- | |
| 10 | 205-54-63650 | GAS SPRING ASS'Y | 4501- | |
| 11 | 04205-10825 | PIN | 4501- | |
| 12 | 04050-12012 | PIN,COTTER | 4501- | |
| 13 | 205-54-72511 | BRACKET | 4501- | |
| 14 | 01010-50635 | BOLT | 4501- | |
| 15 | 01643-30623 | WASHER | 4501- | |
| 16 | 205-54-72520 | BRACKET | 4501- | |
| 17 | 01010-50616 | BOLT | 4501- | |
| 18 | 01643-30623 | WASHER | 4501- | |
| 19 | 205-54-72531 | GRIP | 4501- | |
| 20 | 01010-51025 | BOLT | 4501- | |
| 21 | 01643-31032 | WASHER | 4501- | |
| 22 | 205-54-72540 | GRIP | 4501- | |
| 23 | 01010-51025 | BOLT | 4501- | |
| 24 | 01643-31032 | WASHER | 4501- | |
| 25 | 09453-00002 | STOPPER | 4501- | |
| 26 | 01580-11210 | NUT | 4501- | |
| 27 | 205-06-62350 | ANTENNA ASS'Y | 4501- | |
| 28 | 01220-40420 | SCREW | 4501- | |
| 29 | 205-54-71731 | STRIKER | 4501- | |
| 30 | 205-54-72770 | SCREW | 4501- | |
| 31 | 205-54-71560 | TRIM | 4501- | |
| 32 | 205-54-72840 | KNOB | 4501- | |
| 33 | 205-54-72810 | LOCK ASS'Y | 4501- | |
| 34 | 01010-50620 | BOLT | 4501- | |
| 35 | 01643-30623 | WASHER | 4501- | |
| 36 | 205-54-72830 | GROMMET | 4501- | |
| 37 | 205-54-72820 | BRACKET | 4501- | |
| 38 | 01220-40620 | SCREW | 4501- | |
| 39 | 01602-20619 | WASHER,SPRING | 4501- | |
| 40 | 01641-20608 | WASHER | 4501- |
