| Item | Part No. | Part Name | Qty | Serial No. |
| 461-123 | CAB ASS'Y | 3001- | ||

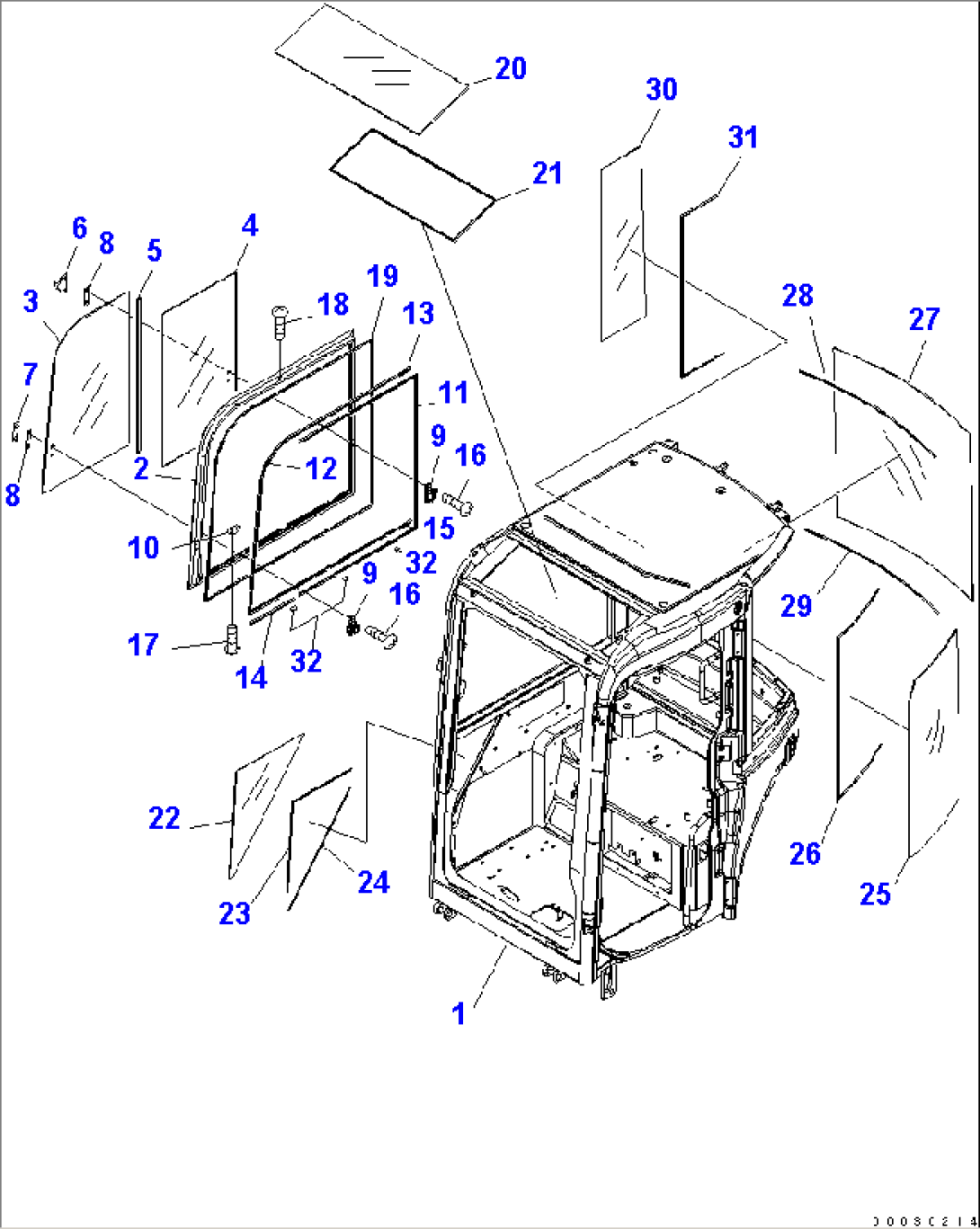

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-08A0. | ||||
| 1 | 459-778 | CAB | 3001- | |
| 461-496 | SASH ASS'Y | 3001- | ||
| 2 | 461-221 | FRAME ASS'Y | 3001- | |
| 3 | 457-821 | GLASS | 3001- | |
| 4 | 457-829 | GLASS | 3001- | |
| 5 | 458-656 | SEAL | 3001- | |
| 6 | 458-592 | RETAINER | 3001- | |
| 7 | 458-591 | RETAINER | 3001- | |
| 8 | 458-497 | PLATE | 3001- | |
| 9 | 457-976 | KNOB | 3001- | |
| 10 | 458-833 | STOPPER | 3001- | |
| 11 | 458-942 | CHANNEL | 3001- | |
| 12 | 457-637 | CHANNEL | 3001- | |
| 13 | 458-940 | CHANNEL | 3001- | |
| 14 | 458-941 | CHANNEL | 3001- | |
| 15 | 458-939 | CHANNEL | 3001- | |
| 16 | 458-639 | SCREW | 3001- | |
| 17 | 458-640 | SCREW | 3001- | |
| 18 | 458-638 | SCREW | 3001- | |
| 19 | 458-679 | SEAL | 3001- | |
| 20 | 457-648 | CLEAR PLATE | 3001- | |
| 21 | 458-653 | SEAL | 3001- | |
| 22 | 457-820 | GLASS | 3001- | |
| 23 | 458-668 | SEAL | 3001- | |
| 24 | 458-659 | SEAL | 3001- | |
| 25 | 457-828 | GLASS | 3001- | |
| 26 | 458-678 | SEAL | 3001- | |
| 27 | 457-827 | GLASS | 3001- | |
| 28 | 458-677 | SEAL | 3001- | |
| 29 | 458-672 | SEAL | 3001- | |
| 30 | 457-826 | GLASS | 3001- | |
| 31 | 458-666 | SEAL | 3001- | |
| 32 | 461-348 | SHEET | 3001- | |
| SERVICE PARTS | ||||
| 33 | 461-465 | PRIMER¤ 20ML,FOR CAB SIDE (NOT SHOWN) | 3001- | |
| 461-466 | PRIMER¤ 20ML,FOR SASH SIDE (NOT SHOWN) | 3001- | ||
| 461-464 | PRIMER¤ 150ML,FOR GLASS SIDE (NOT SHOWN) | 3001- | ||
| 34 | 461-048 | ADHESIVE¤ 320ML,FOR GLASS (NOT SHOWN) | 3001- | |
| 35 | 461-135 | CAULKING¤ 333ML,(NOT SHOWN) | 3001- |
