| Item | Part No. | Part Name | Qty | Serial No. |
| 415-54-15021 | OPERATOR'S CAB ASS'Y | ..- | ||
| 415-54-15020 | OPERATOR'S CAB ASS'Y | 10001-.. | ||

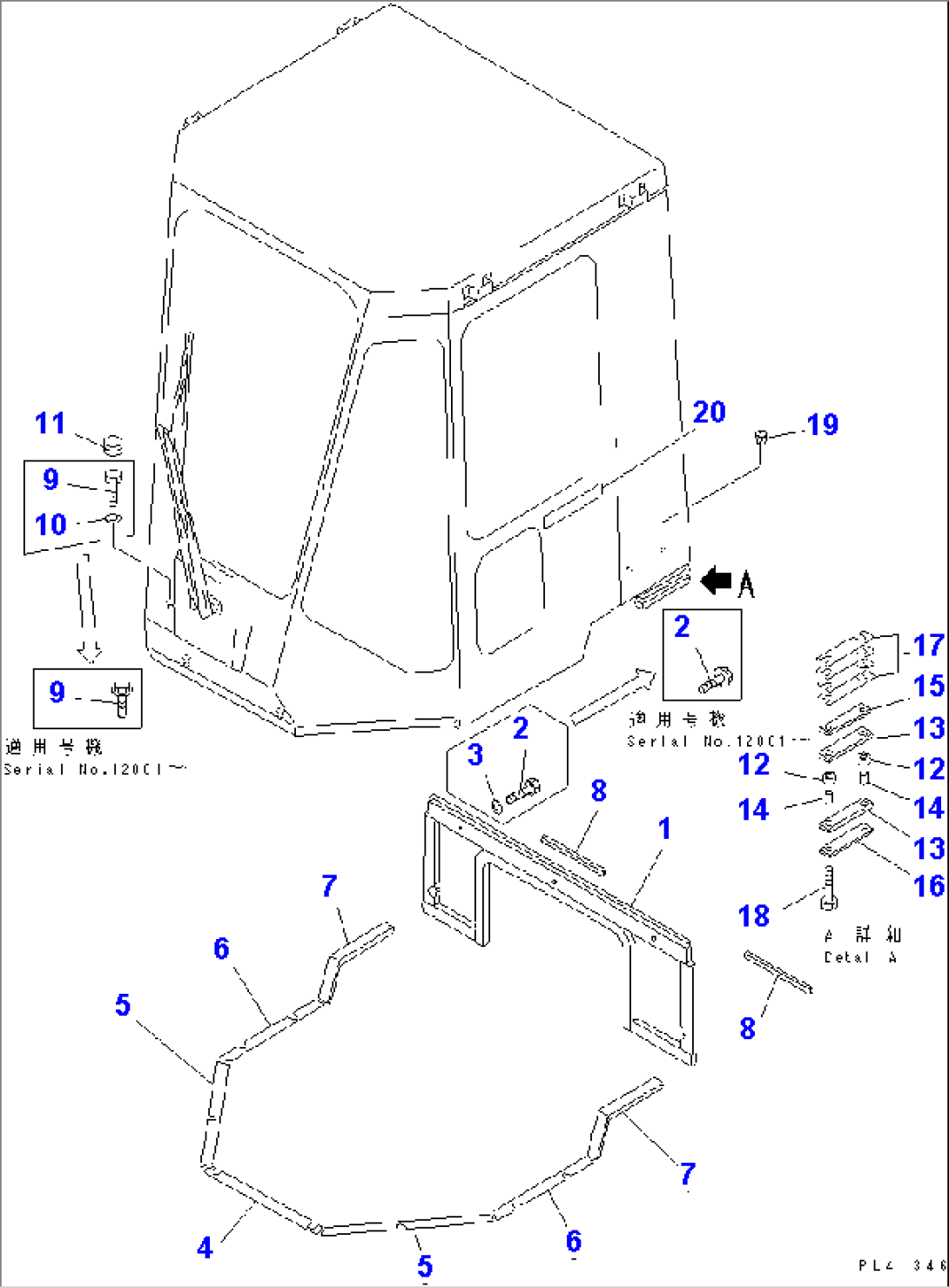

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5441 TO 5449. | ||||
| 1 | 415-54-15412 | PLATE | ..- | |
| 1 | 415-54-15411 | PLATE | 10001-.. | |
| 2 | 01435-00812 | BOLT | 12001- | |
| 2 | 01010-50816 | BOLT | 10001-11999 | |
| 3 | 01643-30823 | WASHER | 10001-11999 | |
| 4 | 415-54-15120 | SHEET | 10001- | |
| 5 | 415-54-15130 | SHEET | 10001- | |
| 6 | 415-54-15140 | SHEET | 10001- | |
| 7 | 415-54-15111 | SHEET | 10001- | |
| 8 | 415-54-15270 | SHEET | 10001- | |
| 9 | 01435-01250 | BOLT | 12001- | |
| 9 | 01010-51250 | BOLT | 10001-11999 | |
| 10 | 01643-31232 | WASHER | 10001-11999 | |
| 11 | 09415-02512 | CAP | 10001- | |
| 12 | 415-54-15320 | CUSHION | 10001- | |
| 13 | 417-54-15530 | CUSHION | 10001- | |
| 14 | 415-54-15330 | SPACER | 10001- | |
| 15 | 415-54-15430 | PLATE | 10001- | |
| 16 | 417-54-15550 | PLATE | 10001- | |
| 17 | 415-54-15310 | SHIM, 1.0MM | 10001- | |
| 18 | 01010-81265 | BOLT | 10001- | |
| 19 | 07049-02734 | PLUG | 10001- | |
| 20 | 09690-C0224 | PLATE, MARK,KOMATSU | .- | |
| 20 | \0\09690-50280 | PLATE, MARK,KOMATSU | 10001-. |
