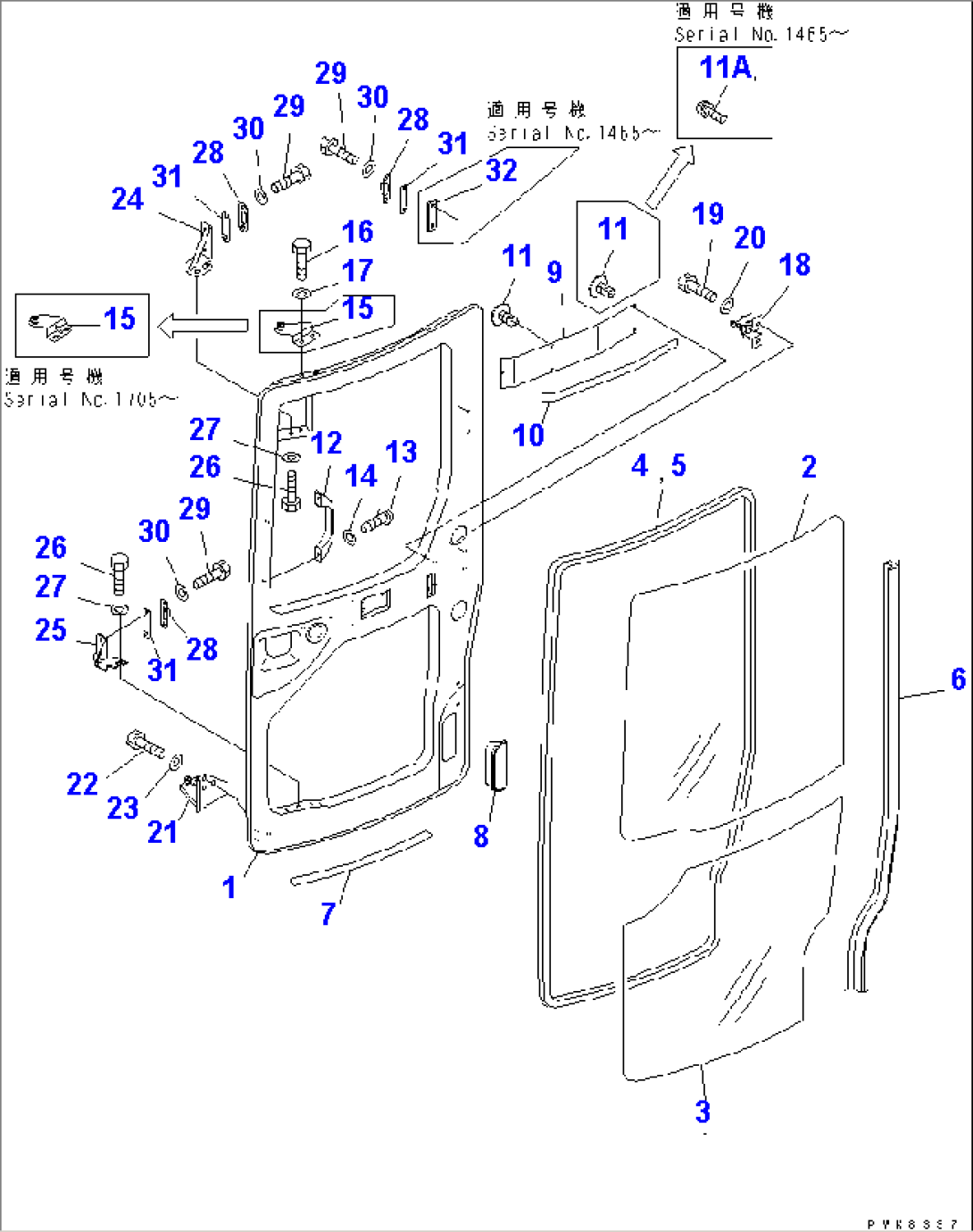

OPERATOR'S CAB (2/12) (DOOR 1/2)

Item	Part No.	Part Name	Qty	Serial No.
	(22F-54-00015)	CAB ASS'Y		4193-
	(22F-54-00014)	CAB ASS'Y		4058-4192
	(22F-54-00013)	CAB ASS'Y		4010-4057
	(22F-54-00012)	CAB ASS'Y		2101-4009
	(22F-54-00011)	CAB ASS'Y		1705-2100
	(22F-54-00010)	CAB ASS'Y		1001-1704
		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-12A0.
	22M-54-00022	DOOR ASS'Y		2101-
	22M-54-00021	DOOR ASS'Y		1705-2100
	22M-54-00020	DOOR ASS'Y		1001-1704
		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-02A0 AND K0210-03A0.
1	22M-54-14310	DOOR		1001-
2	22M-54-14340	GLASS,UPPER		1001-
3	22M-54-14350	GLASS,LOWER		1001-
4	20U-54-24411	DAM,(L=3850)		1001-
5	20U-54-24421	DAM,(L=500)		1001-
6	20U-54-24431	TRIM		1001-
7	22M-54-16350	SEAL		1001-
8	22M-54-14470	HANDLE		1001-
9	22M-54-14430	COVER		1001-
10	21W-54-34480	PACKING		1001-
11	22M-54-16340	CLIP		1465-
	22M-54-16340	CLIP		1001-1464
11A	01023-20612	SCREW		1465-
12	21J-54-16630	GRIP		1001-
13	01220-40512	SCREW		1001-
14	01601-20513	WASHER		1001-
15	22M-54-16323	UPPER ROLLER ASS'Y		2101-
	22M-54-16322	UPPER ROLLER ASS'Y		1705-2100
	22M-54-16321	ROLLER,UPPER		1001-1704
16	01010-80816	BOLT		1001-
17	01643-30823	WASHER		1001-
18	20U-54-24923	ROLLER ASS'Y		2101-
	20U-54-24922	ROLLER ASS'Y,CENTER		1001-2100
19	01010-D0816	BOLT		1001-
20	01643-70823	WASHER		1001-
21	20U-54-24934	ROLLER ASS'Y,LOWER		1001-
22	01010-D0816	BOLT		1001-
23	01643-70823	WASHER		1001-
24	22M-54-14950	BRACKET		1001-
25	22M-54-14460	BRACKET		1001-
26	01010-D1225	BOLT		1001-
27	01643-71232	WASHER		1001-
28	20U-54-25321	STRIKER		1001-
29	01010-80610	BOLT		1001-
30	01641-20608	WASHER		1001-
31	20U-54-25341	SHIMÂ¤ 1.0MM		1001-
32	22M-54-14D70	SHEET		1465-
