| Item | Part No. | Part Name | Qty | Serial No. |

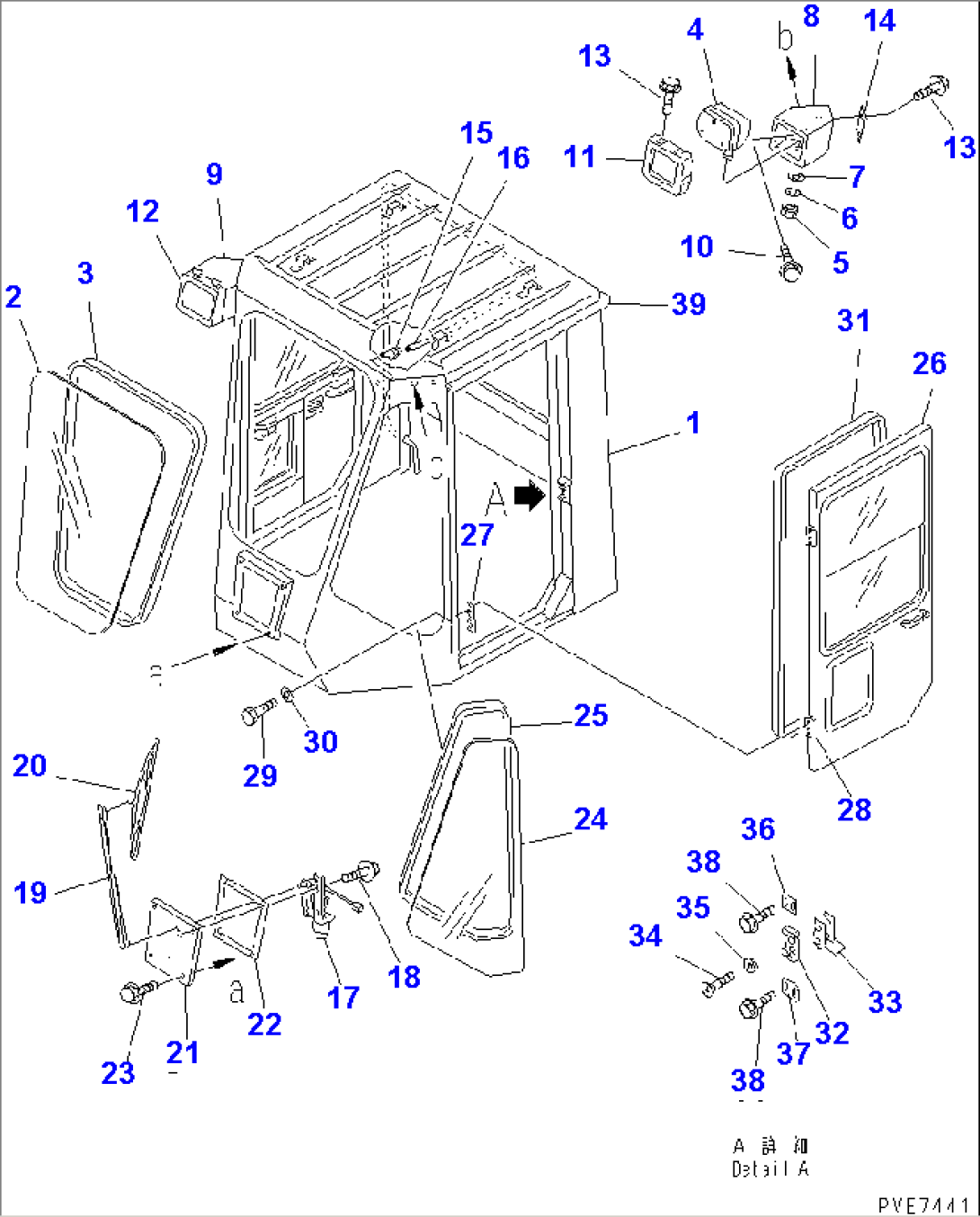

| (428-56-11000) | OPERATOR'S CAB ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5511 TO 5516. | ||||
| 1 | \6\ | CAB | 10001- | |
| 2 | 421-925-1110 | GLASS | 10001- | |
| 3 | 421-925-1120 | STRIP,WEATHER | 10001- | |
| 4 | 22W-06-12381 | LAMP ASS'Y | 10001- | |
| 4 | 22W-06-12170 | BULB | 10001- | |
| 5 | 01582-11411 | NUT | 10001- | |
| 6 | 01602-21442 | WASHER,SPRING | 10001- | |
| 7 | 01643-31445 | WASHER | 10001- | |
| 8 | 419-56-11310 | BOX,L.H. | 10001- | |
| 9 | 419-56-11320 | BOX,R.H. | 10001- | |
| 10 | 01435-01220 | BOLT | 10001- | |
| 11 | 425-54-15881 | COVER,L.H. | 10001- | |
| 12 | 425-54-15891 | COVER,R.H. | 10001- | |
| 13 | 01435-00612 | BOLT | 10001- | |
| 14 | 419-56-11330 | PLATE | 10001- | |
| 15 | 421-54-15430 | NOZZLE | 10001- | |
| 16 | 421-54-15440 | HOSE, 4300MM | 10001- | |
| 17 | 419-54-15881 | MOTOR,WIPER | 10001- | |
| 17 | 01582-11008 | NUT | 10001- | |
| 18 | 01435-00612 | BOLT | 10001- | |
| 19 | 426-54-15233 | ARM,WIPER | 10001- | |
| 20 | 425-54-15250 | BLADE,WIPER | 10001- | |
| 20 | 425-56-21220 | RUBBER | 10001- | |
| 21 | 421-56-11171 | COVER,MOTOR | 10001- | |
| 22 | 421-56-11181 | SEAT | 10001- | |
| 23 | 01435-00820 | BOLT | 10001- | |
| 24 | 421-56-11131 | GLASS | 10001- | |
| 25 | 421-56-11140 | STRIP,WEATHER | 10001- | |
| 26 | (421-56-11502) | DOOR ASS'Y,L.H. | 10001- | |
| 26 | (421-56-11702) | DOOR ASS'Y,R.H. | 10001- | |
| 27 | 421-56-11830 | SHIM, 0.5MM | 10001- | |
| 28 | 421-56-11791 | HINGE | 10001- | |
| 29 | 01010-80820 | BOLT | 10001- | |
| 30 | 01643-30823 | WASHER | 10001- | |
| 31 | 421-54-15730 | SEAL,DOOR | 10001- | |
| 32 | 421-54-15740 | STRIKER,L.H. | 10001- | |
| 32 | 421-54-15750 | STRIKER,R.H. | 10001- | |
| 33 | 419-54-15690 | PLATE | 10001- | |
| 34 | 01224-40820 | SCREW | 10001- | |
| 35 | 421-54-15760 | WASHER | 10001- | |
| 36 | 425-54-15680 | PLATE | 10001- | |
| 37 | 425-54-15690 | PLATE | 10001- | |
| 38 | 01435-00816 | BOLT | 10001- | |
| 39 | 421-56-11361 | SEAL,RUBBER | 10001- |
