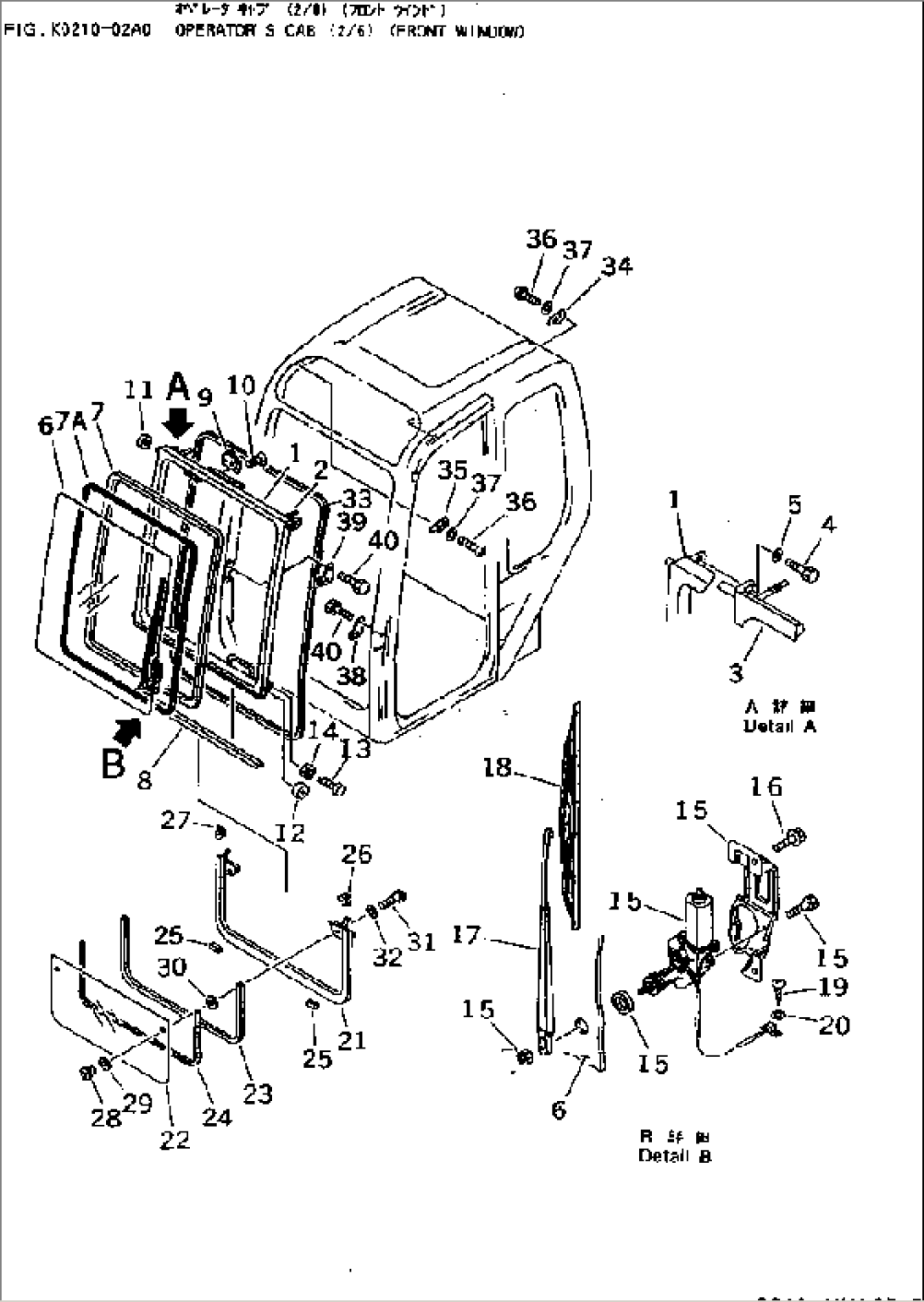

OPERATOR'S CAB (2/6) (FRONT WINDOW)

Item	Part No.	Part Name	Qty	Serial No.
	(20T-54-00761)	CAB ASS'Y		25603-
	(\0\20T-54-00760)	CAB ASS'Y		18001-25602
		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-06A0.
1	20T-54-74121	FRAME		18001-
2	20T-54-75270	LATCH ASS'Y,L.H.		18001-
3	20T-54-75280	LATCH ASS'Y,R.H.		18001-
4	20Y-54-14750	BOLT		18001-
5	01643-70823	WASHER		18001-
6	20T-54-74161	GLASS		18001-
7	20T-54-74171	INSULATOR,RUBBER		18001-
7A	20T-54-75610	INSULATOR,ZIPPER		18001-
8	20T-54-74190	INSULATOR		18001-
9	20Y-54-14310	STRIKER		18001-
10	20Y-54-14280	SCREW		18001-
11	20T-54-74220	ROLLERÂ¤ 18.0MM		18001-
12	20T-54-74230	ROLLERÂ¤ 26.0MM		18001-
13	20Y-54-14290	STOPPER		18001-
14	20T-54-74550	NUT		18001-
15	20T-54-74970	WIPER MOTOR ASS'Y		18001-
16	20Y-54-14360	BOLT		18001-
17	20T-54-74980	ARM,WIPER		18001-
18	20T-54-74990	BLADE,WIPER		18001-
19	01370-00412	SCREW		18001-
20	01641-20405	WASHER		18001-
21	20T-54-74151	FRAME		18001-
22	20T-54-74240	GLASS		18001-
23	20T-54-74250	INSULATOR,RUBBER		18001-
24	20T-54-75620	INSULATOR,ZIPPER		18001-
25	20T-54-74260	INSULATOR		18001-
26	20T-54-74750	INSULATOR,L.H.		18001-
27	20T-54-74760	INSULATOR,R.H.		18001-
28	20T-54-74870	NUT		18001-
29	20T-54-74880	GROMMET		18001-
30	20T-54-74890	GROMMET		18001-
31	01225-70620	SCREW		18001-
32	20Y-54-14330	WASHER		18001-
33	20T-54-74341	INSULATOR		18001-
34	20T-54-74291	STOPPER,L.H.		18001-
35	20T-54-74321	STOPPER,R.H.		18001-
36	01220-70816	SCREW		18001-
37	01641-20812	WASHER		18001-
38	20T-54-74311	STOPPER,L.H.		18001-
39	20T-54-74331	STOPPER,R.H.		18001-
40	20Y-54-14280	SCREW		18001-
