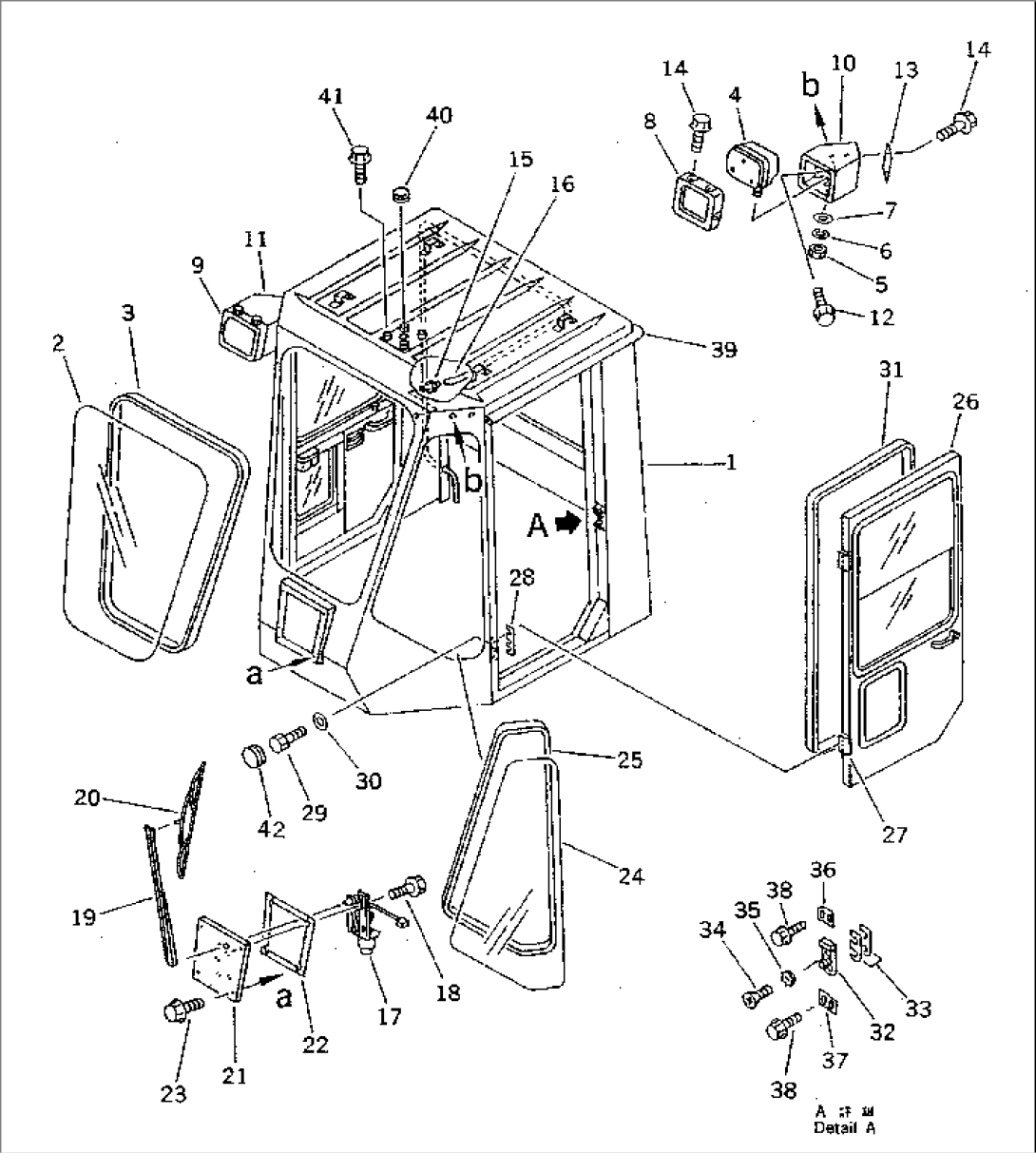

OPERATOR'S CAB (2/6) (FRONT)(#10501-)

Item	Part No.	Part Name	Qty	Serial No.
	(427-56-11050)	OPERATOR'S CAB ASS'Y		10501-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5431A TO 5436A.
1	\6\	CAB		10501-
2	421-56-11110	GLASS		10501-
3	421-56-11120	STRIP,WEATHER		10501-
4	22W-06-12381	LAMP ASS'Y		10501-
	22W-06-12170	BULB		10001-
5	01582-11411	NUT		10501-
6	01602-21442	WASHER,SPRING		10501-
7	01643-31445	WASHER		10501-
8	425-54-15881	COVER,L.H.		10001-
9	425-54-15891	COVER,R.H.		10001-
10	419-56-11310	BOX,L.H.		10501-
11	419-56-11320	BOX,R.H.		10501-
12	01435-01220	BOLT		10501-
13	419-56-11330	PLATE		10501-
14	01435-00612	BOLT		10501-
15	421-54-15430	NOZZLE		10001-
16	421-54-15440	HOSE		10001-
17	419-54-15881	MOTOR,WIPER		10501-
	01582-11008	NUT		10501-
18	01435-00612	BOLT		10501-
19	426-54-15233	ARM,WIPER		10501-
20	425-54-15250	BLADE,WIPER		10001-
	425-56-21220	RUBBER		10001-
21	421-56-11171	COVER,MOTOR		10501-
22	421-56-11181	SEAT		10501-
23	01435-00820	BOLT		10501-
24	421-56-11131	GLASS		10501-
25	421-56-11140	STRIP,WEATHER		10501-
26	(427-56-11660)	DOOR ASS'Y,L.H.		10501-
	(427-56-11670)	DOOR ASS'Y,R.H.		10501-
27	421-56-11791	HINGE		10501-
28	421-56-11830	SHIMÂ¤ 0.5MM		10501-
29	01010-80820	BOLT		10001-
30	01643-30823	WASHER		10001-
31	421-54-15730	SEAL,DOOR		10001-
32	421-54-15740	STRIKER,L.H.		10001-
	421-54-15750	STRIKER,R.H.		10001-
33	419-54-15690	PLATE		10001-
34	01224-40820	SCREW		10001-
35	421-54-15760	WASHER		10001-
36	425-54-15680	PLATE		10001-
37	425-54-15690	PLATE		10001-
38	01435-00816	BOLT		10501-
39	421-56-11361	SEAL,RUBBER		10501-
40	09415-01008	CAP		10501-
41	01435-00812	BOLT		10501-
42	427-56-11930	CAP		10501-
