| Item | Part No. | Part Name | Qty | Serial No. |
| (22M-54-00311) | CAB ASS'Y | 20002-20500 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01B0 TO K0210-08B0. | ||||

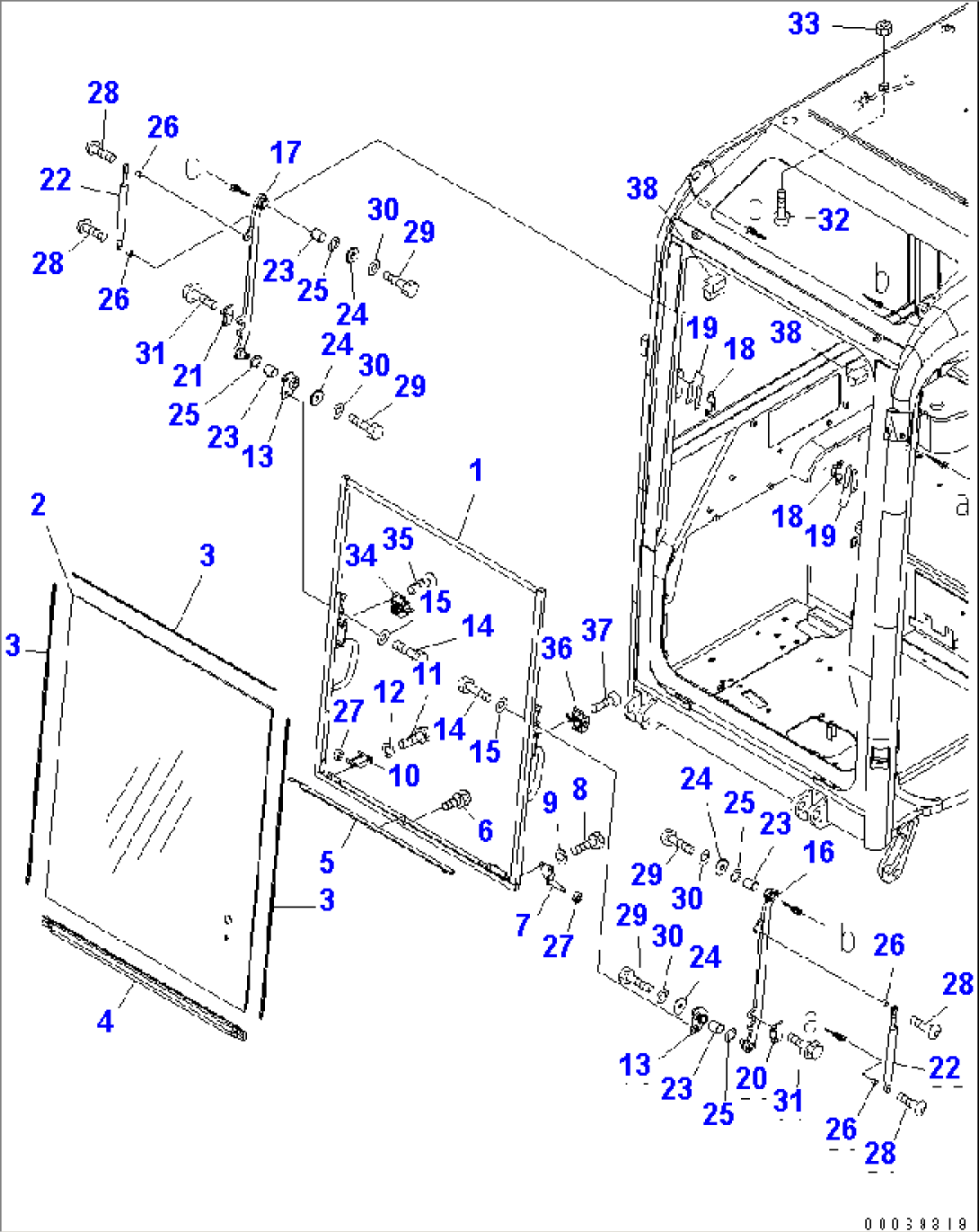

| 22M-54-24501 | FRONT WINDOW ASS'Y | 20002-@ | ||
| 1 | 22M-54-24512 | FRAME | 20002-@ | |
| 2 | 22M-54-24292 | GLASS | 20002-@ | |
| 3 | 22M-54-25490 | SEAL | 20002-@ | |
| 4 | 22M-54-24670 | SEAL | 20002-@ | |
| 5 | 22M-54-24521 | PLATE | 20002-@ | |
| 6 | 01023-70610 | SCREW | 20002-@ | |
| 7 | 22M-54-24551 | BRACKET | 20002-@ | |
| 8 | 01010-D0816 | BOLT | 20002-@ | |
| 9 | 01643-70823 | WASHER | 20002-@ | |
| 10 | 22M-54-24560 | BRACKET | 20002-@ | |
| 11 | 01010-D0816 | BOLT | 20002-@ | |
| 12 | 01643-70823 | WASHER | 20002-@ | |
| 13 | 22M-54-24570 | BRACKET | 20002-@ | |
| 14 | 01010-D0820 | BOLT | 20002-@ | |
| 15 | 01643-70823 | WASHER | 20002-@ | |
| 16 | 22M-54-24531 | PLATE,L.H. | 20002-@ | |
| 17 | 22M-54-24541 | PLATE,R.H. | 20002-@ | |
| 18 | 22M-54-24582 | STRIKER | 20002-@ | |
| 19 | 22B-54-15580 | PLATE | 20002-@ | |
| 20 | 22M-54-24592 | STRIKER | 20002-@ | |
| 21 | 22M-54-24970 | STRIKER | 20002-@ | |
| 22 | 22M-54-24610 | GAS SPRING | 20002-@ | |
| 23 | 22M-54-24620 | BUSHING | 20002-@ | |
| 24 | 22M-54-24630 | WASHER | 20002-@ | |
| 25 | 22M-54-24640 | WASHER | 20002-@ | |
| 26 | 22M-54-24660 | BUSHING | 20002-@ | |
| 27 | 22B-54-15540 | ROLLER | 20002-@ | |
| 28 | 01245-00612 | SCREW | 20002-@ | |
| 29 | 01010-D0820 | BOLT | 20002-@ | |
| 30 | 01643-70823 | WASHER | 20002-@ | |
| 31 | 01435-40616 | BOLT | 20002-@ | |
| 32 | 20Y-54-11611 | STOPPER | 20002-@ | |
| 33 | 20T-54-74550 | NUT | 20002-@ | |
| 34 | 22M-54-25712 | LOCK ASS'Y,R.H. | 20002-@ | |
| 35 | 01240-00616 | SCREW | 20002-@ | |
| 36 | 22M-54-25722 | LOCK ASS'Y,L.H. | 20002-@ | |
| 37 | 01240-00616 | SCREW | 20002-@ | |
| 38 | 22M-54-26150 | SEAL | 20002-@ |
