| Item | Part No. | Part Name | Qty | Serial No. |

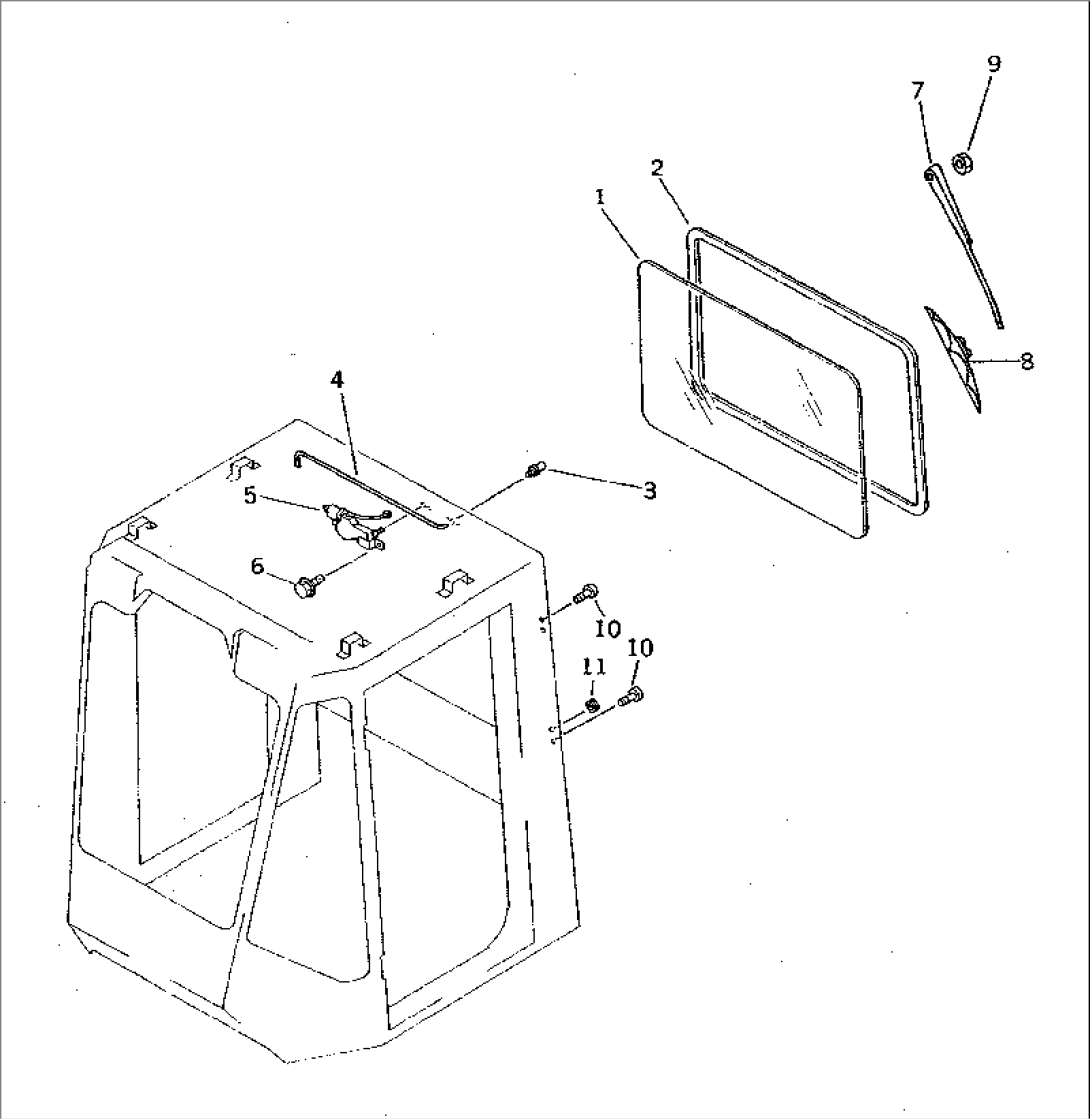

| (428-56-11000) | OPERATOR'S CAB ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5511 TO 5516. | ||||
| 1 | 421-56-11150 | GLASS | 10001- | |
| 2 | 421-56-11160 | STRIP,WEATHER | 10001- | |
| 3 | 419-923-1260 | NOZZLE | 10001- | |
| 4 | 421-54-15440 | HOSE, 4300MM | 10001- | |
| 5 | 423-56-11210 | MOTOR,WIPER | 10001- | |
| 5 | 419-54-15960 | WIRE ASS'Y | 10001- | |
| 6 | 01435-00812 | BOLT | 10001- | |
| 7 | 423-56-11220 | ARM,WIPER | 10001- | |
| 8 | 423-56-11230 | BLADE,WIPER | 10001- | |
| 9 | 01580-10806 | NUT | 10001- | |
| 10 | 01220-40416 | SCREW | 10001- | |
| 11 | 09415-00706 | CAP | 10001- |
