| Item | Part No. | Part Name | Qty | Serial No. |
| (02Y-54-K9290) | OPERATOR'S CAB ASS'Y | K30359- | ||
| (20Y-54-00480) | OPERATOR'S CAB ASS'Y | K30005-K30358 | ||
| (20E-54-K5000) | OPERATOR'S CAB ASS'Y | K30001-K30004 | ||

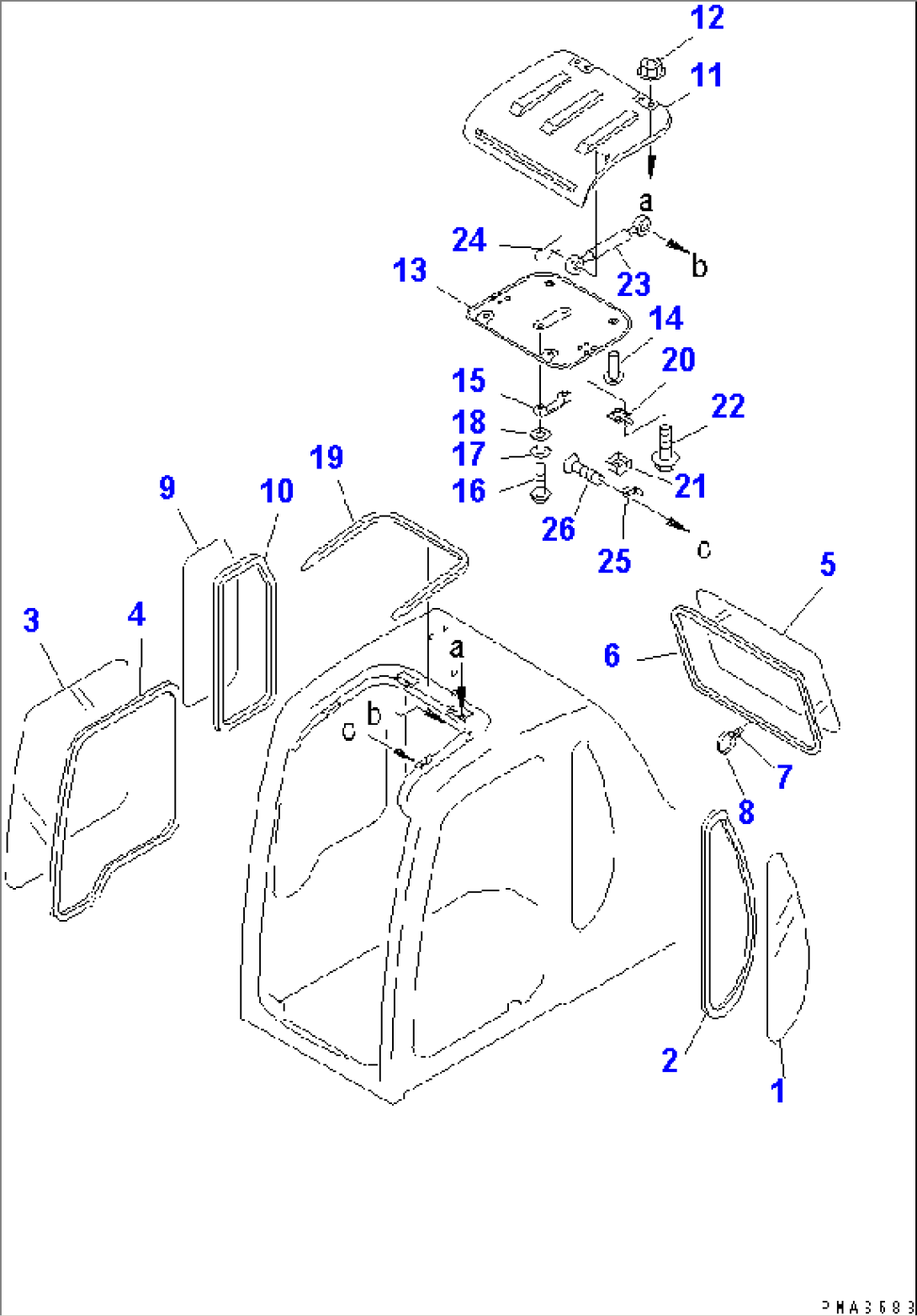

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-07A0. | ||||
| 1 | 20Y-54-35121 | GLASS | K30001- | |
| 2 | 20Y-54-35351 | WEATHER STRIP | K30001- | |
| 3 | 20Y-54-35132 | GLASS | K30001- | |
| 4 | 20Y-54-35362 | WEATHER STRIP | K30001- | |
| 5 | 20Y-54-35142 | GLASS | K30001- | |
| 6 | 20Y-54-35372 | WEATHER STRIP | K30001- | |
| 7 | 20Y-54-43260 | BRACKET | K30001- | |
| 8 | 20Y-54-43270 | RING | K30001- | |
| 9 | 201-54-73710 | GLASS | K30001- | |
| 10 | 201-54-73720 | WEATHER STRIP | K30001- | |
| 11 | 20Y-54-35670 | ROOF | K30001- | |
| 12 | 01580-00806 | NUT | K30001- | |
| 13 | 20Y-54-36321 | COVER | K30001- | |
| 14 | 20Y-54-18690 | RIVET | K30001- | |
| 15 | 20Y-54-14590 | HANDLE | K30001- | |
| 16 | 01023-10616 | SCREW | K30359- | |
| 01220-40616 | SCREW | K30005-K30358 | ||
| 01220-40614 | SCREW | K30001-K30004 | ||
| 17 | 01602-20619 | WASHER,SPRING | K30001-K30004 | |
| 18 | 01641-20608 | WASHER | K30001-K30004 | |
| 19 | 20Y-54-36331 | SEAL | K30001- | |
| 20 | 20Y-54-36351 | LOCK ASS'Y | K30001- | |
| 21 | 20Y-54-36360 | COVER | K30001- | |
| 22 | 01435-30610 | BOLT | K30001- | |
| 23 | 20Y-54-36342 | GAS SPRING ASS'Y | K30001- | |
| 24 | 04052-10833 | PIN,SNAP | K30001- | |
| 25 | 20Y-54-36370 | STRIKER | K30001- | |
| 26 | 01240-00816 | SCREW | K30001- |
