| Item | Part No. | Part Name | Qty | Serial No. |

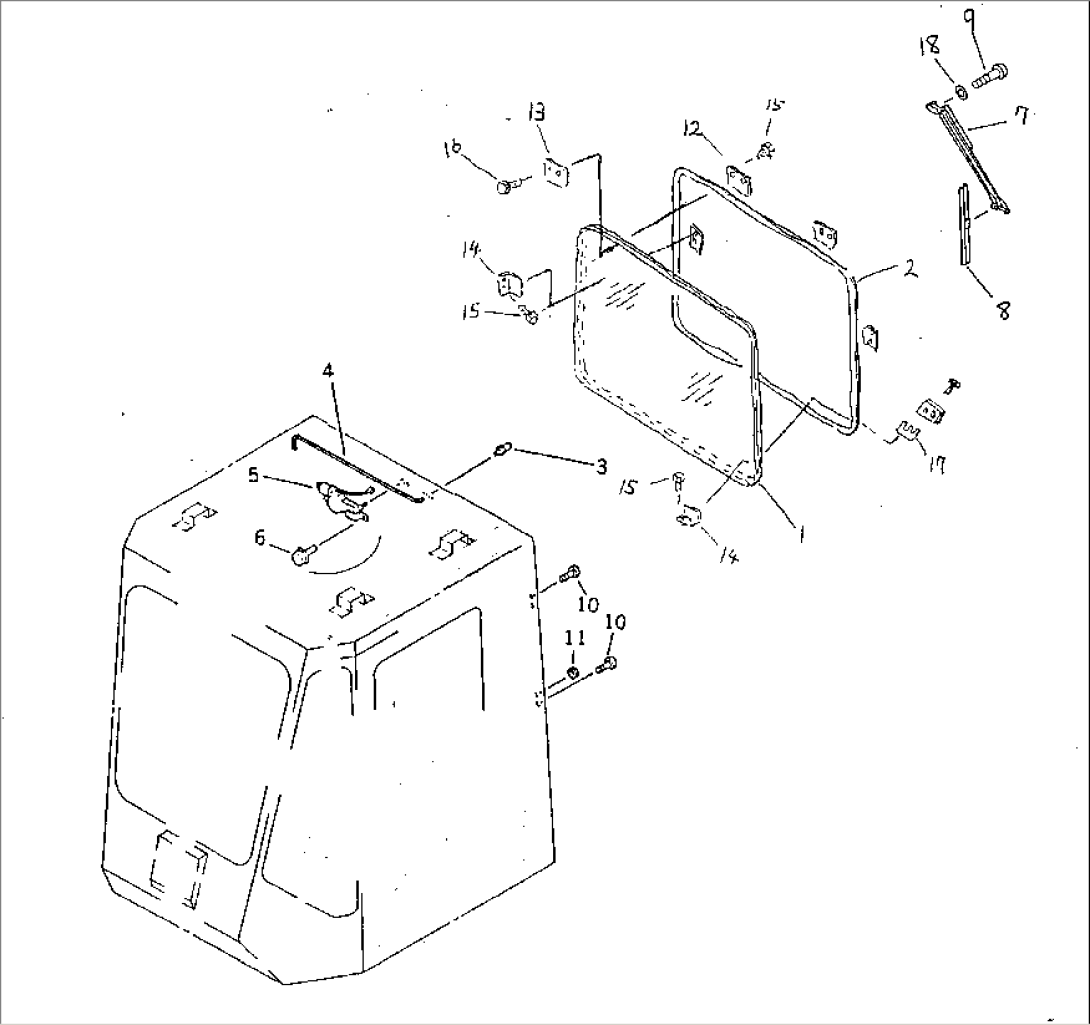

| (428-N62-1000) | OPERATOR'S CAB ASS'Y | 10001- | ||
| 1 | 428-N62-1230 | GLASS | 10001- | |
| 2 | 09413-00330 | STRIP,WEATHER | 10001- | |
| 3 | 419-923-1260 | NOZZLE | 10001- | |
| 4 | 07270-50443 | HOSE | 10001- | |
| 5 | 427-56-11640 | MOTOR,WIPER | 10001- | |
| 6 | 01435-00812 | BOLT | 10001- | |
| 7 | 425-54-15320 | ARM,WIPER | 10001- | |
| 8 | 20S-06-13430 | BLADE,WIPER | 10001- | |
| 9 | 01220-40516 | SCREW | 10001- | |
| 10 | 01220-40416 | SCREW | 10001- | |
| 11 | 09415-00706 | CAP | 10001- | |
| 12 | 41E-56-11540 | PLATE | 10001- | |
| 13 | 41E-56-11590 | PLATE | 10001- | |
| 14 | 41E-56-11730 | PLATE | 10001- | |
| 15 | 01435-00816 | BOLT | 10001- | |
| 16 | 01435-00814 | BOLT | 10001- | |
| 17 | 41E-56-11790 | SHIM | 10001- | |
| 18 | 01641-20508 | WASHER | 10001- |
