Item | Part No. | Part Name | Qty | Serial No. |
(417-56-21020) | CAB ASS'Y | 50001- | ||

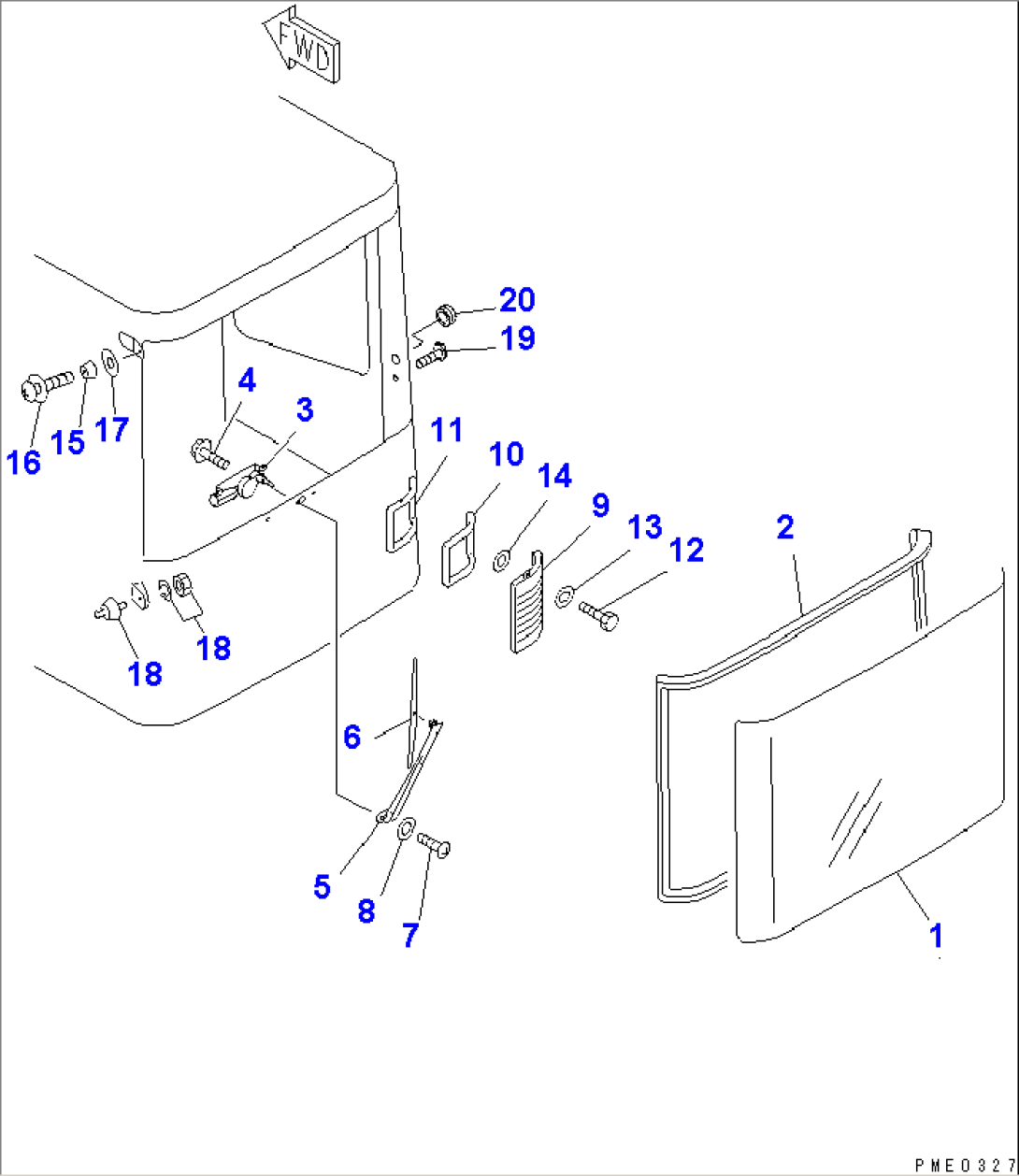

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5501 TO 5508. | ||||
1 | 421-56-21160 | GLASS,REAR | 50001- | |
2 | 421-56-21170 | STRIP,WEATHER | 50001- | |
3 | 421-56-21530 | WIPER MOTOR ASS'Y | 50001- | |
4 | 01435-00812 | BOLT | 50001- | |
5 | 421-56-21760 | ARM,WIPER | 50001- | |
6 | 421-56-21770 | BLADE,WIPER | 50001- | |
7 | 01220-40516 | SCREW | 50001- | |
8 | 01641-20508 | WASHER | 50001- | |
9 | 421-56-21480 | COVER,INSPECTION | 50001- | |
10 | 421-56-21360 | SEAL | 50001- | |
11 | 421-56-21740 | SEAL | 50001- | |
12 | 421-09-21270 | SCREW | 50001- | |
13 | 01642-20608 | WASHER | 50001- | |
14 | 423-56-21920 | WASHER | 50001- | |
15 | 362-56-41470 | STOPPER | 50001- | |
16 | 01023-70430 | SCREW | 50001- | |
17 | 362-56-41990 | WASHER | 50001- | |
18 | 42A-925-1530 | CATCH | 50001- | |
19 | 01220-70412 | SCREW | 50001- | |
20 | 09415-00706 | CAP | 50001- |
