| Item | Part No. | Part Name | Qty | Serial No. |

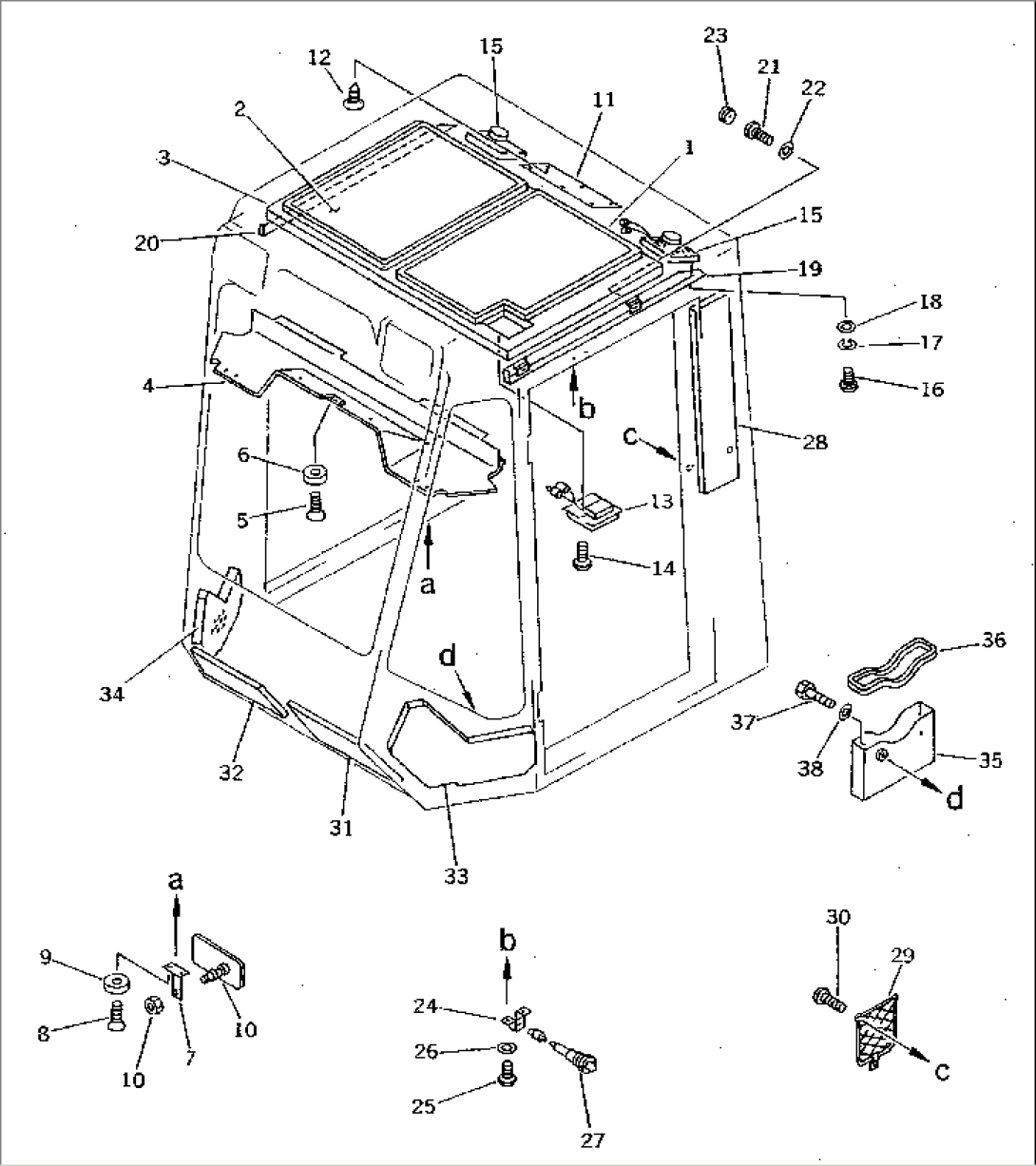

| (427-56-11010) | OPERATOR'S CAB ASS'Y | 10001-10499 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5431 TO 5436. | ||||
| 1 | 427-56-11140 | INSULATOR,L.H. | 10001-10499 | |
| 2 | 425-54-15271 | INSULATOR,R.H. | 10001-10499 | |
| 3 | 427-56-11151 | PAD | 10001-10499 | |
| 4 | 423-54-15612 | COVER | 10001-10499 | |
| 5 | 01225-40512 | SCREW | 10001-10499 | |
| 6 | 421-54-15790 | WASHER | 10001-10499 | |
| 7 | 427-56-11230 | STAY | 10001-10499 | |
| 8 | 01225-40516 | SCREW | 10001-@ | |
| 9 | 421-54-15790 | WASHER | 10001-@ | |
| 10 | 427-56-11220 | MIRROR,ROOM | 10001-@ | |
| 11 | 427-56-11160 | PLATE | 10001-@ | |
| 12 | 419-926-1280 | BUTTON | 10001-@ | |
| 13 | 427-56-11240 | LAMP,ROOM | 10001-@ | |
| 14 | 01220-40520 | SCREW | 10001-@ | |
| 15 | 175-911-6130 | SPEAKER | 10001-@ | |
| 16 | 01220-40412 | SCREW | 10001-10499 | |
| 17 | 01601-20410 | WASHER,SPRING | 10001-@ | |
| 18 | 01641-20405 | WASHER | 10001-10499 | |
| 19 | 427-56-11190 | PLATE,L.H. | 10001-10499 | |
| 20 | 427-56-11210 | PLATE,R.H. | 10001-10499 | |
| 21 | 01220-40512 | SCREW | 10001-10499 | |
| 22 | 01642-20508 | WASHER | 10001-@ | |
| 23 | 09415-01008 | CAP | 10001-10499 | |
| 24 | 427-56-11270 | PLATE | 10001-@ | |
| 25 | 01220-40610 | SCREW | 10001-10499 | |
| 26 | 01642-20608 | WASHER | 10001-@ | |
| 27 | 427-56-11260 | SWITCH | 10001-@ | |
| 28 | 425-54-15481 | PAD | 10001-10499 | |
| 29 | 419-54-15522 | 10001-@ | ||
| 30 | 01220-40412 | SCREW | 10001-10499 | |
| 31 | 425-54-15182 | PAD,L.H. | 10001-10499 | |
| 32 | 425-54-15192 | PAD,R.H. | 10001-10499 | |
| 33 | 425-54-15211 | PAD,L.H. | 10001-10499 | |
| 34 | 425-54-15221 | PAD,R.H. | 10001-10499 | |
| 35 | 427-56-11330 | BOX | 10001-10499 | |
| 36 | 423-54-15780 | FINISHER | 10001-10499 | |
| 37 | 01010-50820 | BOLT | 10001-10499 | |
| 38 | 01643-30823 | WASHER | 10001-10499 |
