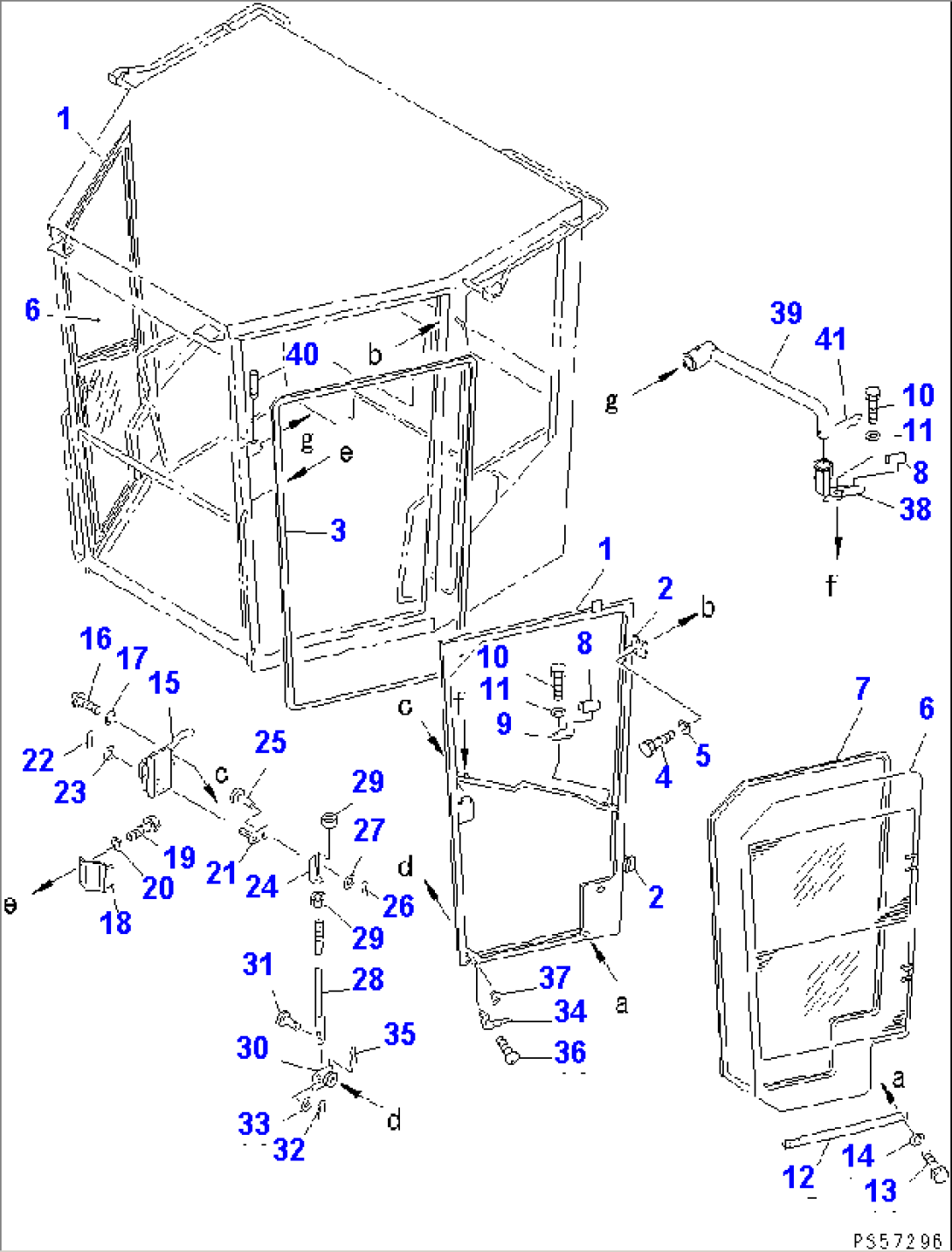

OPERATOR'S CAB (4/7) (DOOR)(#12001-)

Item	Part No.	Part Name	Qty	Serial No.
	(23F-950-1002)	CAB ASS'Y		12001-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5401A TO 5413.
1	23F-950-1121	DOOR,L.H.		12001-
	23F-950-1131	DOOR,R.H.		12001-
2	23F-950-1140	HINGE (WELDED)		11001-
3	23F-950-1510	SEAL		11001-
4	01010-50820	BOLT		11001-
5	01602-20825	WASHER,SPRING		11001-
6	23F-950-1271	GLASS,L.H.		12001-
	23F-950-1281	GLASS,R.H.		12001-
7	23F-950-1290	STRIP,WEATHER		11001-
8	23F-950-1530	SEAL		11001-
9	23F-950-1610	PLATE		11029-
10	01010-50816	BOLT		11001-
11	01641-20812	WASHER		11001-
12	23F-950-1580	PLATE,L.H.		11001-
	23F-950-1590	PLATE,R.H.		11001-
13	01010-50816	BOLT		11001-
14	01641-20812	WASHER		11001-
15	23F-950-1470	LOCK,DOORÂ¤ L.H.		11001-
	23F-950-1480	LOCK,DOORÂ¤ R.H.		11001-
16	01220-40612	SCREW		11001-
17	01602-20619	WASHER,SPRING		11001-
18	234-957-4250	HOOK		11001-
19	01010-51020	BOLT		11001-
20	01602-21030	WASHER,SPRING		11001-
21	23F-950-1310	PLATE		11001-
22	04050-11615	PIN,COTTER		11001-
23	01641-20608	WASHER		11001-
24	23F-950-1320	PLATE		11001-
25	04205-10614	PIN		11001-
26	04050-11610	PIN,COTTER		11001-
27	01641-20608	WASHER		11001-
28	23F-950-1330	ROD,L.H.		11001-
	23F-950-1340	ROD,R.H.		11001-
29	01580-10806	NUT		11001-
30	23D-950-1430	BRACKET,L.H.		11001-
	23D-950-1440	BRACKET,R.H.		11001-
31	04205-10614	PIN		11001-
32	04050-11610	PIN,COTTER		11001-
33	01641-20608	WASHER		11001-
34	23F-950-1350	HANDLE		11001-
35	04050-13025	PIN,COTTER		11001-
36	01225-40412	SCREW		11001-
37	23D-950-1450	LOCK ASS'Y		11001-
38	23F-950-1851	BRACKET,L.H.		11029-
	23F-950-1861	BRACKET,R.H.		11029-
39	23F-950-1811	STAY,L.H.		11029-
	23F-950-1821	STAY,R.H.		11029-
40	23F-950-1881	PIN		11029-
41	23F-950-2320	PIN,SNAP		11029-
