| Item | Part No. | Part Name | Qty | Serial No. |
| (427-56-11010) | OPERATOR'S CAB ASS'Y | 10001-10499 | ||

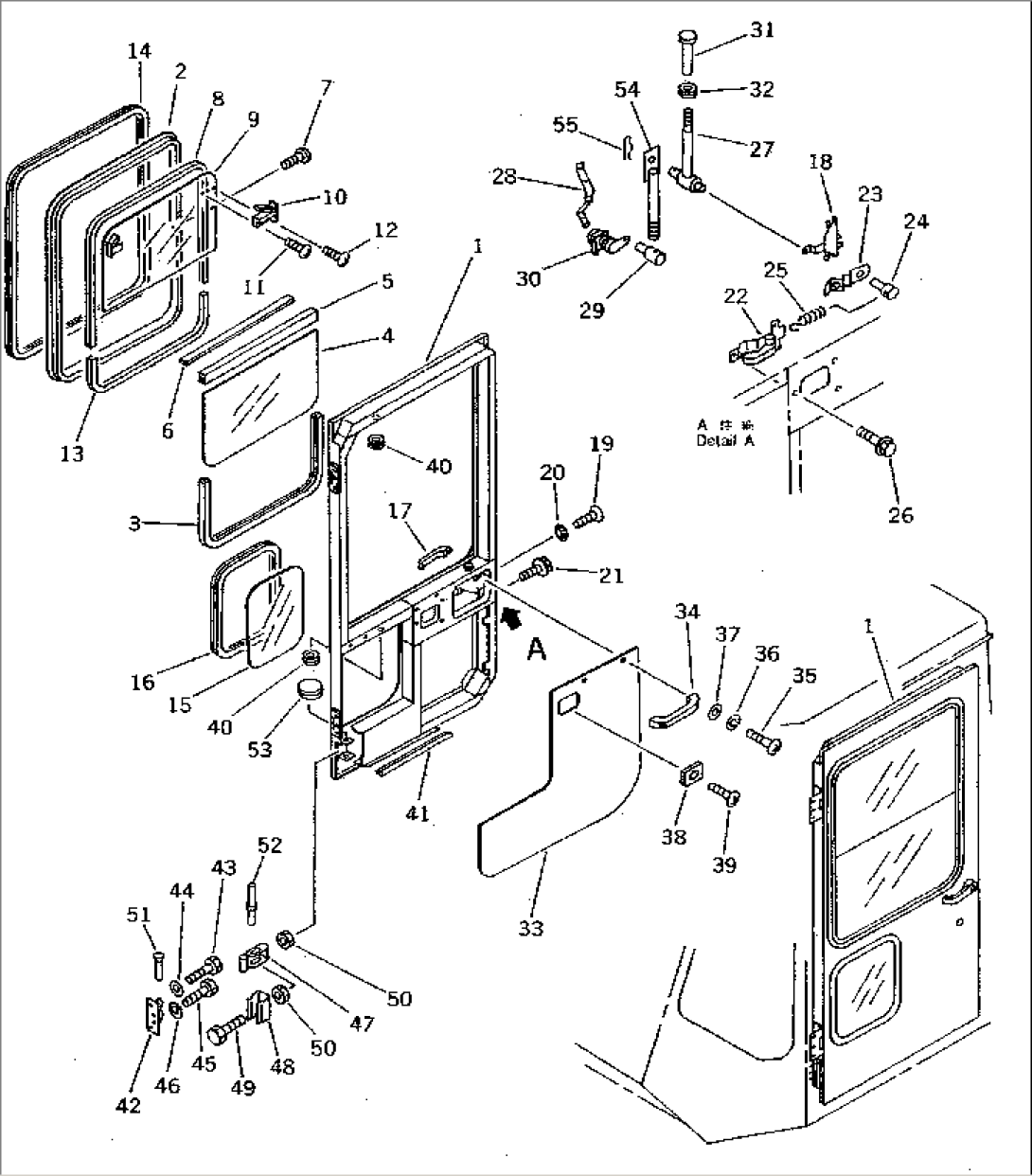

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5431 TO 5436. | ||||
| 1 | 427-56-11611 | DOOR ASS'Y,L.H. | 10001-10499 | |
| 427-56-11621 | DOOR ASS'Y,R.H. | 10001-10499 | ||
| 2 | 425-54-16222 | SASH ASS'Y | 10001-10499 | |
| 3 | 425-54-16540 | STRIP,WEATHER | 10001-10499 | |
| 4 | 425-54-16240 | GLASS | 10001-10499 | |
| 5 | 425-54-16560 | FRAME,CENTER | 10001-10499 | |
| 6 | 425-54-16550 | STRIP,WEATHER | 10001-10499 | |
| 7 | 425-54-16570 | SCREW | 10001-@ | |
| 8 | 425-54-16530 | STRIP,WEATHER | 10001-10499 | |
| 9 | 425-54-16230 | GLASS | 10001-10499 | |
| 10 | 425-54-16250 | LOCK ASS'Y,L.H. | 10001-@ | |
| 425-54-16260 | LOCK ASS'Y,R.H. | 10001-@ | ||
| 11 | 425-54-16270 | SCREW | 10001-@ | |
| 12 | 425-54-16280 | SCREW | 10001-@ | |
| 13 | 425-54-16520 | RUBBER | 10001-10499 | |
| 14 | 425-54-16390 | STRIP | 10001-10499 | |
| 15 | 425-54-16321 | GLASS | 10001-10499 | |
| 16 | 425-54-16470 | STRIP,WEATHER | 10001-10499 | |
| 17 | 427-56-11810 | HANDLE,OUTER | 10001-@ | |
| 18 | 427-56-11820 | LOCK,L.H. | 10001-10499 | |
| 419-54-17410 | LOCK,R.H. | 10001-10499 | ||
| 19 | 01224-40616 | SCREW | 10001-@ | |
| 20 | 421-54-16440 | WASHER | 10001-@ | |
| 21 | 421-54-16850 | BOLT | 10001-10499 | |
| 22 | 425-54-16420 | HANDLE,L.H. | 10001-10499 | |
| 425-54-17420 | HANDLE,R.H. | 10001-10499 | ||
| 23 | 425-54-16440 | ROD | 10001-10499 | |
| 24 | 425-54-16460 | PIN | 10001-10499 | |
| 25 | 425-54-16450 | SPRING | 10001-10499 | |
| 26 | 421-54-16850 | BOLT | 10001-10499 | |
| 27 | 427-56-11770 | ROD | 10001-10499 | |
| 28 | 421-54-16350 | SPRING | 10001-10499 | |
| 29 | 421-54-16370 | PIN | 10001-10499 | |
| 30 | 427-56-11790 | LOCK ASS'Y | 10001-@ | |
| 31 | 419-54-16880 | KNOB | 10001-@ | |
| 32 | 08037-01008 | GROMMET | 10001-@ | |
| 33 | 427-56-11740 | PAD,L.H. | 10001-10499 | |
| 427-56-11750 | PAD,R.H. | 10001-10499 | ||
| 419-54-16730 | CLIP | 10001-10499 | ||
| 34 | 427-56-11730 | GRIP | 10001-@ | |
| 427-56-11760 | PLUG | 10001-@ | ||
| 35 | 01220-40620 | SCREW | 10001-10499 | |
| 36 | 01602-20619 | WASHER,SPRING | 10001-10499 | |
| 37 | 01641-20608 | WASHER | 10001-@ | |
| 38 | 425-54-16430 | COVER,L.H. | 10001-10499 | |
| 425-54-17430 | COVER,R.H. | 10001-10499 | ||
| 39 | 01224-40512 | SCREW | 10001-10499 | |
| 40 | 09415-00506 | CAP | 10001-10499 | |
| 41 | 425-54-16341 | SEAL | 10001-10499 | |
| 42 | 419-54-17380 | BRACKET | 10001-10499 | |
| 43 | 01010-50820 | BOLT | 10001-10499 | |
| 44 | 01643-30823 | WASHER | 10001-10499 | |
| 45 | 01010-50620 | BOLT | 10001-10499 | |
| 46 | 01643-30623 | WASHER | 10001-10499 | |
| 47 | 426-54-15240 | LEVER | 10001-10499 | |
| 48 | 419-56-11170 | SPRING | 10001-10499 | |
| 49 | 01016-20415 | BOLT | 10001-10499 | |
| 50 | 01580-10403 | NUT | 10001-10499 | |
| 51 | 419-54-17360 | PIN | 10001-10499 | |
| 52 | 425-54-16630 | PIN | 10001-10499 | |
| 53 | 09415-02512 | CAP | 10001-10499 | |
| 54 | 427-56-11780 | ROD | 10001-10499 | |
| 55 | 04052-00530 | PIN,SNAP | 10001-10499 |
