| Item | Part No. | Part Name | Qty | Serial No. |
| (415-924-1002) | OPERATOR'S CAB ASS'Y | 12001- | ||
| (415-924-1001) | OPERATOR'S CAB ASS'Y | ..-11999 | ||
| (415-924-1000) | OPERATOR'S CAB ASS'Y | 10001-.. | ||

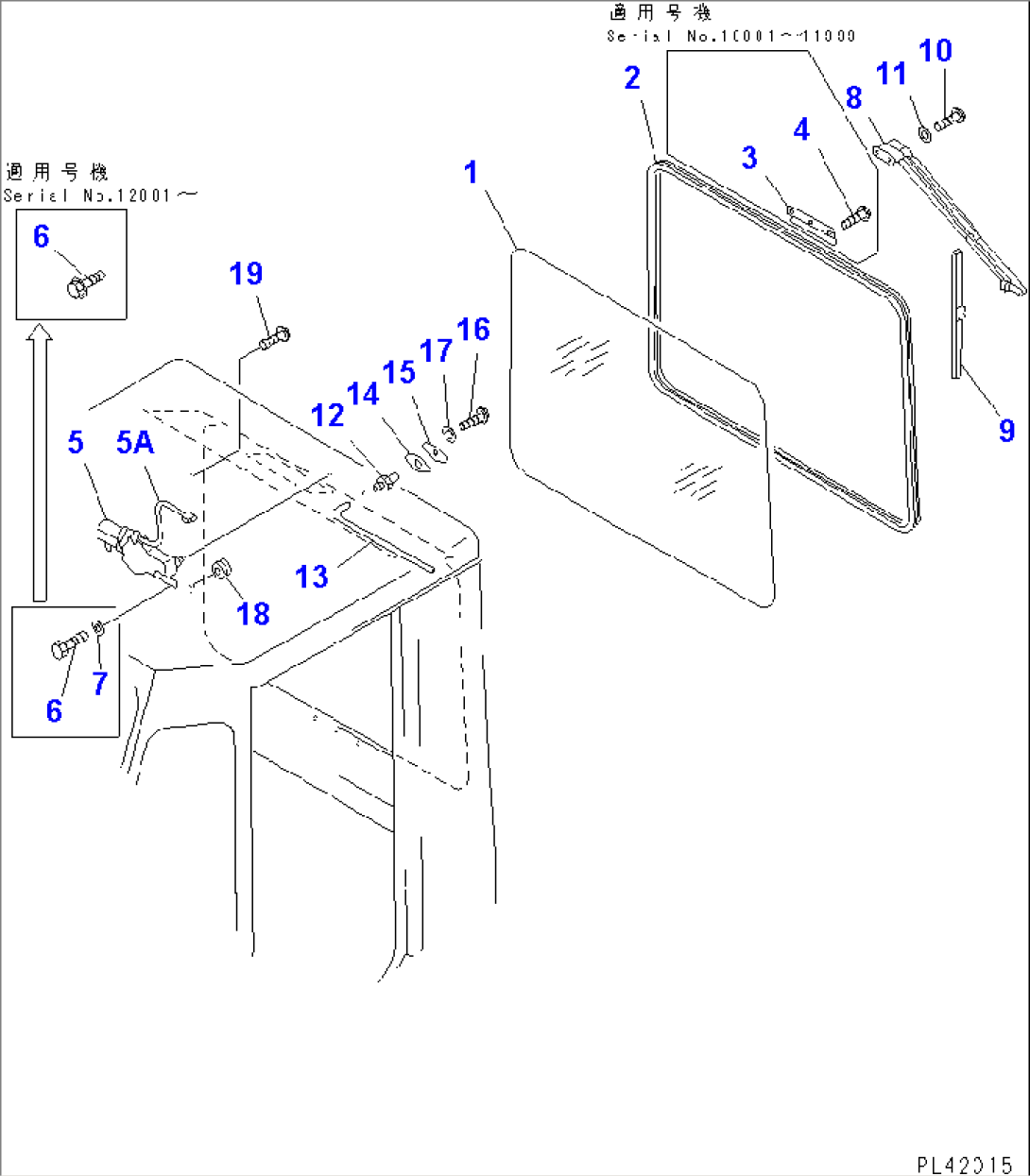

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.8041 TO 8049. | ||||
| 1 | 419-54-15511 | GLASS,REAR | 10001- | |
| 2 | 425-54-15361 | STRIP,WEATHER | 10001- | |
| 3 | 425-54-15780 | PLATE | 10001-11999 | |
| 4 | 01370-00406 | SCREW | 10001-11999 | |
| 5 | 417-54-15142 | MOTOR,WIPER | ..- | |
| 417-54-15141 | MOTOR,WIPER | .-.. | ||
| \0\417-54-15140 | MOTOR,WIPER | 10001-. | ||
| 5A | 419-54-15960 | WIRE ASS'Y | 10001- | |
| 6 | 01435-00812 | BOLT | 12001- | |
| 01010-50816 | BOLT | 10001-11999 | ||
| 7 | 01643-30823 | WASHER | 10001-11999 | |
| 8 | 417-54-15151 | ARM,WIPER | ..- | |
| \0\417-54-15150 | ARM,WIPER | 10001-.. | ||
| 9 | 419-923-1290 | BLADE,WIPER | ..- | |
| \0\419-923-1280 | BLADE,WIPER | 10001-.. | ||
| 10 | 01220-40516 | SCREW | 10001- | |
| 11 | 01641-20508 | WASHER | 10001- | |
| 12 | 421-54-15430 | NOZZLE | 10001- | |
| 13 | 421-54-15440 | HOSE | 10001- | |
| 14 | 425-54-15790 | PLATE | 10001- | |
| 15 | 421-54-15421 | PLATE | 10001- | |
| 16 | 01220-40516 | SCREW | 10001- | |
| 17 | 01601-20513 | WASHER,SPRING | 10001- | |
| 18 | 09415-00706 | CAP | 10001- | |
| 19 | 01220-40406 | SCREW | 10001- |
