| Item | Part No. | Part Name | Qty | Serial No. |

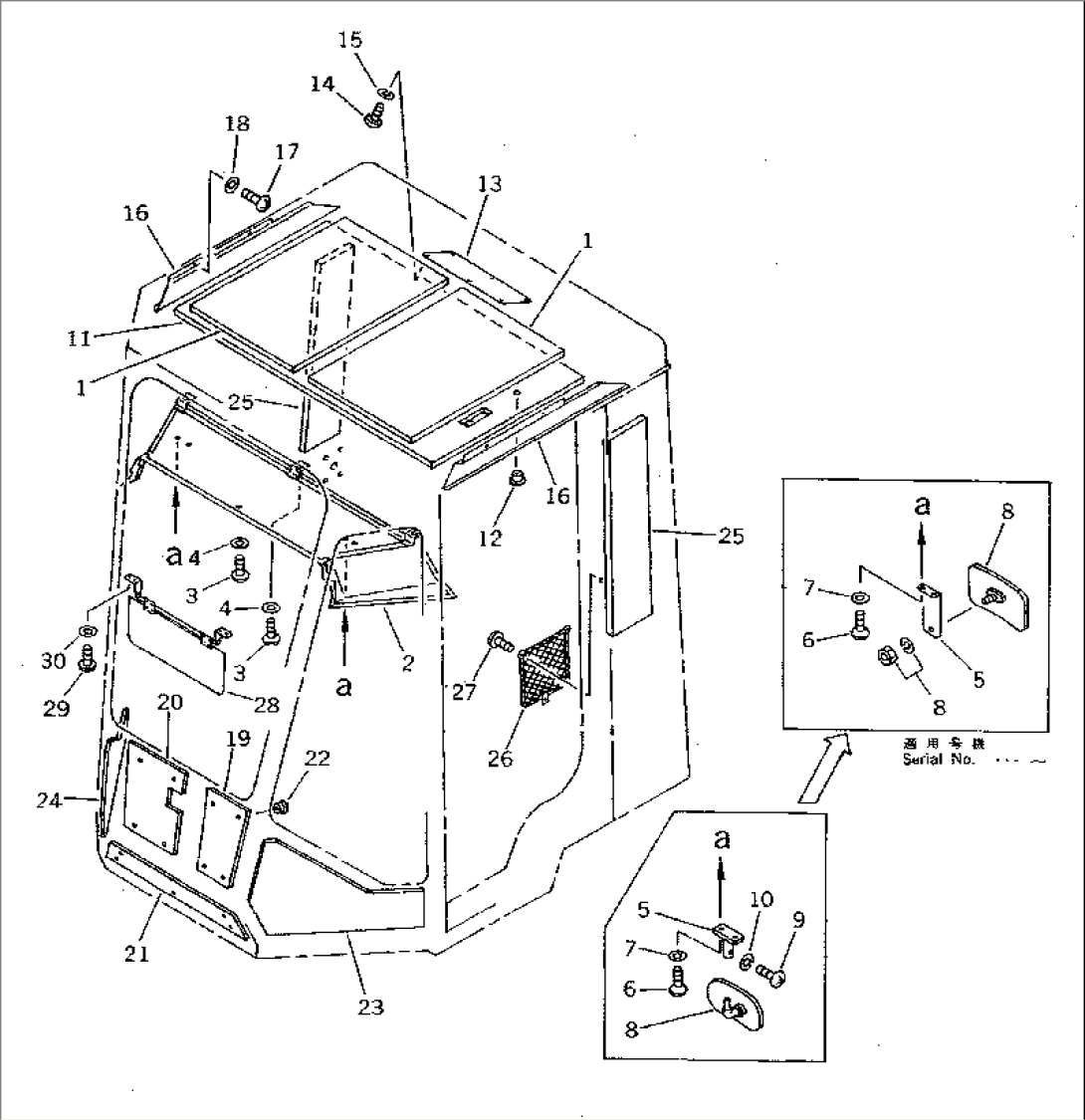

| (415-924-1001) | OPERATOR'S CAB ASS'Y | ..-11999 | ||
| (415-924-1000) | OPERATOR'S CAB ASS'Y | 10001-.. | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.8041 TO 8049. | ||||
| 1 | 419-54-15551 | INSULATOR | 10001-@ | |
| 2 | 419-54-15663 | COVER | 12001-@ | |
| \0\419-54-15661 | COVER | 10001-11999 | ||
| 3 | 01225-40516 | SCREW | 10001-@ | |
| 4 | 421-54-15790 | WASHER | 10001-@ | |
| 5 | 419-56-11270 | STAY | ...-11999 | |
| 417-54-15610 | STAY | ..-... | ||
| \0\421-54-15591 | STAY | 10001-.. | ||
| 6 | 01225-40516 | SCREW | 10001-11999 | |
| 7 | 421-54-15790 | WASHER | 10001-11999 | |
| 8 | 419-56-11260 | MIRROR,ROOM | ...-11999 | |
| 421-54-15580 | MIRROR,ROOM | 10001-... | ||
| 9 | 01220-40616 | SCREW | 10001-11999 | |
| 10 | 01602-20619 | WASHER,SPRING | 10001-11999 | |
| 11 | 419-54-15542 | PAD | 10001-@ | |
| 12 | 09416-10000 | BUTTON | 10001-@ | |
| 13 | 419-923-1310 | PLATE | 10001-@ | |
| 14 | 01220-40512 | SCREW | 10001-@ | |
| 15 | 01601-20513 | WASHER,SPRING | 10001-@ | |
| 16 | 415-54-15210 | COVER,L.H. | 10001-@ | |
| 415-924-1110 | COVER,R.H. | 10001-@ | ||
| 17 | 01220-40512 | SCREW | 10001-@ | |
| 18 | 01642-20508 | WASHER | 10001-@ | |
| 19 | 419-54-15571 | PAD,L.H. | 10001-@ | |
| 20 | 419-54-15581 | PAD,R.H. | 10001-@ | |
| 21 | 419-54-15591 | PAD | 10001-@ | |
| 22 | 09416-10000 | BUTTON | 10001-@ | |
| 23 | 419-54-15621 | PAD,L.H. | 10001-@ | |
| 24 | 419-54-15631 | PAD,R.H. | 10001-@ | |
| 25 | 425-54-15481 | PAD | 10001-@ | |
| 26 | 419-54-15522 | 10001-@ | ||
| 27 | 01220-40412 | SCREW | 10001-@ | |
| 28 | 419-56-11251 | SUN VISOR | .-@ | |
| \0\419-56-11250 | SUN VISOR | 10001-. | ||
| 29 | 01220-40516 | SCREW | 12001-@ | |
| 30 | 01641-20508 | WASHER | 12001-@ |
