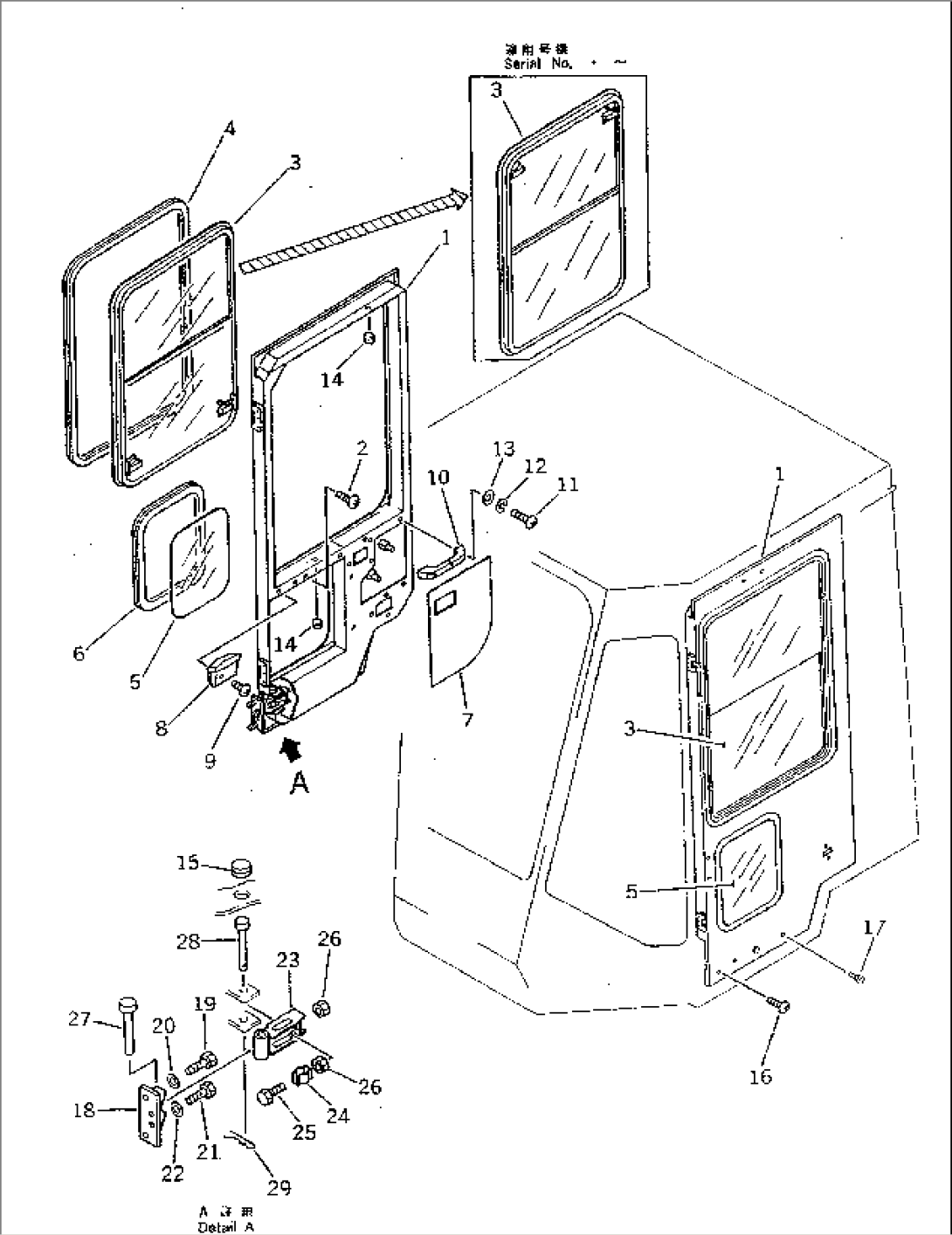

| Item | Part No. | Part Name | Qty | Serial No. |
| (415-54-15020) | OPERATOR'S CAB ASS'Y | 10001-@ | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5441 TO 5449. | ||||
| 415-54-16002 | DOOR ASS'Y,L.H. | .-@ | ||
| \0\415-54-16001 | DOOR ASS'Y,L.H. | 10001-. | ||
| 415-54-17002 | DOOR ASS'Y,R.H. | .-@ | ||
| \0\415-54-17001 | DOOR ASS'Y,R.H. | 10001-. | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5447 AND 5448. | ||||
| 1 | \6\ | DOOR,L.H. | 10001-@ | |
| 1 | \6\ | DOOR,R.H. | 10001-@ | |
| 2 | 01220-40412 | SCREW | 10001-@ | |
| 419-54-16692 | SASH ASS'Y | .-@ | ||
| \0\419-54-16691 | SASH ASS'Y | 10001-. | ||
| 3 | 419-54-15460 | GLASS,UPPER | 10001-. | |
| 3 | 419-54-15470 | GLASS,LOWER | 10001-. | |
| 3 | 425-54-16250 | LOCK ASS'Y,L.H. | 10001-@ | |
| 3 | 425-54-16260 | LOCK ASS'Y,R.H. | 10001-@ | |
| 4 | 425-54-16390 | STRIP,WEATHER | 10001-@ | |
| 5 | 419-54-16631 | GLASS | 10001-@ | |
| 6 | 425-54-16470 | STRIP,WEATHER | 10001-@ | |
| 7 | 415-54-16121 | PAD,L.H. | 10001-@ | |
| 7 | 415-54-17121 | PAD,R.H. | 10001-@ | |
| 7 | 419-54-16730 | CLIP | 10001-@ | |
| 8 | 425-54-17410 | ASHTRAY,(FOR R.H.) | 10001-@ | |
| 9 | 01224-40412 | SCREW | 10001-@ | |
| 10 | 421-54-16480 | HANDLE | 10001-@ | |
| 11 | 01220-40625 | SCREW | 10001-@ | |
| 12 | 01602-20619 | WASHER,SPRING | 10001-@ | |
| 13 | 01641-20608 | WASHER | 10001-@ | |
| 14 | 09415-00506 | CAP | 10001-@ | |
| 15 | 09415-01008 | CAP | 10001-@ | |
| 16 | 01220-40810 | SCREW,(FOR SHIPPING) | 10001-@ | |
| 17 | 415-54-12680 | CUSHION | 10001-@ | |
| 18 | 419-54-17380 | BRACKET | 10001-@ | |
| 19 | 01010-80820 | BOLT | 10001-@ | |
| 20 | 01643-30823 | WASHER | 10001-@ | |
| 21 | 01010-50620 | BOLT | 10001-@ | |
| 22 | 01643-30623 | WASHER | 10001-@ | |
| 23 | 417-54-17121 | LEVER | 10001-@ | |
| 24 | 419-56-11170 | SPRING | 10001-@ | |
| 25 | 01016-20415 | BOLT | 10001-@ | |
| 26 | 01580-60403 | NUT | 10001-@ | |
| 27 | 419-54-17360 | PIN | 10001-@ | |
| 28 | 419-54-17350 | PIN | 10001-@ | |
| 29 | 04052-01038 | PIN,SNAP | 10001-@ |
