| Item | Part No. | Part Name | Qty | Serial No. |
| (23B-953-4080) | CAB ASS'Y (HIGH ROPS CAB) | | B15001- |
| (23B-953-B510) | CAB ASS'Y (HIGH ROPS CAB) | | B15070- |
| (23B-953-4060) | CAB ASS'Y (HIGH ROPS CAB) | | B15001-B15069 |

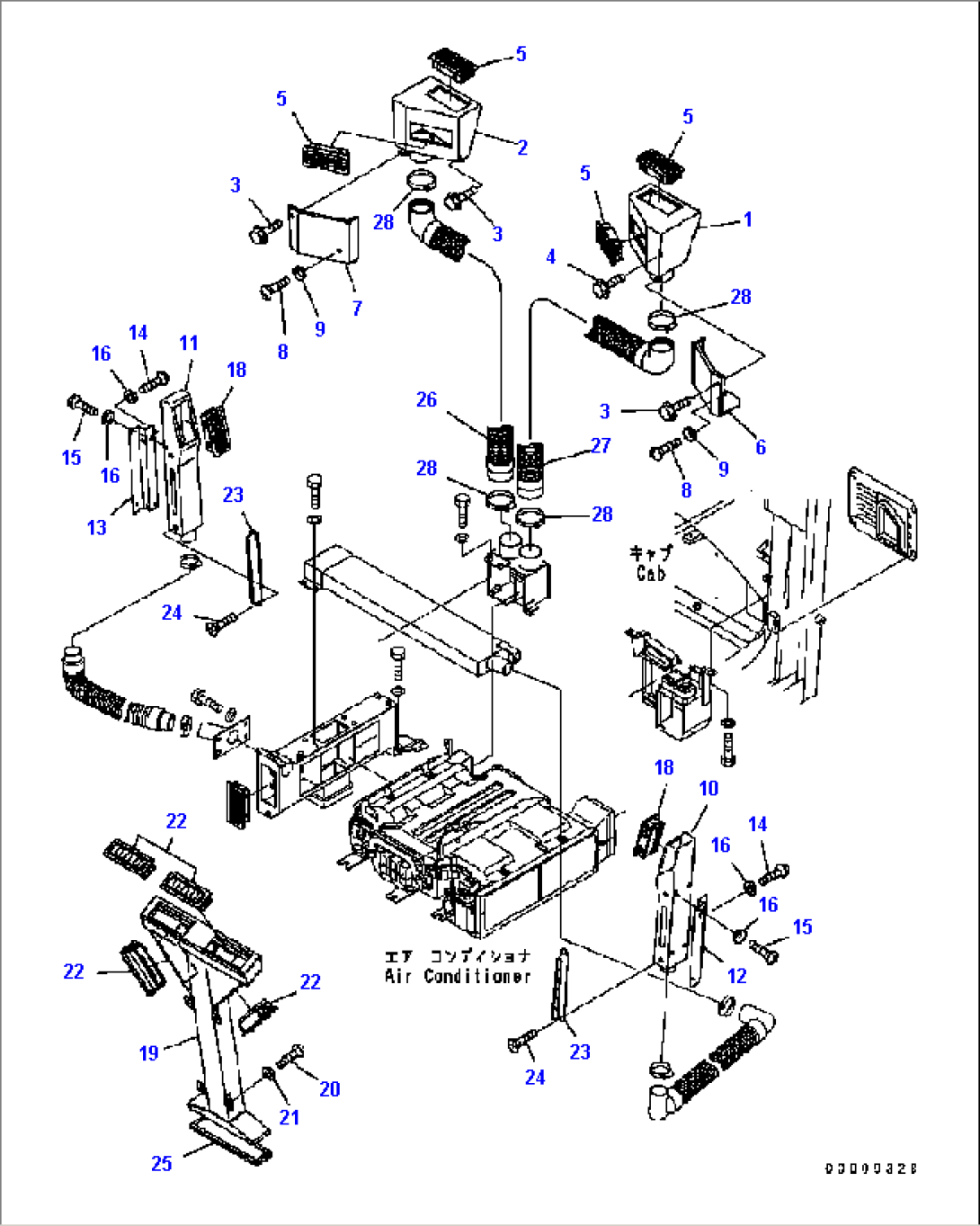

| | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-17A0. | | |
| 1 | 23B-809-8831 | BOX | | B15001- |
| 2 | 23B-809-8841 | BOX | | B15001- |
| 3 | 01435-00612 | BOLT | | B15001- |
| 4 | 01435-00616 | BOLT | | B15001- |
| 5 | 421-07-23870 | GRILLE | | B15001- |
| 6 | 23B-809-8871 | COVER {L.H.} | | B15001- |
| 7 | 23B-809-8881 | COVER {R.H.} | | B15001- |
| 8 | 01225-70612 | SCREW | | B15001- |
| 9 | 23S-55-51970 | WASHER | | B15001- |
| 10 | 23B-809-8891 | DUCT {L.H.} | | B15001- |
| 11 | 23B-809-8980 | DUCT {R.H.} | | B15001- |
| 12 | 23B-809-8921 | PLATE {L.H.} | | B15001- |
| 13 | 23B-809-8990 | PLATE {R.H.} | | B15001- |
| 14 | 01225-70616 | SCREW | | B15001- |
| 15 | 01225-70610 | SCREW | | B15001- |
| 16 | 23S-55-51970 | WASHER | | B15001- |
| 18 | 421-07-23870 | GRILLE | | B15001- |
| 19 | 23B-809-8911 | DUCT | | B15001- |
| 20 | 01225-70616 | SCREW | | B15001- |
| 21 | 23S-55-51970 | WASHER | | B15001- |
| 22 | 421-07-23870 | GRILLE | | B15001- |
| 23 | 09487-30220 | NOZZLE | | B15001- |
| 24 | 01224-70406 | SCREW | | B15001- |
| 25 | 23B-809-8930 | SEAL | | B15001- |
| 26 | 23B-809-8670 | HOSE | | B15001- |
| 27 | 23B-809-8680 | HOSE | | B15001- |
| 28 | 07281-00709 | CLAMP | | B15001- |
