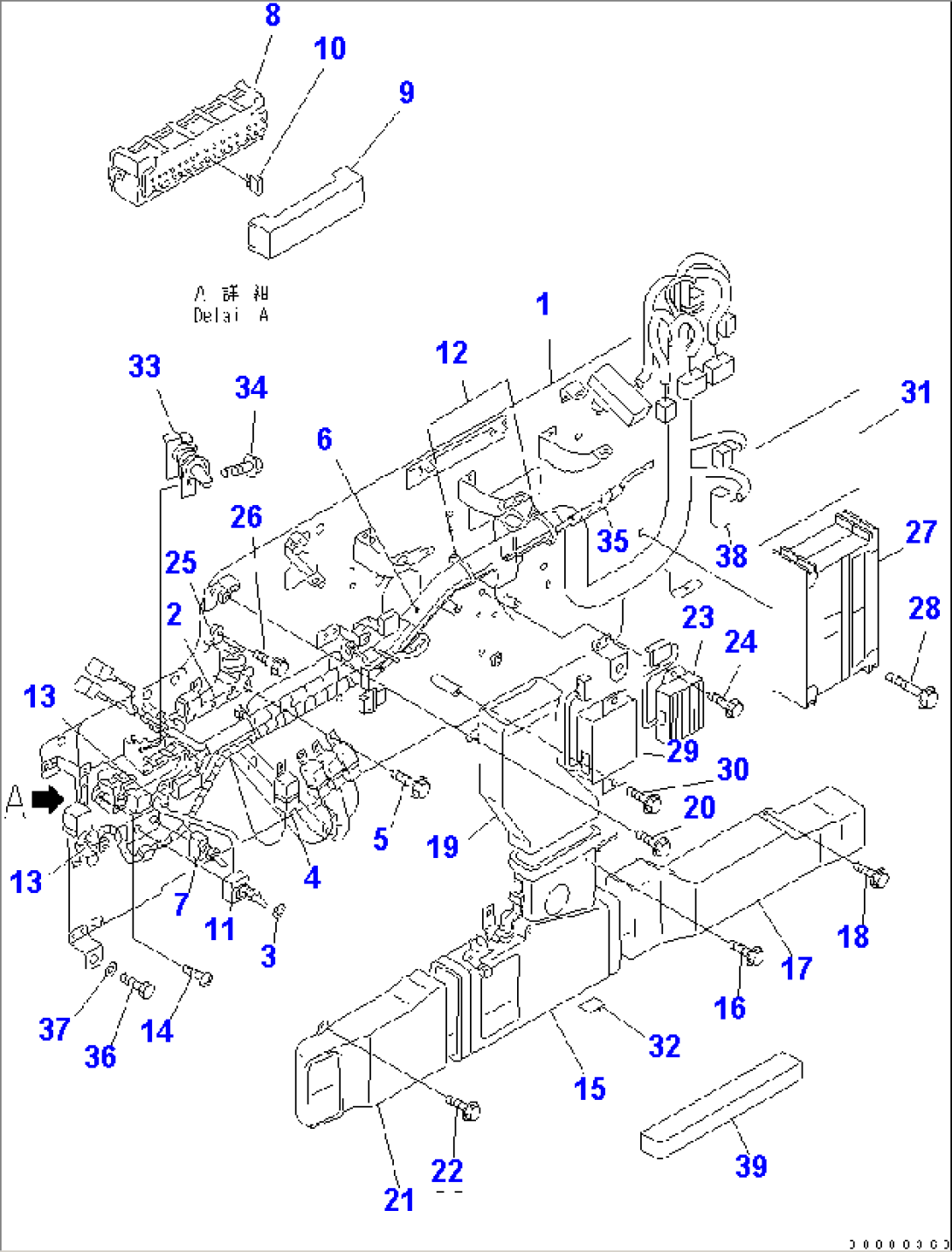

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-06-61510 | BASE | K30545- | |
| 2 | 20E-06-K1330 | BRACKET | K30545- | |
| 3 | 01641-21223 | WASHER | K30545- | |
| 4 | 569-06-61960 | RELAY | K30545- | |
| 5 | 01435-00610 | BOLT | K30545- | |
| 6 | 20G-06-K1515 | WIRING HARNESS | .- | |
| 20G-06-K1514 | WIRING HARNESS | K32091-. | ||
| 20G-06-K1513 | WIRING HARNESS | K30769-K32090 | ||
| 20G-06-K1511 | WIRING HARNESS | K30545-K30768 | ||
| 7 | 20Y-06-24130 | SWITCH | K30545- | |
| 8 | 283-06-16110 | BOX,FUSE | K30545- | |
| 9 | 195-Z11-2290 | COVER | K30545- | |
| 10 | 283-06-16190 | FUSE¤ 10A | K30545- | |
| 205-06-73180 | FUSE¤ 15A | K30545- | ||
| 22W-06-13160 | FUSE¤ 20A | K30545- | ||
| 201-06-61240 | FUSE¤ 30A | K30545- | ||
| 11 | 203-06-56520 | SWITCH | K30769- | |
| 20Y-06-24120 | SWITCH ASS'Y | K30545-K30768 | ||
| 12 | 20Y-06-21460 | CLIP | K30545- | |
| 13 | 20Y-06-23960 | CLIP | K30545- | |
| 14 | 01023-10625 | SCREW | K30545- | |
| 15 | 20Y-979-2130 | BOX ASS'Y | K30545- | |
| 16 | 01435-01016 | BOLT | K30545- | |
| 17 | 20Y-979-2221 | DUCT | K30545- | |
| 18 | 01435-00610 | BOLT | K30545- | |
| 19 | 20Y-979-2231 | DUCT | K30545- | |
| 20 | 01435-00610 | BOLT | K30545- | |
| 21 | 20Y-979-2242 | DUCT | K30545- | |
| 22 | 01435-00610 | BOLT | K30545- | |
| 23 | 20Y-06-17220 | RESISTOR | K30545- | |
| 24 | 01435-00820 | BOLT | K30545- | |
| 25 | 203-06-56230 | BUZZER ASS'Y | K30545- | |
| 26 | 01435-00610 | BOLT | K30545- | |
| 27 | 7834-24-5005 | CONTROLLER | K35001- | |
| 7834-24-5003 | CONTROLLER | .-K35000 | ||
| 7834-24-5002 | CONTROLLER | K32021-. | ||
| 7834-24-5001 | CONTROLLER | K30769-K32020 | ||
| 7834-24-5000 | CONTROLLER | K30545-K30768 | ||
| 28 | 01435-00880 | BOLT | K30545- | |
| 29 | 20Y-06-23640 | CONTROLLER | K30545- | |
| 30 | 01435-20630 | BOLT | K35001- | |
| 01435-00630 | BOLT | K30545-K35000 | ||
| 31 | 20Y-06-24220 | SHEET | K30545- | |
| 32 | 08051-00801 | CLIP | K30545- | |
| 33 | 20Y-06-23521 | LOCK | K30545- | |
| 34 | 01435-00820 | BOLT | K30545- | |
| 35 | 08017-30701 | CONDUIT | K30545- | |
| 36 | 01010-81020 | BOLT | K30545- | |
| 37 | 01643-31032 | WASHER | K30545- | |
| 38 | 20E-06-K2391 | CONNECTOR | K35001- | |
| 39 | 20E-54-K4580 | SHEET | K35001- |
