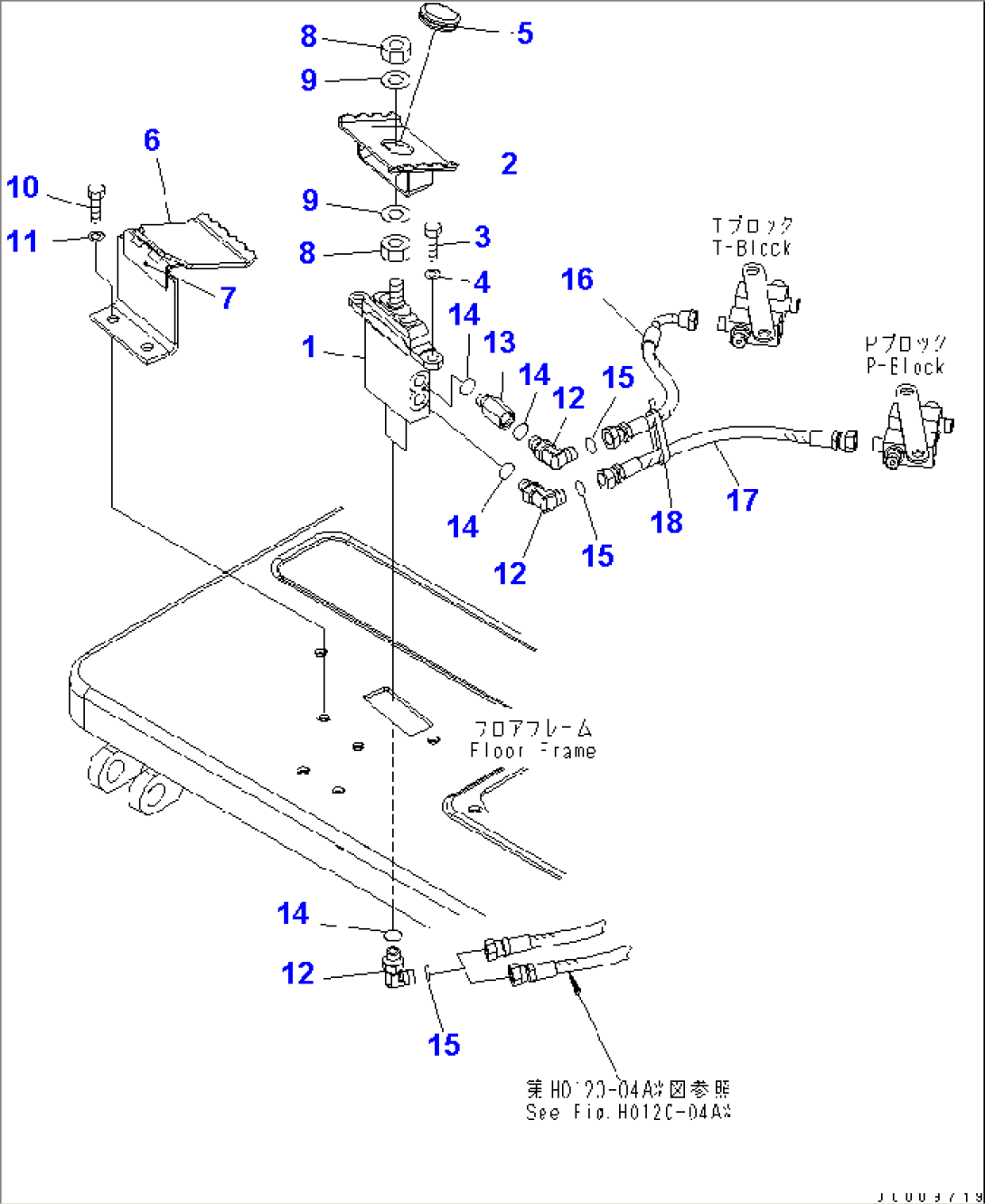

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (702-16-01270) | PILOT VALVE,(SEE FIG.Y1670-31A0) | 15001- | |
| 2 | 22M-43-21341 | PEDAL | 15001- | |
| 3 | 01010-D1025 | BOLT | 15001- | |
| 4 | 01643-71032 | WASHER | 15001- | |
| 5 | 09415-02512 | CAP | 15001- | |
| 6 | 22M-43-21351 | COVER | 15001- | |
| 7 | 22M-43-11510 | HINGE (WELDED) | 15001- | |
| 8 | 01583-11408 | NUT | 15001- | |
| 9 | 01641-21423 | WASHER | 15001- | |
| 10 | 01010-D1025 | BOLT | 15001- | |
| 11 | 01643-71032 | WASHER | 15001- | |
| 12 | 21W-62-43980 | ELBOW | 15001- | |
| 13 | 20T-910-8660 | NIPPLE | 15001- | |
| 14 | 07000-12011 | O-RING | 15001- | |
| 15 | 02896-11008 | O-RING | 15001- | |
| 16 | 22M-62-23121 | HOSE,BLUE¤ WHITE | 15001- | |
| 21U-62-34750 | BAND¤ BLUE | 15001- | ||
| 21U-62-34770 | BAND¤ WHITE | 15001- | ||
| 17 | 22M-62-23141 | HOSE,GREEN¤ RED | 15001- | |
| 21U-62-34730 | BAND¤ GREEN | 15001- | ||
| 21U-62-34760 | BAND¤ RED | 15001- | ||
| 18 | 08034-20519 | BAND | 15001- |
