| Item | Part No. | Part Name | Qty | Serial No. |
| 23B-950-0220 | CAB ASS'Y | 30001- | ||

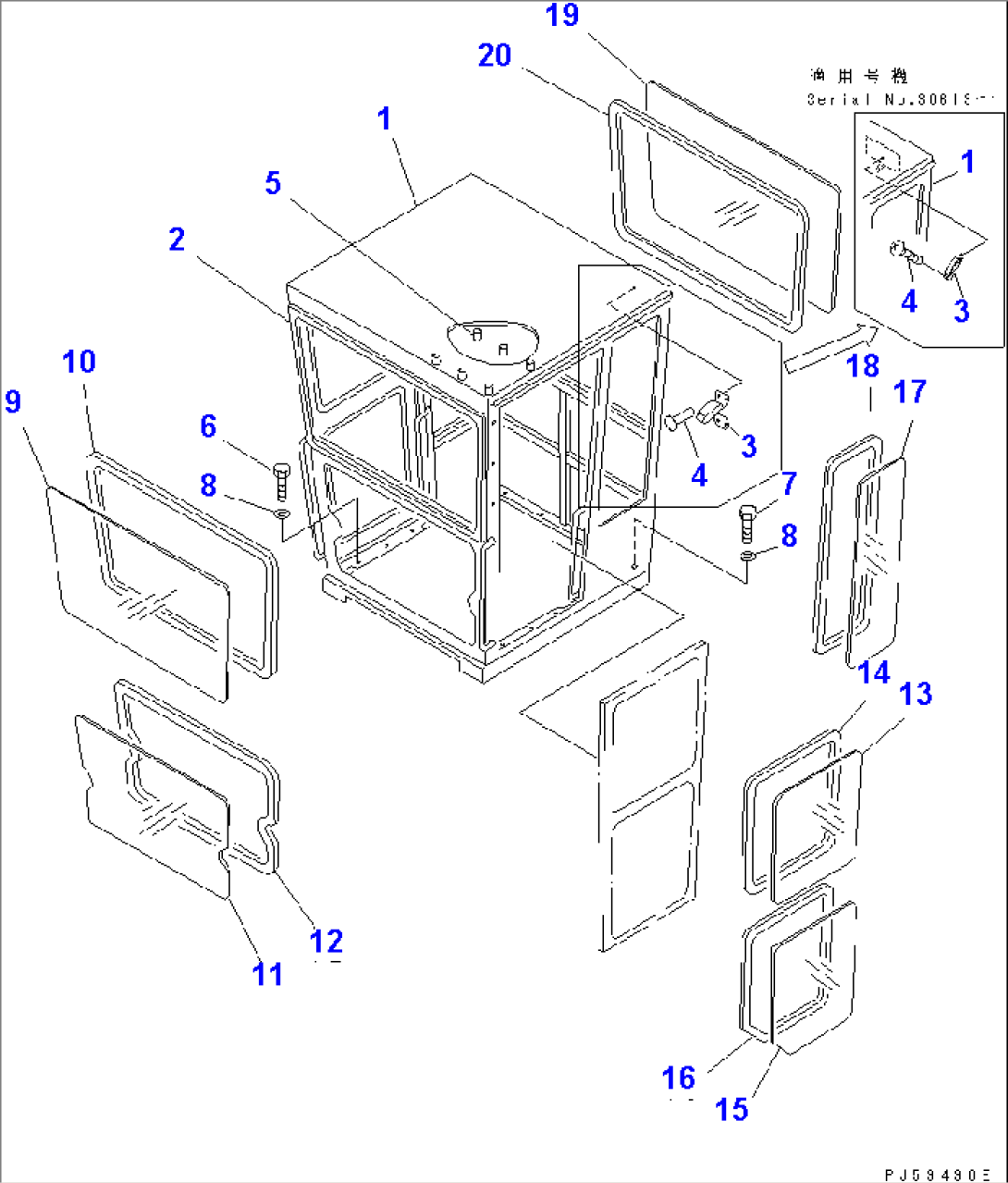

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5421 TO 5429. | ||||
| G1 | (\8\23B-950-X140) | CAB BODY C GROUP | 30001- | |
| ==================== | ||||
| 1 | 23B-950-1200 | CAB | 30001- | |
| 2 | 23B-950-3110 | BRACKET (WELDED) | 30001- | |
| 3 | 22X-54-19260 | LOCK,QUARTER | 30619- | |
| 3 | 23B-950-1520 | LOCK | 30001-30618 | |
| 4 | 01225-40512 | SCREW | 30619- | |
| 4 | 04400-00308 | RIVET | 30001-30618 | |
| 5 | 23B-950-3130 | COLLAR | 30001- | |
| 6 | 01010-51255 | BOLT | 30001- | |
| 7 | 01010-51225 | BOLT | 30001- | |
| 8 | 01643-31232 | WASHER | 30001- | |
| ==================== | ||||
| G2 | (\8\23B-950-X170) | CAB BODY G GROUP | 30001- | |
| ==================== | ||||
| 9 | 23B-950-1660 | GLASS | 30001- | |
| 10 | 09410-40450 | STRIP,WEATHER | 30001- | |
| 11 | 23A-950-1630 | GLASS | 30001- | |
| 12 | 09410-40450 | STRIP,WEATHER | 30001- | |
| 13 | 23B-950-1610 | GLASS | 30001- | |
| 14 | 09410-40350 | STRIP,WEATHER | 30001- | |
| 15 | 23B-950-1590 | GLASS | 30001- | |
| 16 | 09410-40300 | STRIP,WEATHER | 30001- | |
| 17 | 23B-950-1650 | GLASS | 30001- | |
| 18 | 09410-40400 | STRIP,WEATHER | 30001- | |
| 19 | 23B-950-1640 | GLASS | 30001- | |
| 20 | 09410-40450 | STRIP,WEATHER | 30001- | |
| ==================== |
