| Item | Part No. | Part Name | Qty | Serial No. |
| (426-56-21301) | CAB ASS'Y | 50042- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01B0 TO K0210-20B0. | ||||
| 1 | 426-56-21980 | PLATE | 50042- | |
| 2 | 363-06-35410 | BOLT | 50042- | |
| 3 | \6\ | CAB | 50042- |
- Главная
- Каталог запчастей
- Колесные бульдозеры
- Wd900 3 s/n 50001 up
- Operator's compartment and control system
- Operator's cab (cab and front window lower plate)(#50042 )
Поиск по каталогу

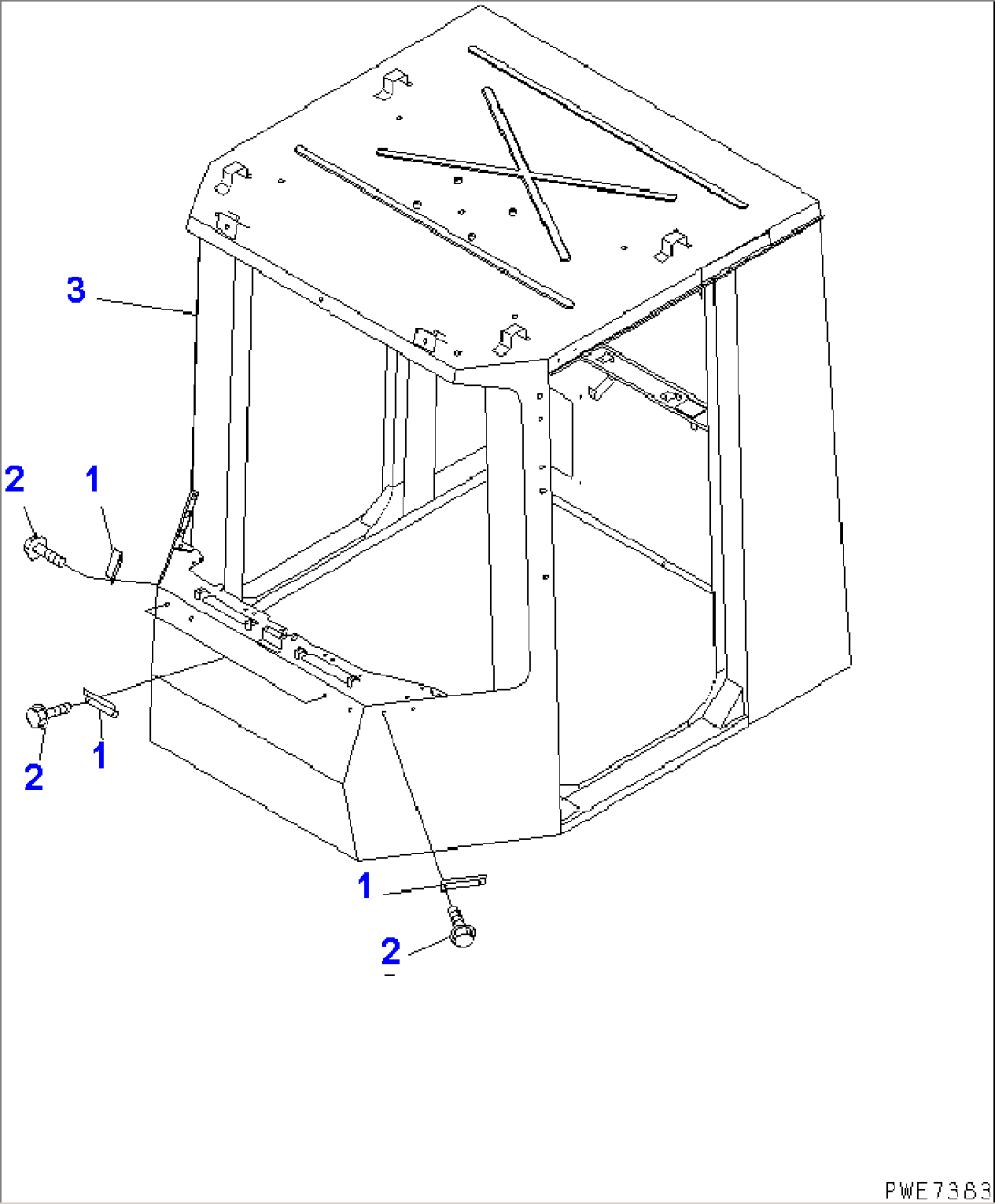

OPERATOR'S CAB (CAB AND FRONT WINDOW LOWER PLATE)(#50042-)
