| Item | Part No. | Part Name | Qty | Serial No. |
| (23B-952-6651) | CAB ASS'Y,(A+AB) | 51920- | ||
| \0\23B-952-6650 | CAB ASS'Y,(A+AB) | 51501-51919 | ||
| (23B-952-6661) | CAB ASS'Y,(A+AA+AB) | 51920- | ||
| \0\23B-952-6660 | CAB ASS'Y,(A+AA+AB) | 51501-51919 | ||
| (23B-952-6672) | CAB ASS'Y,(A+J+AB) | 51920- | ||
| \0\23B-952-6671 | CAB ASS'Y,(A+J+AB) | 51888-51919 | ||
| (23B-952-6670) | CAB ASS'Y,(A+J+AB) | 51501-51887 | ||
| (23B-952-6682) | CAB ASS'Y,(A+J+AA+AB) | 51920- | ||
| \0\23B-952-6681 | CAB ASS'Y,(A+J+AA+AB) | 51888-51919 | ||
| (23B-952-6680) | CAB ASS'Y,(A+J+AA+AB) | 51501-51887 | ||
| (23B-952-6382) | CAB ASS'Y,(D+AB) | 51920- | ||
| \0\23B-952-6381 | CAB ASS'Y,(D+AB) | 51888-51919 | ||
| (23B-952-6380) | CAB ASS'Y,(D+AB) | 51501-51887 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-20A0 AND K0210-24A8 | ||||
| A = AIR CONDITIONER | ||||
| D = KOMTRAX | ||||
| J = RADIO, CASSETTE | ||||
| AA=FRONT LOWER WIPER | ||||
| AB = LOW ROPS CAB | ||||

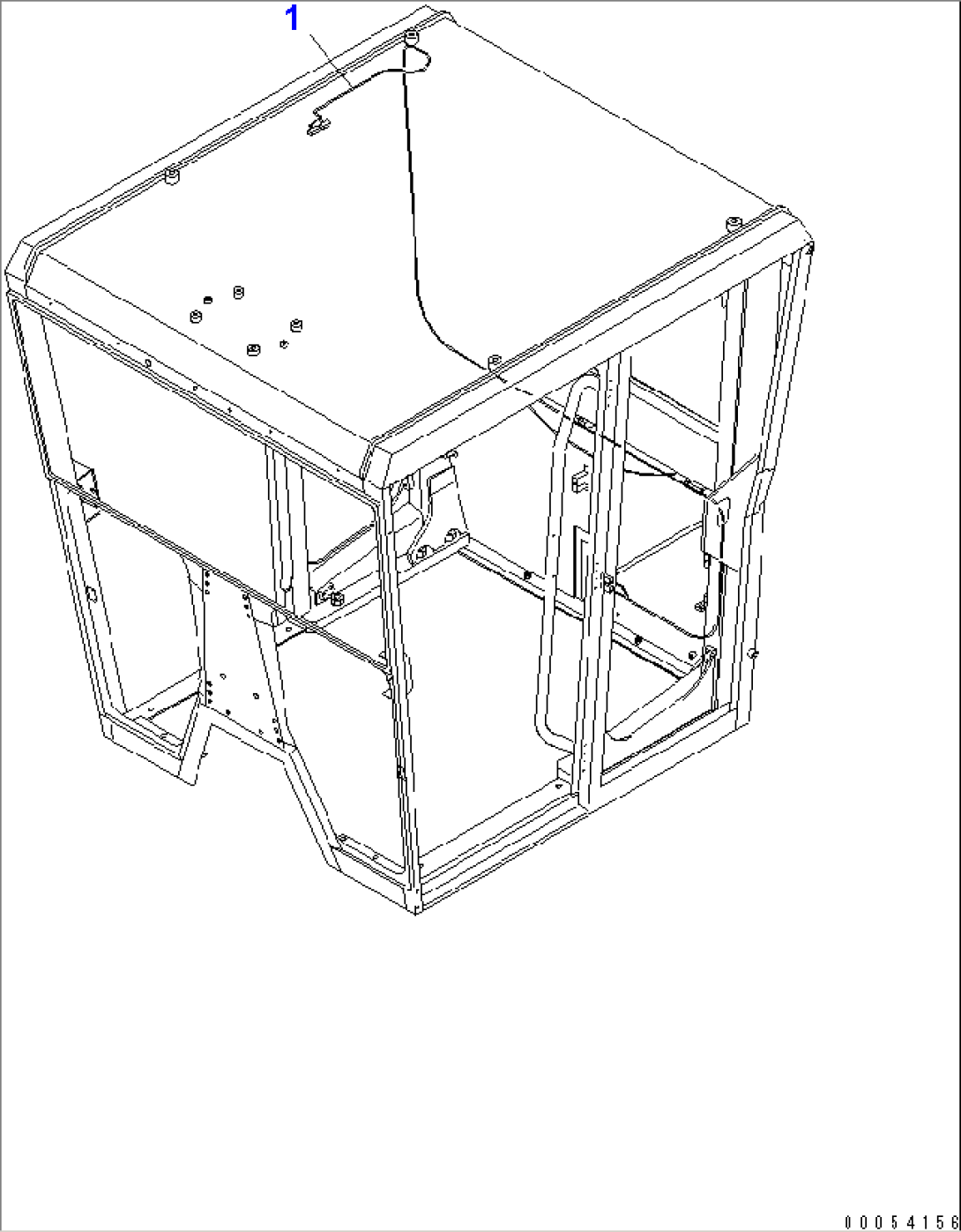

| 1 | 23B-07-63120 | WIRING HARNESS | 51501- |
